High temperature box furnace, a reliable partner for laboratory heat treatment

Time:2024-06-14 15:48

High temperature box furnace is a common heat treatment equipment in the laboratory, known as a reliable partner for laboratory heat treatment due to its high temperature stability, easy operation, and versatility. It is widely used in fields such as materials science, chemical engineering, physics, etc., for processes such as heating, annealing, sintering, melting, and heat treatment.

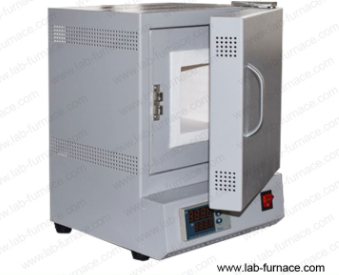

Mini high-temperature box furnaces commonly used in laboratories (click on the image to view product details)
Mini high-temperature box furnaces commonly used in laboratories (click on the image to view product details)

The principle and structure of high-temperature box furnace
The high-temperature box furnace mainly consists of the following parts:
Furnace body: usually made of high-temperature resistant materials (such as ceramic fibers or refractory bricks) to ensure uniform and stable temperature inside the furnace.
Heating element: located on the inner wall of the furnace, commonly used materials include resistance wires (such as crucible heaters) or silicon carbon rods, and suitable heating elements are selected according to different temperature requirements.
Temperature control system: including temperature sensors (such as thermocouples), temperature controllers, and control panels. Modern high-temperature box furnaces are usually equipped with precise PID temperature control systems to achieve precise temperature control.
Atmosphere control system: Some high-temperature box furnaces are equipped with atmosphere control devices, which can perform heat treatment in specific atmospheres (such as inert gas, oxygen, or vacuum) to prevent material oxidation or promote specific reactions.

Application instance:
Material synthesis and preparation: High temperature box furnaces are widely used for synthesizing new materials, such as ceramics, metal oxides, and high-temperature superconductors. By controlling temperature and time, materials with specific structures and properties can be obtained.
Annealing and sintering: In the processing of metal and ceramic materials, annealing and sintering are important heat treatment steps. Annealing can eliminate the internal stress of materials and improve their toughness; Sintering is used to densify materials, improving their strength and hardness.
Heat treatment research: used to study the phase transition behavior, diffusion mechanism, and microstructure changes of different materials under high temperature conditions. By precisely controlling temperature and atmosphere, industrial heat treatment processes can be simulated to optimize material properties.
Powder metallurgy: In powder metallurgy technology, high-temperature box furnaces are used for powder sintering and material densification to prepare metal components with complex shapes and excellent properties.

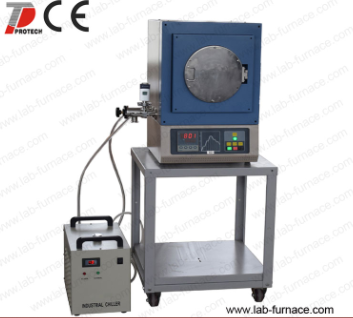

High foot high-temperature box furnace (click on the image to view product details)
High foot high-temperature box furnace (click on the image to view product details)

Advantage:
High temperature performance: High temperature box furnaces can reach very high temperatures (usually up to 1700 ° C or higher) and are suitable for various high-temperature heat treatment processes.
Temperature uniformity: The furnace structure is designed reasonably to ensure uniform temperature distribution inside the furnace and avoid uneven material properties caused by temperature differences during heat treatment.
Convenient operation: Modern high-temperature box furnaces are usually equipped with intelligent control systems, which are easy to operate, highly automated, and reduce the risk of manual intervention.
Multifunctionality: Suitable for various heat treatment processes, including heating, annealing, sintering, melting, etc., with a wide range of applications.

Customized box type high-temperature crucible furnace (click on the image to view product details)
Customized box type high-temperature crucible furnace (click on the image to view product details)

So, as a powerful partner in laboratory heat treatment, high-temperature box furnaces play an important role in material research and preparation. Its high-temperature performance, temperature uniformity, and ease of operation make it an important equipment in material science research and industrial applications. Through high-temperature box furnaces, researchers can precisely control the heat treatment process, explore the microstructure and performance changes of materials, and thus have better development in the field of materials science.Click to learn more Muffle furnace! Or click on online customer service to learn more about product information!
