The vertical structure of the tube furnace optimizes space utilization and experimental processes through vertical layout. Its core advantages, combined with practical application scenarios, can greatly improve experimental efficiency and safety. Let's take a detailed look below!

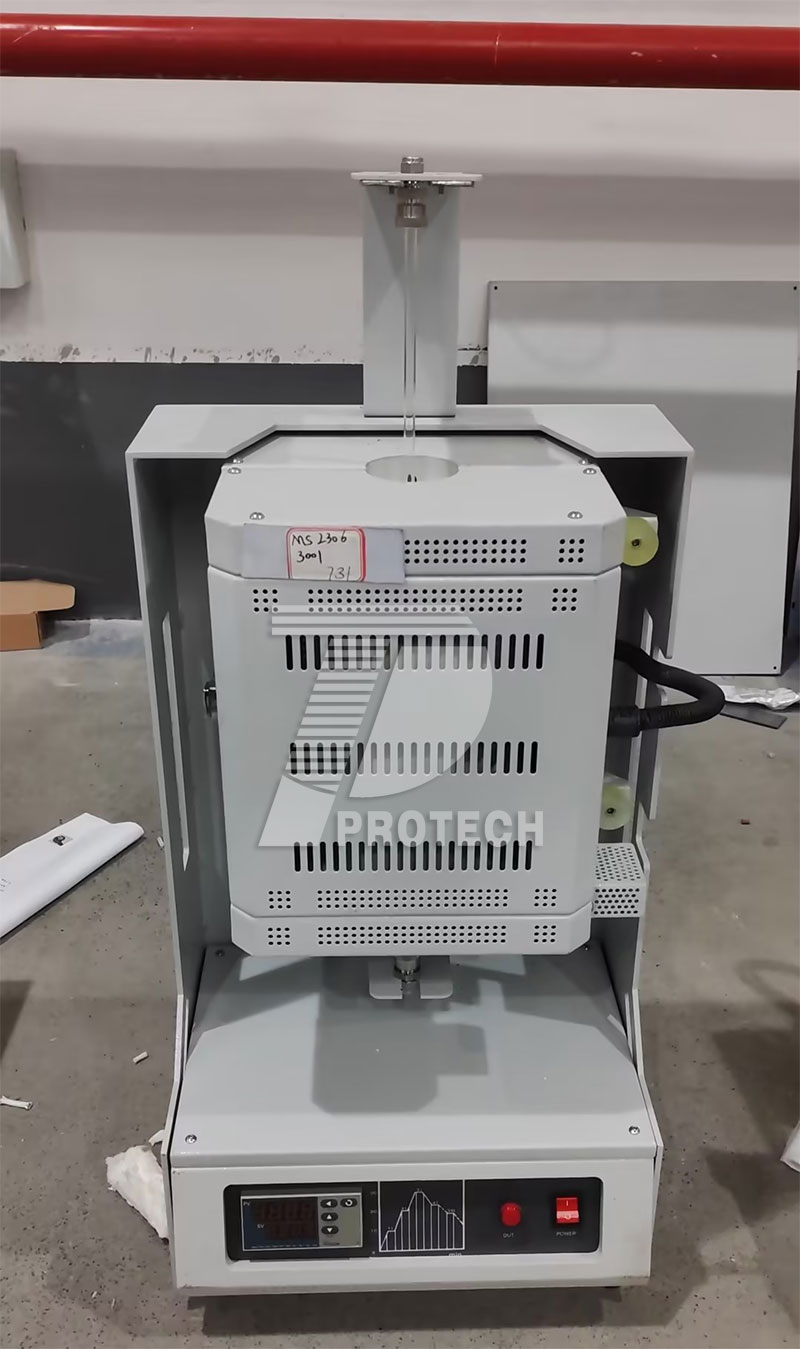

A commonly used small desktop mini vertical tube furnace (click on the image to view product details)

1. Vertical airflow design to improve thermal field uniformity
Natural convection optimization: The vertical structure utilizes gravity to create vertical circulation of gas within the furnace tube, reducing temperature fluctuations caused by horizontal airflow. For example, in the semiconductor annealing process, vertical airflow can ensure that the temperature difference on the wafer surface is controlled within ± 5 ℃, which is much better than the ± 10 ℃ for horizontal structures.
Reduce thermal convection interference: The vertical layout avoids the problem of heat accumulation at the bottom of the furnace tube, especially suitable for long-term high-temperature experiments (such as above 1200 ℃), which can reduce the risk of material cracking caused by thermal stress.

2. Compact space layout, saving laboratory resources
Reduced footprint: Compared to horizontal furnaces, vertical structures stack heating elements, furnace tubes, and control systems vertically, reducing the footprint by about one-third at the same power, making them suitable for clean rooms or small laboratories with limited space.
Strong modularity and scalability: The vertical furnace can easily stack long multi temperature zone furnace tubes, achieving multi temperature zone processing and higher thermal efficiency.

3. Vertical loading and unloading of materials to reduce operational risks
Reduce manual intervention: Samples are vertically loaded and unloaded through top or bottom lifting platforms to avoid the risk of collision caused by lateral pushing of horizontal furnaces. In high temperature environments (such as 1000 ℃), vertical operation can reduce the probability of operators being exposed to thermal radiation and increase safety by 40%.
Adaptive automation system: The vertical structure has stronger compatibility with automation equipment such as robotic arms and conveyor belts. For example, in photovoltaic cell production, it can achieve fully unmanned operation from wafer loading to annealing.

4. Vertical thermal radiation control to extend equipment lifespan
Reduce furnace tube deformation: The heating elements of the vertical furnace are vertically distributed, so that the heat radiation is evenly distributed around the circumference of the furnace tube, avoiding the problem of local overheating and deformation of the furnace tube caused by gravity in the horizontal furnace. Actual test data shows that the service life of vertical furnace tubes is longer than that of horizontal ones.
Reduce insulation layer loss: Vertical layout reduces the heat dissipation area of the furnace side wall, combined with multi-layer insulation structure, which can reduce standby energy consumption.

5. Adaptability to vertical experimental scenarios
Optimization of gravity sensitive experiments: In processes such as liquid deposition and melt crystallization where gravity has a significant impact, a vertical structure can ensure that the sample is in a stable vertical state. For example, in the preparation of perovskite solar cells, vertical deposition can reduce the film non-uniformity caused by solution flow.
Vertical gradient temperature control: By using layered heating elements, the vertical furnace can achieve temperature gradient control in the vertical direction inside the furnace (such as from top 1000 ℃ to bottom 600 ℃), which is suitable for special processes such as gradient annealing and hot pressing sintering.

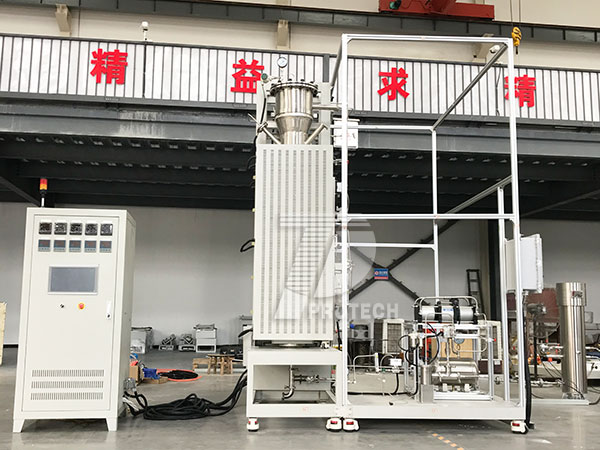

Large industrial vertical tube furnace (click on the picture to view product details)

Summary: The vertical tube furnace optimizes thermal field control, space utilization, and operational safety through vertical design, especially suitable for scenarios with high requirements for temperature uniformity, automation integration, and gravity sensitive processes. When choosing, it is necessary to comprehensively evaluate the experimental type (such as continuous production vs. R&D testing), sample size, and budget. Vertical structures are gradually becoming the main choice in the fields of manufacturing and scientific research.Click to learn more Vertical tube furnaces! Or click on online customer service to learn more about product information!
