The 1700 degree muffle furnace is an experimental equipment capable of material heat treatment in high temperature environments (up to 1800 ℃), widely used in universities, research institutes, laboratories, and industrial and mining enterprises. It is suitable for sintering, melting, annealing, forging, quality inspection and other processes in industries such as ceramics, metallurgy, electronics, glass, chemical engineering, refractory materials, and new material development.

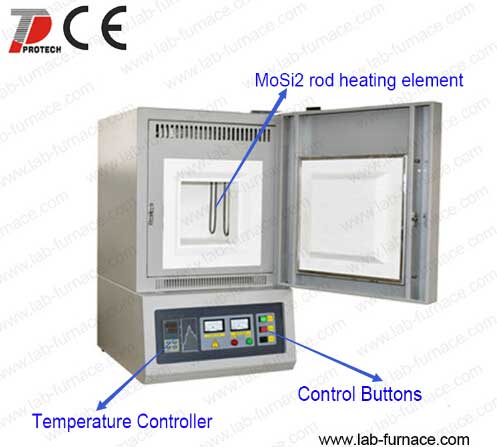

A commonly used small 1700 degree muffle furnace (click on the image to view product details)

1. Core Features
Better high-temperature performance
The maximum working temperature reaches 1700 ℃, and the continuous working temperature is usually 1600 ℃, meeting various high-temperature sintering requirements.
Adopting a new type of ceramic fiber furnace, the insulation effect is good. After heating to 1000 ℃ and maintaining it for 1 hour, the surface temperature of the shell is only 45-55 ℃ to avoid burns.

Accurate and stable temperature control
Configure a PID precision programmable temperature control system with a temperature control accuracy of ± 1 ℃, supporting multi-stage temperature control program settings to meet different process requirements.
The temperature sensor adopts B-type thermocouple (Platinum Rhodium 30-Platinum Rhodium 6), which has strong anti-interference ability and more accurate measurement.

High heating efficiency
The heating element is made of silicon molybdenum rod, which has better oxidation resistance and longer service life.
The furnace has good insulation performance and higher thermal efficiency.

Complete safety design
Equipped with overheat protection, thermocouple protection, and power-off function when opening the door, some models also have leakage protection measures.
The double-layer furnace shell structure is equipped with an air-cooled circulation system in the middle to reduce the shell temperature and improve operational safety.

Energy-saving and environmental protection
Ceramic fiber insulation material reduces thermal energy consumption, reduces weight by half compared to traditional muffle furnaces, heats up faster, and has better energy-saving effects.
The power supply can be adjusted according to the size of the furnace to meet different experimental needs.

2. Application Fields
Ceramic industry: ceramic sintering, melting, vitrification treatment.
Metallurgical industry: metal annealing, quenching, powder metallurgy sintering.
Electronics industry: semiconductor material heat treatment, electronic component manufacturing.
Materials Science: New Material Development, High Temperature Performance Testing.
Chemical industry: catalyst activation, high-temperature chemical reactions.
Environmental protection field: ash content determination, waste disposal.

Customized industrial 1700 degree trolley muffle furnace (click on the picture to view product details)

3. Purchase suggestions
Select volumes according to experimental requirements: 2L, 27L, 1000L and other models are suitable for different quantities, and non-standard products can be customized.
Pay attention to temperature control accuracy: High precision temperature control (± 1 ℃) is suitable for temperature sensitive experiments, such as semiconductor manufacturing.
Consider power configuration: Small capacity furnaces can choose 220V power supply, while large capacity furnaces require 380V three-phase power supply.
Safety function: Prioritize models with multiple protection devices (such as overheat protection and leakage protection).
Brand and after-sales service: Choose a brand with better reputation to ensure product quality and after-sales service.Click to learn more customized muffle furnaces! Or click on online customer service to learn more about product information!
