When choosing a rotary tube furnace for powder calcination, comprehensive considerations should be made from multiple aspects such as temperature range, heating elements, furnace tube and crucible materials, rotation function, sealing and atmosphere control, safety and operational convenience, customization requirements, brand and after-sales service. Let's take a detailed look from these aspects below!

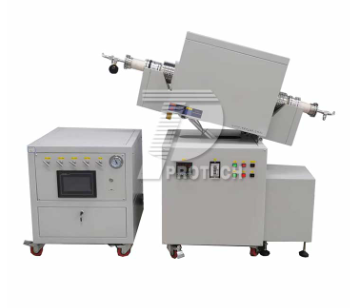

A commonly used rotary tube furnace with a temperature of up to 1700 ℃ (click on the image to view product details)

Temperature range and heating element
Temperature range: Determine the maximum calcination temperature required based on experimental or production needs. The maximum operating temperature of tube furnaces with different heating elements varies. For example, the maximum operating temperature of a tube furnace for resistance wire heating elements is generally around 1200 ℃, while for silicon carbide heating elements it can reach 1400 ℃, and for MoSi2 heating elements it can reach 1700 ℃.
Heating element: The type of heating element not only affects the maximum operating temperature, but also affects heating efficiency and stability. When choosing, it is necessary to select suitable heating elements based on the specific needs of the experiment or production.

Furnace tube and crucible material
Furnace tube material: The material of the furnace tube should match the highest calcination temperature. For example, quartz tubes are suitable for calcination below 1200 ℃, while corundum tubes can withstand higher temperatures up to 1700 ℃.
Crucible material: The material of the crucible also needs to be selected according to the calcination temperature. Quartz crucibles are suitable for temperatures below 1200 ℃, while alumina crucibles can withstand higher temperatures up to 1700 ℃. In addition, it is necessary to consider the chemical compatibility between the crucible and the sample to avoid reactions at high temperatures.

rotation function
Rotation mechanism: The rotating tube furnace uses a rotation mechanism to continuously roll and move materials inside the furnace, ensuring more uniform heating of the materials. This is important for powder calcination, as it can effectively avoid problems such as local overheating or uneven sintering.
Rotation speed and stability: Rotation speed and stability are also factors to consider when choosing a rotary tube furnace. A suitable rotation speed can ensure uniform heating of materials, while a stable rotation mechanism can prevent materials from splashing or being damaged during the rotation process.

Sealing and atmosphere control
Sealing performance: For experiments or production that require calcination in a specific atmosphere, the sealing performance of tube furnaces is crucial. Good sealing performance can prevent external gases from entering the furnace and affecting experimental or production results.
Atmosphere control system: Some high-end rotary tube furnaces are also equipped with atmosphere control systems, which can control the composition and flow rate of the atmosphere inside the furnace, meeting the experimental or production needs with high atmosphere requirements.

Safety and operational convenience
Safety protection measures: When choosing a rotary tube furnace, attention should be paid to whether its safety protection measures are complete. For example, whether it is equipped with touch screen control, remote control and other functions to reduce operational difficulty and improve work efficiency. At the same time, it is also necessary to consider whether the equipment has safety mechanisms such as overheating protection and overcurrent protection.
Convenience of operation: The ease of operation of the device is also a factor to consider when choosing. For example, whether the control interface of the device is friendly, easy to clean and maintain, etc.

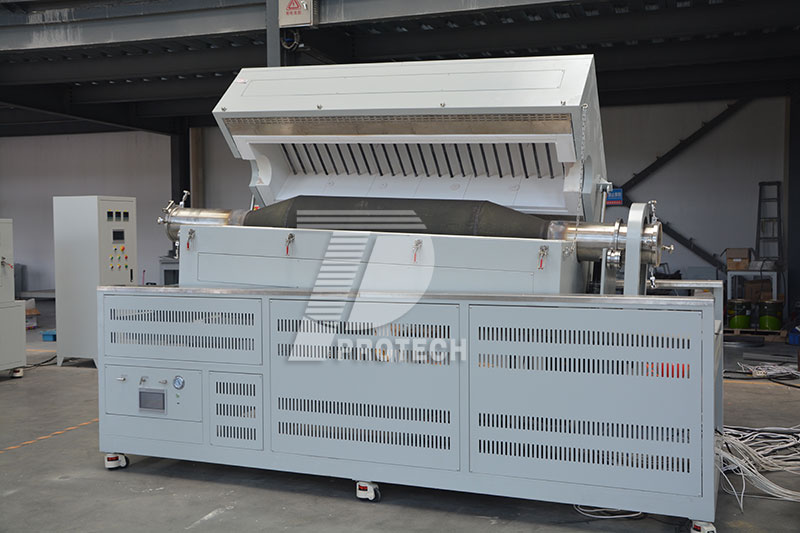

Large diameter production type powder calcination rotary tube furnace (click on the picture to view product details)

Customized requirements and brand after-sales service
Customization requirements: If there are special customization requirements for experiments or production, such as special furnace size, temperature range, atmosphere control system, etc., you can choose a rotary tube furnace manufacturer that can provide customized services.
Brand and after-sales service: Choosing a reputable brand and manufacturer to produce a rotary tube furnace can ensure the quality and stable and reliable performance of the equipment. At the same time, good after-sales service can ensure timely resolution of equipment problems encountered during use.Click to learn more powder calcination rotary tube furnaces! Or click on online customer service to learn more about product information!
