The lifting bell jar furnace, also commonly known as the bell jar lifting electric furnace, is a new type of intelligent heat treatment equipment that integrates high-temperature heating, convenient temperature control, controllable atmosphere, and easy operation. It is widely used in scientific research experiments, new material research and development, industrial mass production, and other scenarios. Compared to traditional box furnaces and tube furnaces, this equipment is better suited for high-temperature sintering, annealing, degreasing, brazing, and other processes of various ceramics, metals, and powder materials due to its bell jar lifting structure, uniform furnace temperature field, and flexible process adaptability. Below is a detailed breakdown of the core structural characteristics of the lifting bell jar furnace, and a comprehensive explanation of its mainstream application areas, helping users quickly understand the advantages and applicable scenarios of the equipment.

A commonly used lifting bell jar furnace (click on the image to view product details)

1. Core structural characteristics of the lifting bell jar furnace
The lifting bell jar furnace adopts a modular split structure design, consisting of six core modules: bell jar furnace body, intelligent lifting system, insulation furnace, temperature control system, gas path vacuum system, and safety protection system. Each module works together to balance equipment stability, process accuracy, and operational safety, and is the core guarantee for high-precision high-temperature heat treatment.
(1). Clock cover lifting structure, efficient and convenient loading and unloading of materials
The core feature of the equipment is the independent bell jar lifting design, equipped with hydraulic or electric mechanical lifting transmission system. The lifting process is smooth and uniform, without shaking or jamming, and can more accurately control the lifting height and speed. Different from the traditional fixed electric furnace's door opening and material retrieval mode, the bell jar can be lifted and opened as a whole, and the furnace bottom worktable is completely exposed, with a large operating space. Whether it is small experimental samples, irregular workpieces, or large-sized and large batch materials, they can be quickly loaded and unloaded, greatly reducing the difficulty of manual operation and improving experimental and production efficiency. At the same time, the closed bell jar structure has strong sealing performance after closure, laying a good foundation for vacuum and atmosphere heat treatment processes.
(2). High quality insulated furnace with strong high-temperature resistance and durability
The furnace is made of vacuum adsorption molding aluminum oxide polycrystalline fiber inorganic material or nano ceramic foam fiber material, with multi-layer composite insulation structure, which has the advantages of good insulation performance, high temperature resistance, high tensile strength, not easy to deform, not falling powder, and no volatile matter. This material has a very low coefficient of thermal expansion and can withstand high temperature conditions of 1200 ℃ -1600 ℃ for a long time, avoiding problems such as furnace collapse and cracking under high temperature. Its service life far exceeds that of ordinary refractory furnaces. At the same time, heating elements are evenly arranged on all four sides to ensure a uniform distribution of temperature field in the furnace, with minimal temperature difference control, effectively ensuring consistent heat treatment effect of the workpiece and eliminating local overheating and uneven sintering process problems.
(3). Intelligent touch screen temperature control system, more accurate and reproducible technology
The device is equipped with a full touch screen intelligent operation panel, which adopts artificial intelligence PID adjustment technology and self-tuning function. It supports editing and storing more than 30 segments of temperature rise and fall programs, and can freely set the heating, constant temperature, and cooling time periods, adapting to various complex heat treatment processes. All temperature control curves can be displayed in real-time, accessed with one click, stored, and support data export, without the need to repeatedly set parameters, making it easy to replicate mature experiments and mass production processes. High temperature control accuracy allows for more precise control of temperature changes inside the furnace, meeting the high standard temperature control requirements for new material research and precision workpiece processing. It has a high degree of automation and is easy to operate.
(4). Dual adaptation of vacuum and atmosphere, wide process compatibility
The lifting bell jar furnace is equipped with a multi-stage gas path system and vacuum unit, which can achieve high vacuum environment, air environment, as well as various inert and reducing atmosphere heat treatment operations such as nitrogen and argon. The enclosed furnace structure has good air tightness and can effectively isolate air, prevent high-temperature oxidation, decarburization, and discoloration of materials, and better solve the pain points of powder and precision metal parts that are prone to oxidation and agglomeration during heat treatment. It can be adapted to various complex processes such as degreasing, sintering, annealing, quenching, brazing, etc.
(5). Comprehensive security protection, supporting unmanned operation
The device is equipped with multiple safety protection mechanisms, including over temperature alarm, over temperature power-off, over temperature protection, thermocouple fracture protection, over-current and over-voltage protection, and other multiple protection functions. The device's operating status is monitored in real-time throughout the entire process. Once there is an abnormal temperature or equipment malfunction, it can automatically sound an alarm and cut off the power supply to eliminate safety hazards. The equipment has strong operational stability, low failure rate, supports long-term continuous operation and unmanned operation, and is suitable for laboratory normalization experiments and industrial mass production scenarios. At the same time, the furnace body adopts a double-layer air-cooled structure, with low surface temperature and safe and compliant use.
(6). Modular and customizable, suitable for multiple working conditions
The whole machine adopts modular assembly design, and the furnace size, maximum temperature, lifting mode, gas path configuration, vacuum parameters, and control functions can all be customized according to user process requirements. It can flexibly adapt to different working conditions such as small-scale scientific research experiments, pilot sampling, and industrial large-scale production, with strong adaptability.

2. Detailed explanation of the mainstream application areas of the lifting bell jar furnace
With many advantages such as high temperature resistance, more accurate temperature control, controllable atmosphere, wide adaptability, and safe operation, the lifting bell jar furnace has been widely used in various industries such as scientific research and education, new materials, electronics, ceramics, metal processing, new energy, and precision manufacturing. It is a commonly used equipment for high-precision high-temperature heat treatment.
(1). Research and laboratory fields in universities
It is the core experimental equipment for materials majors, research institutes, and testing institutions in universities, suitable for high-temperature sintering, annealing, and modification experiments of various new powder materials, ceramic materials, and metal composite materials. The equipment process can be more accurately controlled, data can be traced, and experimental repeatability is strong, which can meet the scientific research needs of new material development, project experiments, sample testing, process debugging, etc., providing a stable and reliable experimental environment for material performance research.
(2). Ceramic materials industry
Widely used for high-temperature sintering and annealing treatment of structural ceramics, functional ceramics, special ceramics, ceramic substrates, ceramic filters and other products. A uniform furnace temperature field can ensure that ceramic workpieces are sintered densely, with uniform phases, no cracking, and no color difference, effectively improving the hardness, density, and stability of ceramic products, and adapting to the processing and production of various high-precision ceramic products.
(3). Precision Metal and Mechanical Processing Industry
Can be used for vacuum annealing, stress relief, degreasing, and brazing of stainless steel, alloys, tungsten steel, titanium alloys, precision mechanical components, and irregular structural parts. Vacuum and inert atmosphere environments can effectively prevent high-temperature oxidation, deformation, and decarburization of metal workpieces, eliminate residual stresses in workpiece processing, improve the toughness, corrosion resistance, and dimensional stability of metal workpieces, and meet the high standard processing requirements of precision machinery, medical equipment, and aerospace components.
(4). Electronic and Magnetic Materials Industry
Suitable for atmosphere sintering and high-temperature degreasing processes of MLCC multilayer ceramic capacitors, LTCC/HTCC co fired ceramics, ferrite magnetic materials, and neodymium iron boron permanent magnetic materials. Accurate temperature and atmosphere control can effectively ensure the electromagnetic performance and structural stability of electronic components and magnetic materials, making it a key equipment for mass production and processing of electronic components and magnetic materials.
(5). New energy materials industry
Suitable for high-temperature pre firing, modification, and annealing of lithium battery positive and negative electrode materials, energy storage materials, and new energy powder materials. It can complete high-temperature processing of materials in a controlled atmosphere environment, effectively optimizing the electrochemical performance of new energy materials and assisting in the iterative research and mass production of new energy materials.
(6). Industrial precision heat treatment mass production
For industrial heat treatment scenarios of small and medium-sized workpieces, irregular workpieces, and bulk powder materials, the lifting bell jar furnace is convenient for loading and unloading materials, stable in operation, and can operate continuously. It can balance production efficiency and product qualification rate, replace traditional inefficient and rough process heat treatment equipment, and adapt to the production and processing needs of small and medium-sized industries.

3. Summary of Equipment Core Advantages
Overall, the lifting bell jar furnace has broken the pain points of traditional high-temperature furnaces, such as single process, cumbersome operation, and low yield, due to its six core advantages of convenient lifting and opening, uniform and stable temperature field, precise and intelligent temperature control, controllable atmosphere and vacuum, comprehensive safety protection, and support for non-standard customization. It not only meets the high-precision experimental needs of university scientific research, but also adapts to the efficient production needs of industrial mass production. Its universality, practicality, and stability are higher than similar heat treatment equipment, and it has become a commonly used equipment for high-temperature sintering, annealing, degreasing and other processes.

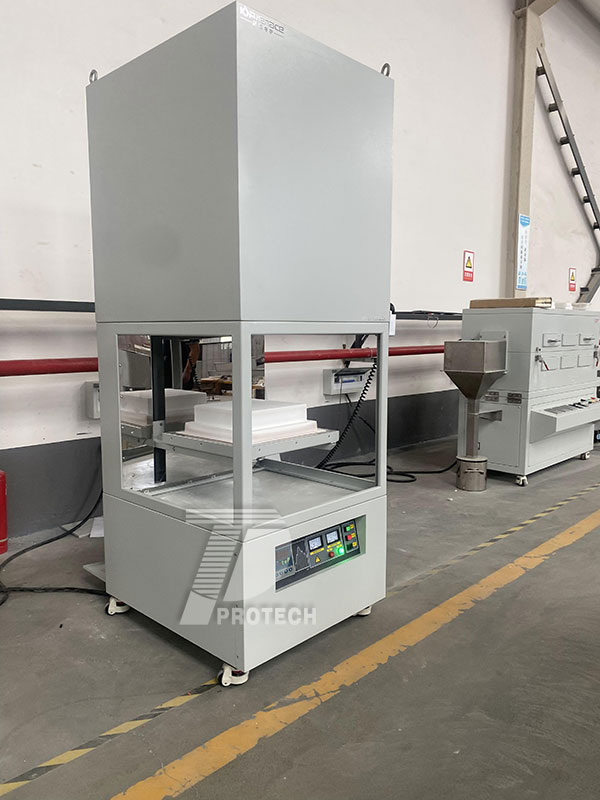

Customized lifting bell jar furnace (click on the picture to view product details)

4. Customization and Selection Instructions
At present, the lifting bell jar furnace on the market supports multi-dimensional non-standard customization, and can customize exclusive equipment solutions according to the user's required maximum temperature (1200 ℃ -1600 ℃), furnace size, vacuum degree, atmosphere type, production capacity, process program and other needs. Manufacturers can provide one-stop services for equipment design, production, installation, debugging, and after-sales service, while equipped with comprehensive technical guidance to help users quickly implement experiments and production processes. For selection, customization, and process consulting needs, you can call at any time to learn detailed parameters and solutions!Click to learn more customized muffle furnaces! Or click on online customer service to learn more about product information!
