Model:PT-A1300-16CZ

Description:PT-A1300-16CZ Series high temperature atmosphere furnace is mainly used in college laboratories, industrial and mining enterprise laboratories, for chemical analysis, physical measurement and sintering and dissolution of metals, ceramics etc., used in electronic components, powder metallurgy, magnetic materials.

Inquire Now

Introduction:

Product Introduction:

PT-A1300-16CZ Series high temperature atmosphere furnace is mainly used in college laboratories, industrial and mining enterprise laboratories, for chemical analysis, physical measurement and sintering and dissolution of metals, ceramics, etc., used in electronic components, powder metallurgy, magnetic materials, quartz materials and other products It can also be used for heat treatment of other materials etc. The furnace body adopts a double-layer furnace shell structure, high-performance heat insulation material, and is equipped with a cooling fan, so that the surface temperature of the furnace body is low, and the energy saving is 60% compared with ordinary furnaces. The furnace door and furnace top are sealed with high-temperature silicone rubber, which can be pre-evacuated and can be fed with various inert gases.Belongs to a type of atmosphere furnace.

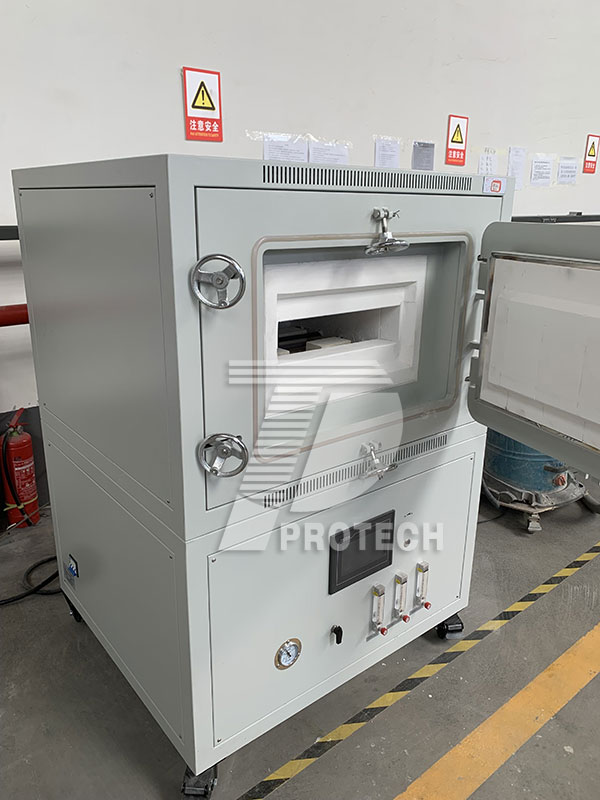

Actual photo of 1400 ℃ high-temperature atmosphere furnace

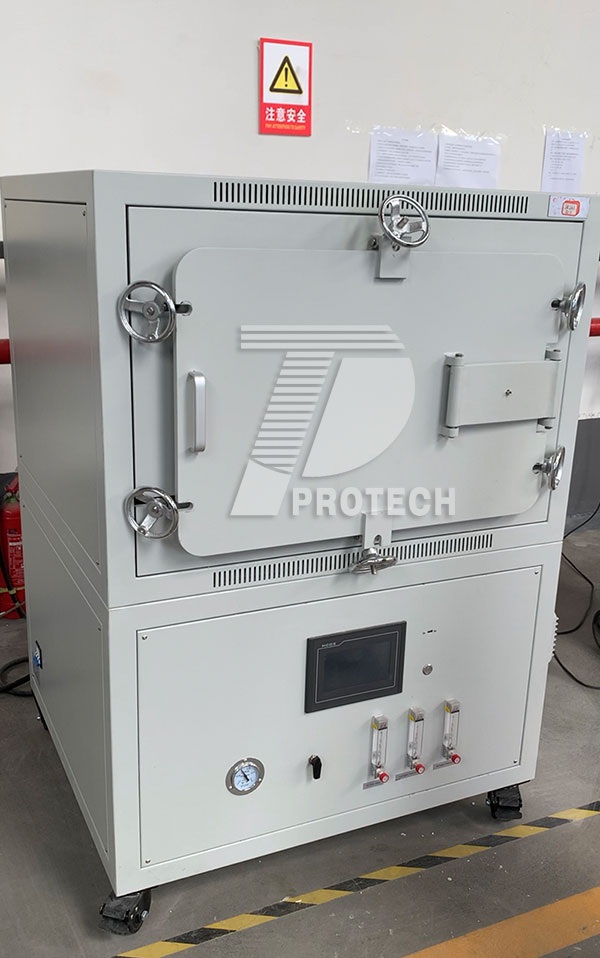

Actual photo of 1400 ℃ high-temperature atmosphere furnace




PT-A1300-16CZ Series high temperature atmosphere furnace adopts double-layer shell structure and intelligent program temperature control system, phase-shift trigger and thyristor control. The furnace is made of alumina polycrystalline fiber material. The double-layer furnace shell is equipped with an air-cooling system. It has the advantages of low surface temperature, fast temperature rises and fall rate, and energy saving.


Main technical requirements:

  1. Max Temperature: 1400℃
  2. Working Temperature: 1300℃
  3. Temperature Controller: 30-segment programmable PID intelligent control, phase-shift trigger.
  4. Chamber size: 400*100*400mm
  5. Furnace structure: double-layer shell with built-in air-cooling structure
  6. Temperature control protection: With over-temperature, thermocouple broken protection function
  7. Vacuum atmosphere: Nitrogen, Argon, Oxygen and other gases can be passed through, and it can be evacuated.
  8. Ultimate vacuum degree: -0.1MPa.
  9. Float flow meter: Nitrogen, Hydrogen& Air Gas(0.1-1L/min).


Actual photo of 1400 ℃ high-temperature atmosphere furnace
Actual photo of 1400 ℃ high-temperature atmosphere furnace


Main functions and features:

  1. The furnace adopts high-quality alumina polycrystalline fiber inorganic material formed by vacuum adsorption with Japanese technology, which has good thermal insulation performance, durability, high tensile strength, no foreign balls, high purity, and energy saving effect is obviously better than other fiber materials;
  2. The entire furnace body adopts a double-layer liner structure with an air gap in the middle. Even if the furnace temperature reaches the highest, the surface of the furnace body can still be safely touched without a burning feeling.
  3. The furnace is made of energy-saving materials, and the energy consumption of the whole machine is only 1/3 of the same traditional electric furnace, which is energy-saving and environmentally friendly.
  4. The furnace body is equipped with: output voltage and output current monitoring table, the heating state of the furnace is clear at a glance.
  5. Over-temperature alarm power-off function and leakage protection measures, safe and reliable operation.

Detail Specification:

Door Structure Side Door
Furnace structure Double layer steel casting with dual cooling fan
Display Touch Screen
Max. Temperature 1400℃
Continuous working Temperature ≤1300℃
Chamber Material Alumina fiber
Heating Rate Suggest 0-5℃/min
Accuracy ±1℃
Inside Chamber Size
(Width*Height*Depth)
400x100x400mm
Volume 16L
Heating Element SIC ROD
Thermocouple S Type

Temperature control

● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor.
● 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.
● Over temperature protection and alarm allows for operation without attendant.
Sealing system Furnace door use high temperature silicone rubber seal and seal valves
Gas system Gas inlet and outlet with shut off valve, can pass nitrogen and other gases to the furnace chamber;

Standard equipped with 3 float flow meters.


Working Voltage AC 220V, 50HZ, Three phases
Output Power 8KW
Vacuum Pump Pumping speed: 4L/s
Including the connection to the furnace.
Vacuum level: -0.1mpa
Warranty One-year limited warranty, provide life-time maintenance service. (Consumable parts such as heating elements and thermocouple are not covered by the warranty)
Certificate CE

Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
