High-temperature box-type atmosphere furnace

High-temperature box-type atmosphere furnace

Model:PT-A1700-80LZ

Description:The high-temperature box-type atmosphere furnace is a heat treatment process that can be applied to electronic components, new materials and powder materials under vacuum or atmosphere conditions.

Inquire Now

Introduction:
Product description:
The high-temperature box-type atmosphere furnace uses high-quality silicon-molybdenum rods as heating elements and an internal heating single-chamber structure. The aluminum oxide polycrystalline fiber material is used, which has good thermal insulation and energy saving effects. Double-layer air-cooled structure.Belongs to a type of atmosphere furnace.

Applications:
The high-temperature box-type atmosphere furnace is a heat treatment process that can be applied to electronic components, new materials and powder materials under vacuum or atmosphere conditions. It is also used in metallurgy, machinery, light industry, commodity inspection, colleges and universities and scientific research departments, industrial and mining enterprises for pre-sintering, sintering, brazing and other processes of electronic ceramic products.

Features:
1. The heating elements are evenly arranged on multiple sides to ensure that the work is heated evenly.
2. It is airtight, equipped with a vacuum pump to pre-evacuate and replace the gas.
3. There are air inlet and outlet ports, which can be used for air intake and exhaust according to process requirements.
4. Equipped with an audible and visual alarm device for over-temperature disconnection.
5. Optional digital display vacuum gauge can display the vacuum degree in the furnace in real time

Product parameters:
Product name High-temperature box-type atmosphere furnace
Model PT-A1700-80LZ
Material area size 400*400*500mm
heating element High quality silicon molybdenum rod
Temperature control method Intelligent multi-stage program temperature control
Working temperature ≤1600℃
extreme temperature 1700℃
Heating rate ≤10℃/min
thermocouple B type temperature measuring thermocouple
Ultimate vacuum -0.1MPA
Vacuum pump Various pumping speeds are optional
power supply 3-phase 380V power about 27KW
Other sizes available
Material area size(mm) volume (L) Material area size(mm) volume (L)
200*200*200 8 300*300*300 27
200*200*300 12 300*300*400 36
250*250*300 19 400*400*500 80
More sizes can be customized

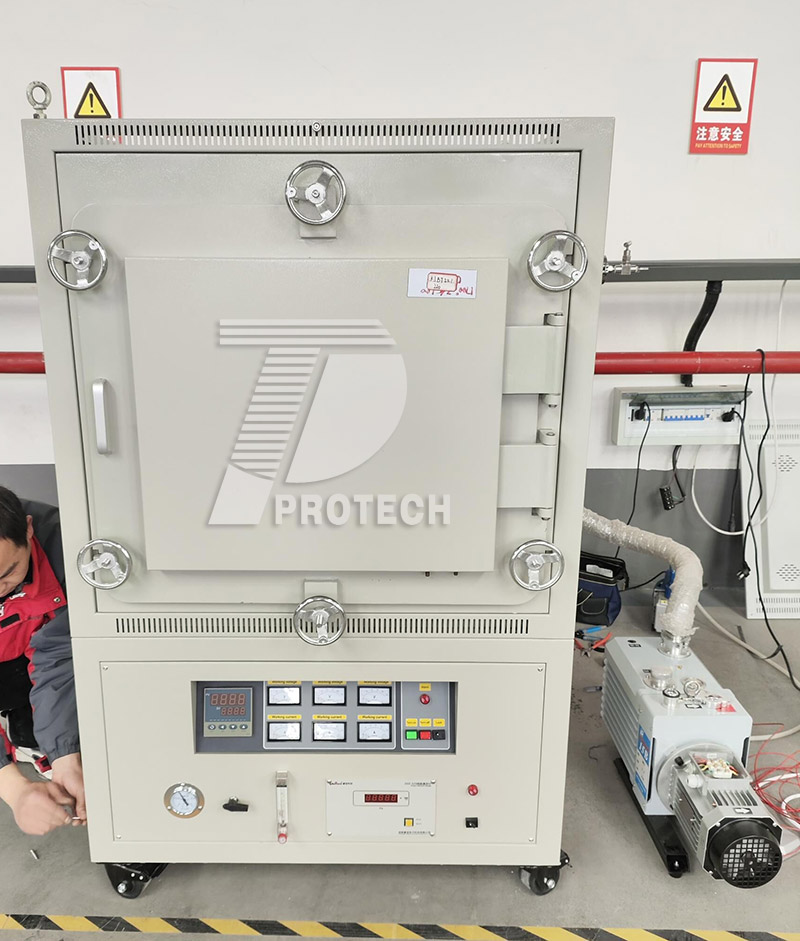

High-temperature box-type atmosphere furnace

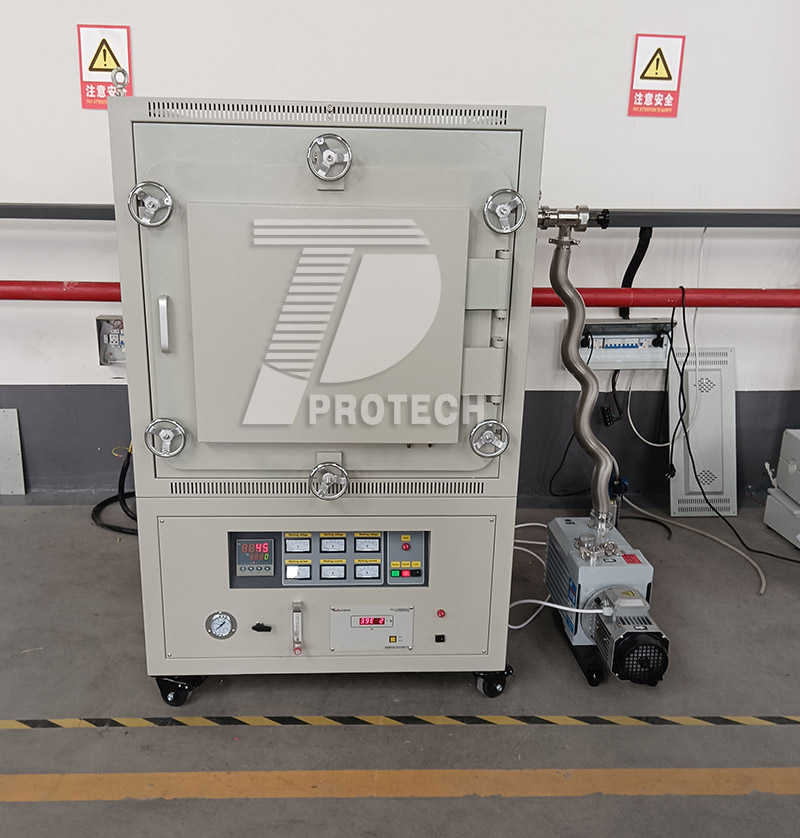

High-temperature box-type atmosphere furnace

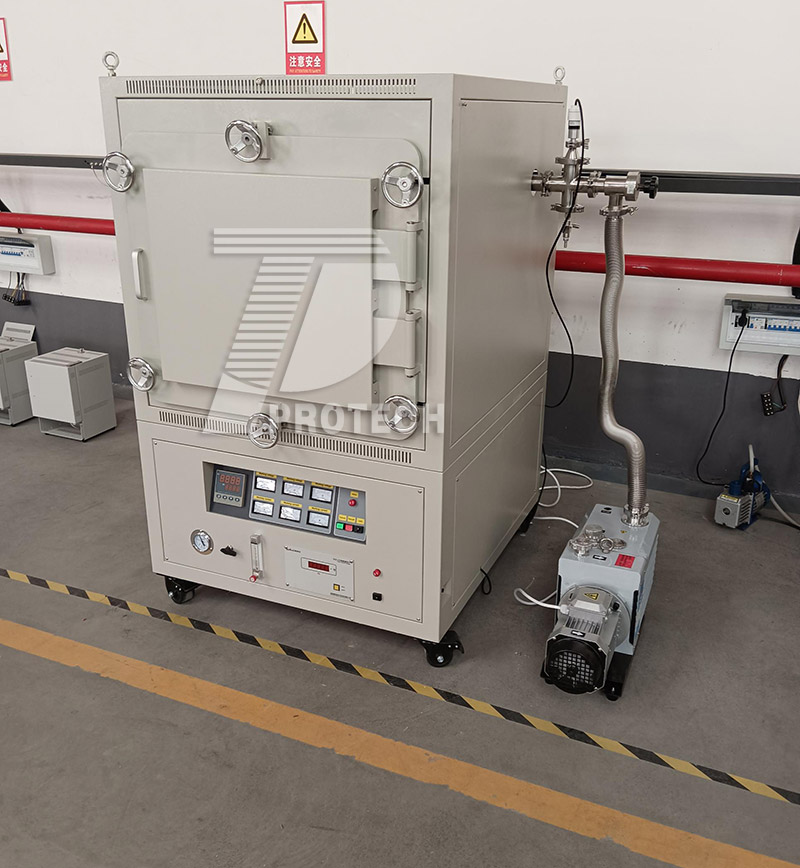

High-temperature box-type atmosphere furnace


Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
