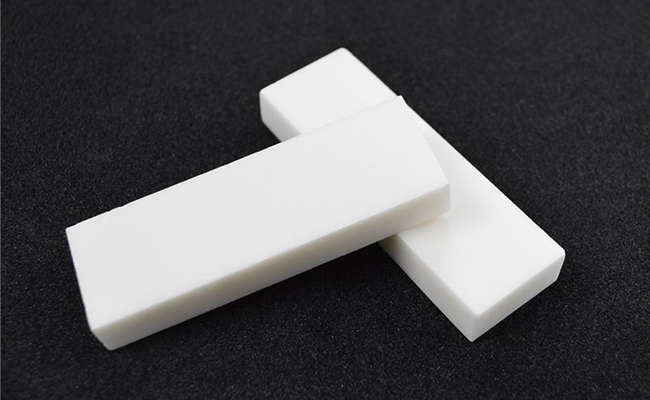

High temperature Sample plate

High temperature Sample plate

Model£º

Description£ºMainly used in electronic vacuum devices, Cruibles, insulation board, capacitors, aerospace, transportation, textile, Petro chemical, mining, pharmaceutical engineering, communications engineering, construction, etc..

Inquire Now

High temperature Sample plate
Properties:
1. High Temperature Up to 1700¡æ
2. High Voltage Resistance
3. High Mechanical Strength and Hardness
4. Excellent Insulation Performance
5. High Corrosion Resistance
6. Extremly Abrasion Resistance Performance
7. Wide Scope of Application



Technical Parameters

tem Unit Symbol 95% Alumina Ceramics 99% Alumina Ceramics 99.7% Alumina Ceramics
Maximum Using Temperature ¡æ 1600 1700 1700
Water Absorption % 0 0 0
Hardness Gpa ≥85 ≥89 ≥89
Flexural Strength MPa (psi x 103) 336 550 550
Compressive Strength MPa (psi x 103) 2000 2500 2500
Fracture Toughness Mpa  4~5 5.6 6
Thermal Conductivity W/m °K 18-25 30 30.4
Thermal Shock Resistance °C 220 180-220 180-220
Dielectricity Constant   9.4 9.8 9.8
Dielectric Strength kV/mm 16 22 22


 Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
