Short-term heating mini furnace

Short-term heating mini furnace

Model:PT-M600

Description:PT-M600 high temperature muffle furnace uses aludirome as heating element. Max. temperature inside furnace can be reached at 600℃ .

Inquire Now

Introduction:

Product Introduction:

PT-M600 high temperature muffle furnace uses aludirome as heating element. Max. temperature inside furnace can be reached at 600℃ . The furnace temperature profile can be set up by 30 segments and run automatically by the 518P type advanced temperature controller. The furnace has no door, it is specially designed for small part heat treatment.Click to learn more about Muffle furnace!

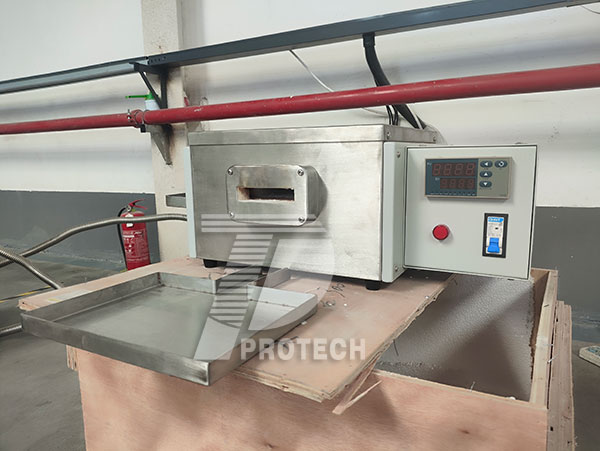

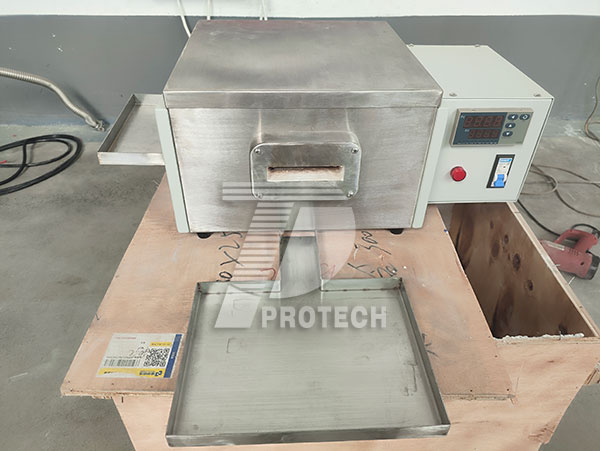

Short term heating mini fuse real-life photos
Short term heating mini fuse real-life photos


Technical parameters:

Model PT-M600
Display LED
Limiting Temperature 600℃
Usable Range ≤550℃
Heating Rate 0~20℃/min(suggest 0~10C/min)
Accuracy ±1℃(high temperature state)
Chamber size 90*20*180 mm(w*h*d)
Heating Element Resistance wire with Mo
Thermocouple K Type
Max. Power 0.5KW
Working Voltage AC 220V, single phase, 50 Hz
Temperature Control PID automatic control via SCR power control
Heating curves 30 steps programmable
Chamber material Alumina Fiber
Warranty One year limited warranty (Consumable parts such as heating elements are not covered by the warranty)

Short term heating mini fuse real-life photos
Short term heating mini fuse real-life photos

Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
