1200℃ six-sided heating box furnace

1200℃ six-sided heating box furnace


Description:The Six-sided heating box furnace is for Debinding, Presintering, Sintering etc.

Inquire Now


Product Introduction:

The 1200 ℃ six sided heating muffle furnace is mainly used for material degreasing, pre sintering, sintering, etc. The use of simultaneous heating on six surfaces improves heating efficiency and results in a more uniform temperature field.Click to view more models of electric muffle furnace!Or click to consult online customer service for more product details!

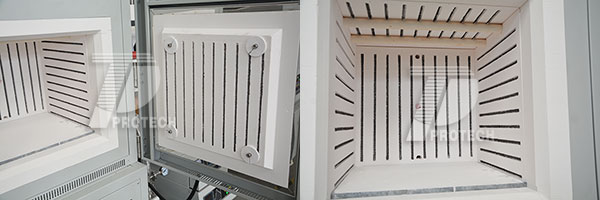

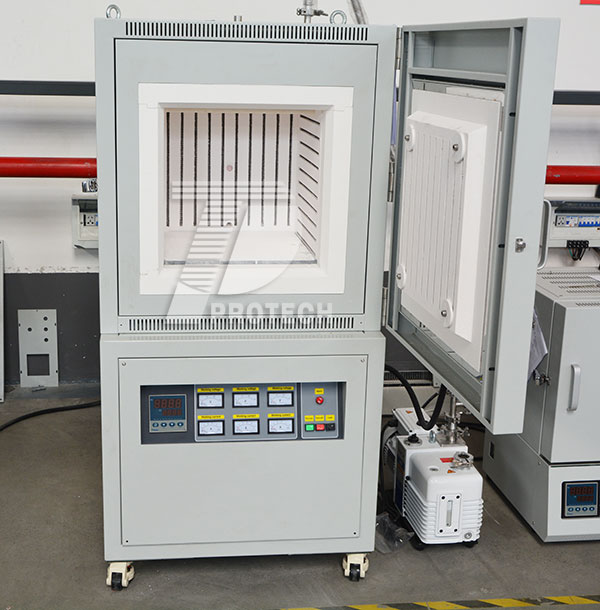

Actual photo of 1200 ℃ six sided heating box furnace
Actual photo of 1200 ℃ six sided heating box furnace

Product advantages:

1.Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
2.Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
3.PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
4.Power control with 30 segments programmable.

Technical parameters:

Furnace Shell Carbon Steel
Chamber Structure Side door
Display LED or LCD (LCD touch screen is with extra cost)
Max. Temp. 1200°C
Working Temperature ≤1100°C
Heating Rate Suggestion 0~10°C/min (Max. 20°C/min )
Temp. Control Accuracy ±1°C
Inside Chamber Size 400x400x400mm
Effective Volume 64 L
Heating Element Resistance wire
Thermocouple K Type
Max. Power 16KW
Working Voltage AC 380V single phase, 50Hz (or according to your requirements)
Temperature Control PID automatic control via SCR power control
Heating curves 30 steps programmable
Chamber material Alumina Fiber
Customized Function  Gas Port on the back side of furnace shell
One year limited warranty (Consumable parts such as heating elements are not covered by
the warranty)

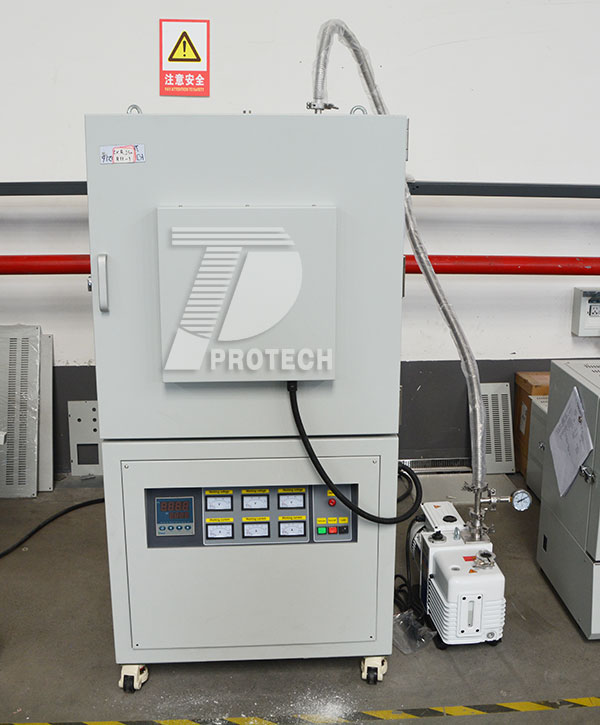

Actual photo of 1200 ℃ six sided heating box furnace
Actual photo of 1200 ℃ six sided heating box furnace

1200 ℃ six sided heating box furnace furnace
1200 ℃ six sided heating box furnace furnace
