Box type pyrolysis carbonization furnace

Box type pyrolysis carbonization furnace

Model:PT-MC1000-27LWQ

Description:Box type pyrolysis carbonization furnace mainly used for carbonization and pyrolysis of various substances. Biomass such as rice husk, straw, sawdust, coconut shell, hemp stalk, branch, bark, peanut shell, palm shell, etc.

Inquire Now

Introduction:
Product description:

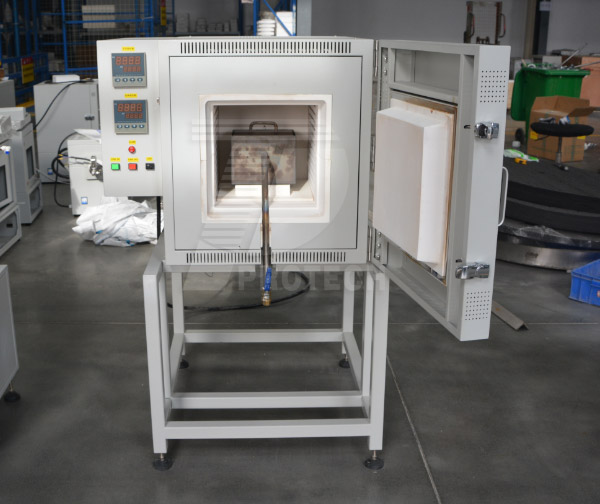

Box type pyrolysis carbonization furnace is a box type furnace composed of a heating system, a control system, and an air-inlet and air-out reactor with a horizontal side-opening double-layer air-cooled structure.

Product application:
1.Mainly used for carbonization and pyrolysis of various substances.
2.Biomass such as rice husk, straw, sawdust, coconut shell, hemp stalk, branch, bark, peanut shell, palm shell, etc.
3.Non-biological substances such as sludge, oil sludge, lignite, cloth strips, domestic waste, medical waste, etc.

Product features:
simple structure, advanced technology, reliable process, easy and safe operation, low operation and maintenance costs, long service life, etc.


Product name Box type pyrolysis carbonization furnace
Model PT-MC1000-27LWQ
Furnace structure Double-layer air-cooled structure, electrostatic spray
Furnace material High Purity Alumina
Max.temperature 1000℃
Temperature Control System Intelligent PID, 30-segment programmable temperature control
Heating rate 0~20 ℃/Minute
Temperature protection With over-temperature and broken couple alarm function
Chamber size 300*300*300mm
Heating element Resistance wire
Operating Voltage AC 220V/380V       50 Hz
power approx. 9KW
Temperature measuring element K-type thermocouple temperature measurement
Provide related accessories Customization includes 1 reaction kettle with inlet and outlet ports, 1 hexagonal wrench for flange, 1 hexagonal wrench for shell, and 1 instruction manual
Notice The use of dangerous gases and heating of dangerous materials is prohibited. If the process requires it, please install relevant safety devices by yourself
Other sizes available
Material area size(mm) Volume (L) Material area size(mm) Volume (L)
200*200*300 12 400*400*600 96
200*200*400 16 500*500*700 175
350*350*350 43 600*600*900 324
More sizes can be customized

Box type pyrolysis carbonization furnace

Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
