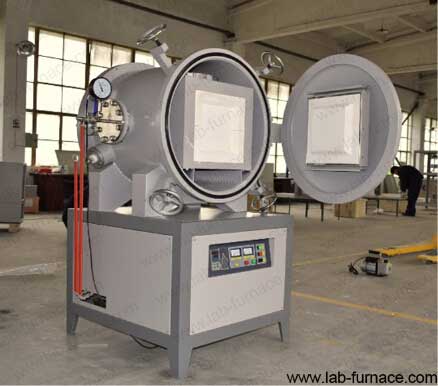

vacuum sintering furnace

vacuum sintering furnace

Model:PT-1700V

Description:vacuum sintering furnace is used for(steels, titanium, advanced ceramics).

Inquire Now

Introduction:
Features of vacuum sintering furnace:
1.Double layer steel casting to keep case temperature lower;
2.High purity fiber alumina board chamber for the best energy saving;
3.The temperature is controlled by precision SCR(Silicon Controlled Rectifier)
  with accuracy +/-1 C and 30 segments programmable control;
4.The fast rate of temperature increasing and decreasing.
5.The furnace chamber is ceramic fiber brick with excellent thermal
  insulation,vacuum  reservoir with water cooling system;
6.The furnace is equipped with the function of power off automatically when door furnace opening,function of over temperature alarm,etc.



We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!

Technical parameters of vacuum sintering furnace:
Model PT-1700V
Max. temperature 1700℃
Working temperature 1600℃
Temperature accuracy +/-1℃
Heating rate 0-20C/min
Dimension 200×200×300mm
Temperature control Digital 50 segments programmable
Max. vacuum level 7*10ˆ(-3)Pa
Heating element MoSi2
Refractory material Alumina ceramic fiber
Thermal couple B type
Rated power 5KW
Working voltage AC 110-480V  50-60Hz
Warranty 12 month (exclusive wearing part)
Vacuum sintering furnace can be customized according to customers’requirements.

Application of vacuum sintering furnace:
Vacuum sintering furnace is mainly used in sinter cemented carbides, stainless steel line molding, stainless steel fiber, magnetic materials,and ceramic materials,and it also can be used in power metallurgy, refractory metals and magnetic material industry.We can sinter super hard, alloy,tungsten, copper, tantalum,stainless steel and rare-earth permanent magnetic material. Since the heater symmetrical distribute along the vacuum chamber, and temperature uniformity is high,you can actualize semi-automatic and automatic control according to your demands.

Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
