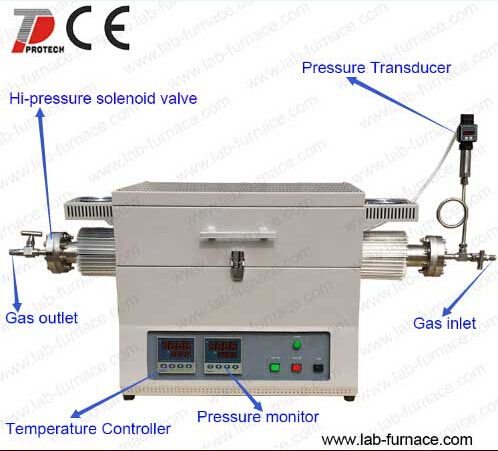

High temperature high pressure tube furnace

High temperature high pressure tube furnace


Description:High temperature high pressure tube furnaces can be chosen from two kinds of alloy tube, e.g. Stainless steel 310S refractory alloy or Ni based super alloy, which offer a solution of heating treatment under high positive pressure with/without inert gas support to process special compound material. The furnace can be heated up to max. 900°C or 1100°C with optional vessel. The operating positive pressure is from 2.0 Mpa to 15Mpa according to different heating temperature.

Inquire Now

Features of High temperature high pressure tube furnace :
1. Max pressure up to 800 PSI.depended on tube alloy.
2. Double layer steel casing with air cooling to keep furnace surface temperature lower than 60°C.
3. High purity fibrous alumina insulation for Max. energy saving.
4.PID automatic control with 30 steps programmable.
5.Automatic over-temperature and thermal broken protection.

We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!

Technical parameters of High temperature high pressure tube furnace

Working pressure vs. working temperature 1Mpa-1000°C
Hot zone ID 50mm *400mm
Limiting temperature <=1100℃
Heating element Fe-Cr-Al Alloy doped by Mo
Temperature control PID control method with over-temp protection
Temperature stability ±1°C
Working voltage AC 110-480V 50-60Hz
Rated power 4.5KW
Warranty 12 month (exclusive wearing part)
High temperature high pressure tube furnaces can be customized according to customers’requirements.

Transaction process

  After-sales Service

1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
