Large Multi station tubular furnace

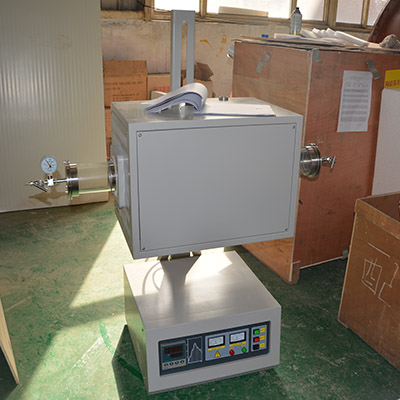

Large Multi station tubular furnace


Description:Multi station tubular furnace in the horizontal or vertical, and other work stations to meet the needs of different experiments, greatly improving its use.it can be passed the vacuum atmosphere.

Inquire Now

1.Features of Multi station tubular furnace:

(1). Operation Temperature: 1300℃ (1400℃ for short time).
(2). Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina
    fiber ceramic insulation.
(3). Heavy duty double layer structure. Lower teperature in outside case.
(4). PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
(5). Power control with 30 segments programmable.
(6). Can be rotated in 360° according to your requirement.
 Large Multi station tubular furnace

We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!

2.Descriptions of Multi station tubular furnace :
Chamber Size
Ø60x300mm (2.5"x12")
Working Temperature
1300℃ (continuous)
Maximum Temperature
1400℃ (for short time)
Temperature Control
30 steps programmable and PID automatic control
Heating Rate
0~15℃/min (suggestion: ≤10℃)
Temperature Accuracy
Heating Element
SIC Heaters
Work station Can be rotated in 360°
Working Voltage
AC 220V, Single Phase, 60/50 Hz (or according to your requirement)
Max. Power
2  KW
Net Weight
30 Kg
Multi station tubular furnace can be customized according to customers’requirements.

Transaction process

  After-sales Service

1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
