Double temperature zone high temperature rotary furnace

Double temperature zone high temperature rotary furnace

Model:PT-TX1600-L60LB2

Description:The high-temperature rotary furnace is heated by silicon-molybdenum rods with dual temperature zones. Each temperature zone can be controlled by a 30-segment program temperature control system, phase-shift trigger, silicon controlled rectifier control, th

Inquire Now

Introduction:
Product description:
The high-temperature rotary furnace is heated by silicon-molybdenum rods with dual temperature zones. Each temperature zone can be controlled by a 30-segment program temperature control system, phase-shift trigger, silicon controlled rectifier control, the furnace is made of alumina polycrystalline fiber material, the temperature field is balanced, and the double-layer furnace shell The room is equipped with an air-cooling system, which can quickly heat up; it is equipped with a sealed automatic feeder and a sealed receiving device. The furnace body can be tilted, and the furnace tube can be rotated 360 degrees.Belongs to a type of rotary tube furnace.
Applications:
This equipment is specially used to coat the conductive layer on the cathode material of lithium-ion batteries, and can also prepare si/c anode materials by CVD.
It can realize the coating and modification of powder materials by continuous CVD method.
Features:
The furnace tube can be placed and the furnace body can be tilted.
It can automatically quantitatively load materials into the furnace tube under the atmosphere protection environment
It can collect materials by itself under the atmosphere protection environment
Accurate temperature control, fast heating speed and high work efficiency.
It can be vacuumed and shielded gas can also be passed.
It can be used as special equipment or general equipment.

Technical parameters:


Product name high temperature rotary furnace
Model PT-TX1600-L60LB2
shell structure Double-layer shell. Equipped with air cooling system
Furnace tube material Corundum tube (rounded at both ends)
Temperature zone length Dual temperature zones, the total length of the temperature zone is 400mm
Working temperature The temperature is not higher than 1500°C under continuous operation; the maximum temperature: 1600°C
Temperature control method Using PID controller, intelligent 30-segment programmable control
Super high temperature alarm Super high temperature alarm
Marriage Reminder There is a reminder
chamber material  High Purity Alumina Refractory Fiber
Heating rate 0--10℃/min(1000°C or higher recommended ≤5°C/min)
Heating element High quality silicon molybdenum rod
Temperature measuring element B type thermocouple
Operating Voltage 220V     50HZ
tiltable angle 0-10 degrees adjustable, the angle can be displayed through the digital display inclinometer
Furnace tube speed Up to 10 revolutions per minute (adjustable speed and direction of rotation)
In and out Sealed inlet and outlet, adjustable feeding speed
Mobile box The lower box of the equipment is a movable box, which can also be used as a material rack, and the furnace is easy to move as a whole.
other sizes available
Heating zone size(mm) Heating zone size(mm)
Φ50×300 Φ50×400
Φ60×300 Φ60×400
Φ80×300 Φ80×400

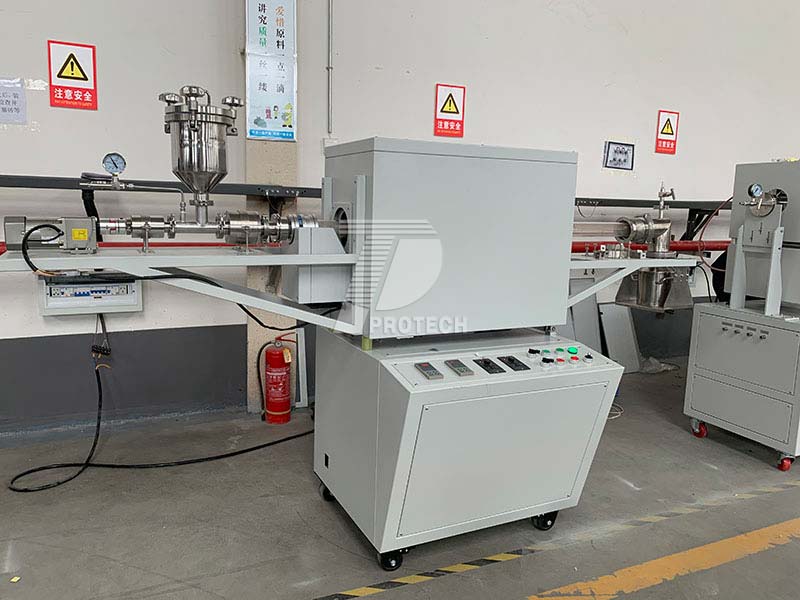

Double temperature zone high temperature rotary furnace

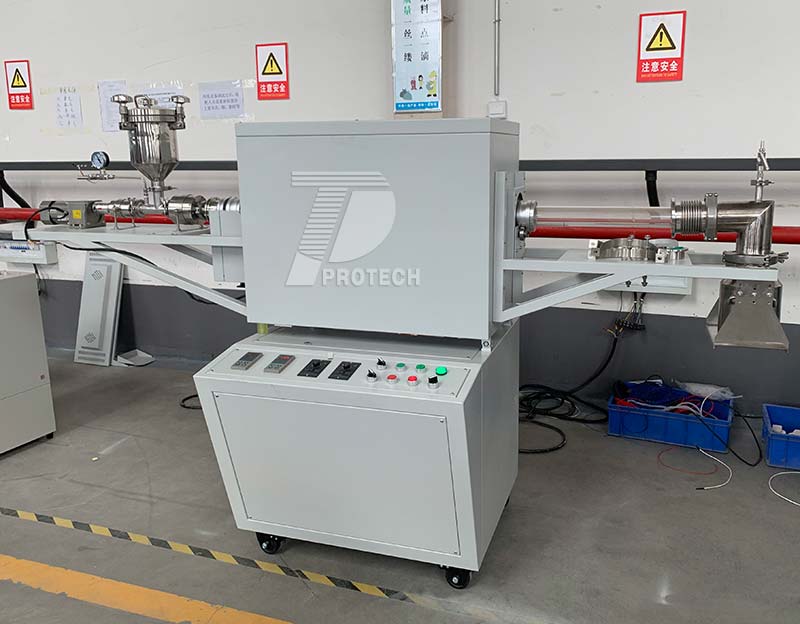

Double temperature zone high temperature rotary furnace

Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
