Model:PT-TX1100-S150LK3W

Description:The PT-TX1100-S150LK3W customized rotary tube furnace consists of a heating system, vacuum system, control system, and gas supply system. It adopts three temperature zones for independent control heating, with multiple temperature control systems for each zone, phase shift triggering, and thyristor control.

Inquire Now

Introduction:

Product Introduction:

The PT-TX1100-S150LK3W customized rotary tube furnace consists of a heating system, vacuum system, control system, and gas supply system. It adopts three temperature zones for independent control heating, with multiple temperature control systems for each zone, phase shift triggering, and thyristor control. The furnace body is a double shell air-cooled structure, with an upper opening for easy cooling and heat dissipation, as well as the replacement of furnace tubes. It has a tilting function (convenient for material entry and exit).Belongs to a type of Rotary tube furnace.

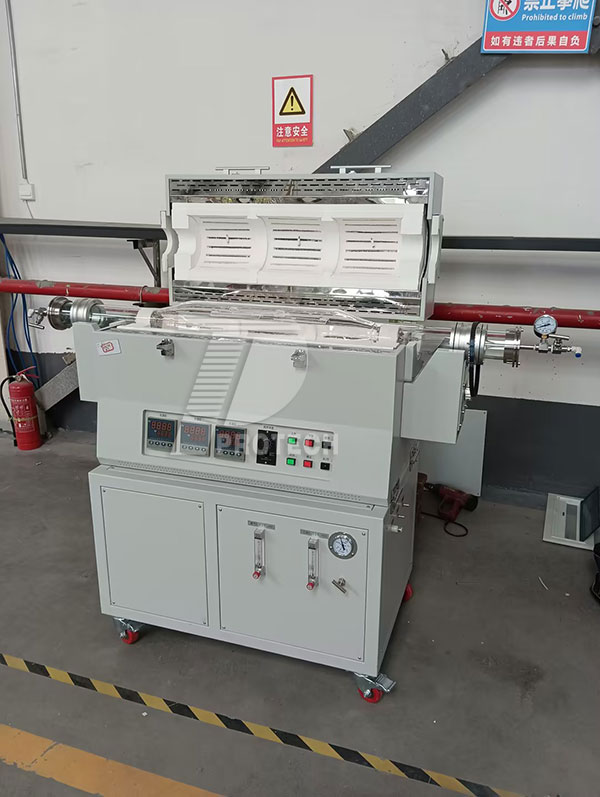

Customized 1200 degree rotary tube furnace
Customized 1200 degree rotary tube furnace

The furnace tube adopts high-purity quartz tube, with good sealing and corrosion resistance, and is equipped with a mechanical pressure gauge. It has forward and reverse rotation functions and adjustable speed. An internal lifting plate can be installed to evenly heat the material.


Application:

The furnace is made of alumina polycrystalline fiber material, heated by high-quality resistance wire, arranged in a circular shape with a balanced temperature field, and equipped with an air cooling system between the double layer furnace shells.


Technical parameters:

Customized 1200 degree rotary tube furnace
Model PT-TX1100-S150LK3W
Shell structure double-layer shell, equipped with an air cooling system
Furnace tube size outer diameter 80-150-80 * length approximately 1500mm (subject to actual needs)
Furnace tube High purity customized quartz tube, containing a lifting plate
Sealing structure Customized sealing structure, which can achieve sealing when the furnace tube rotates
Working temperature The temperature shall not exceed 1100 ℃ under continuous operation; Extreme temperature: 1200 ℃
Temperature control method Adopting intelligent 30 segment programmable control
Furnace material High purity alumina refractory fiber
Heating rate 0--10℃/min
Working voltage 380V 50HZ
Tilt angle 0-15° (adjustable)
Furnace tube speed 0-5r/min(adjustable)
Warranty One year warranty period (consumables such as quartz tubes are not covered by the warranty)

Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
