Model：PT-TX1300-M120LK3
Description：The inlet and outlet hoppers of the three temperature zone rotating tube furnace made of PTFE material have strong stability and will not react with the material. The feeding adopts a spiral feeder, which can rotate with the motor and move the sample forward, so it can continuously process the sample. At the same time, the furnace tube speed can be adjusted, and users can adjust the residence time of the sample in the heating zone.
The PTFE hopper three temperature zone rotary tube furnace is separately controlled by three independent temperature control systems. By adjusting the temperature of each temperature zone, a longer constant temperature zone can be formed in the heating zone. Each temperature control system adopts PID regulation, which can set 30 temperature rise and fall programs. The temperature control accuracy can reach+/-1 ℃, and the highest temperature in the furnace can reach 1300 ℃. The inlet and outlet hoppers of this rotary furnace are made of PTFE material, which has strong stability and will not react with the material. The feeding adopts a spiral feeder, which can rotate with the motor and move the sample forward, so it can continuously process the sample. At the same time, the furnace tube speed can be adjusted, and users can adjust the residence time of the sample in the heating zone. Having multiple temperature zones, click to view more multi zone tube furnaces or click to view more rotary tube furnaces. Click to consult online customer service for more product information!

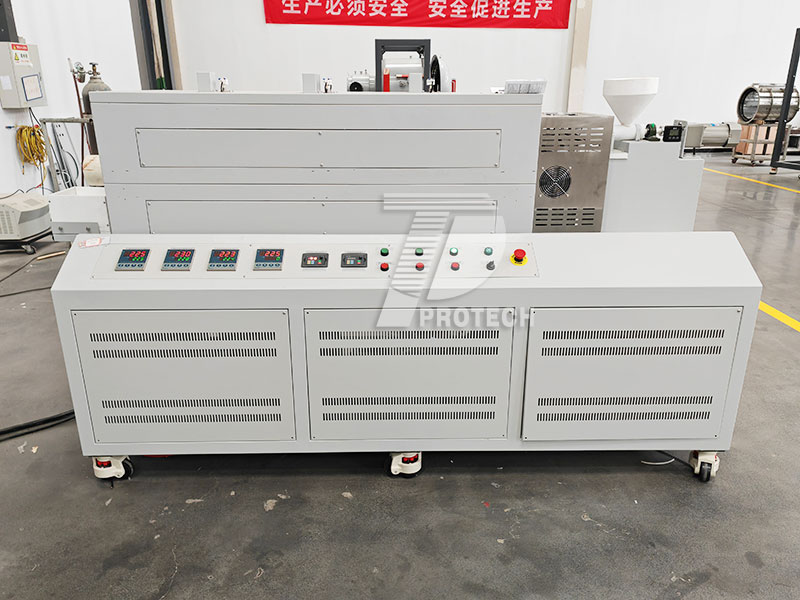

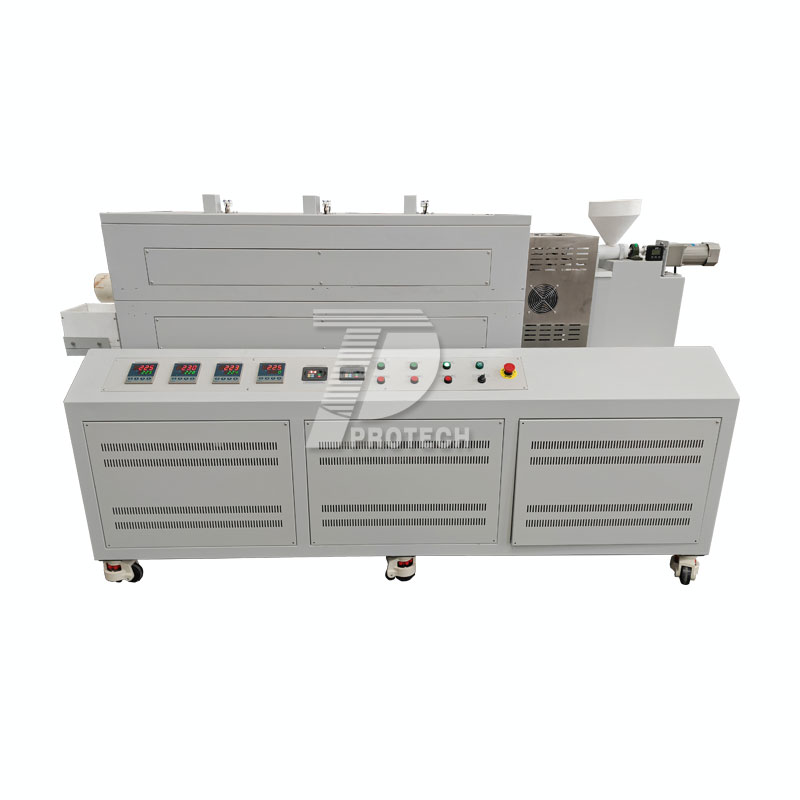

Actual photo of the rotating tube furnace with three temperature zones for the special material hopper
1. Three temperature zone independent control heating: Adopting three temperature zone independent control heating, each zone has a multi-stage program temperature control system, phase shift triggering, and thyristor control.
2. Continuous feeding and discharging: The feeding adopts a spiral feeder, which can rotate with the operation of the motor and move the sample forward, so it can continuously process the sample.
3. Rotating furnace tube: The furnace body can be tilted, and the furnace tube can be rotated forward or backward with adjustable speed, allowing the material to be dynamically heated, resulting in more uniform heating and sufficient contact with the required gas for reaction.
4. Overtemperature protection and alarm: It has over temperature protection and alarm, as well as overheat and thermocouple fracture protection functions, allowing operation without human supervision.
5. Teflon material hopper: Both the feeding hopper and the discharging hopper are made of Teflon, which has strong stability and will not react with the sample.
6. Customization on demand: More specifications of furnace types can be customized according to individual needs.
| Model | PT-TX1300-M120LK3 | |||||
 Temperature controller(UL) |
Display | LED | ||||
| Temperature control*3+over temperature protection*1 | ||||||
| Max. Working Temperature | 1300℃ | |||||
| Heating Rate | Suggest 0~10℃/min | |||||
| Tube | Material | Mullite | ||||
| Diameter | OD120mm(Can be customized according to customer needs) | |||||
| ID:100mm(Can be customized according to customer needs) | ||||||
| Length | 1850mm(Can be customized according to customer needs) | |||||

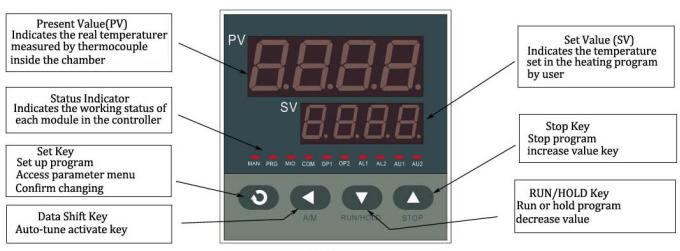

Temperature control |
● 30 programmable segments for precise control of heating rate, cooling rate and dwell time. ● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. ● Over temperature protection and alarm allows for operation without attendant. |
|||||
| Heated Zone Length | 1200mm(400+400+400mm)(Can be customized according to customer needs) | |||||
| Uniform temperature zone | 800mm(Can be customized according to customer needs) | |||||
| Number of Heated Zones | 3(Can be customized according to customer needs) | |||||
| Rotary Speed | Max. | 10RPM | ||||
| Min. | 5RPM | |||||
| Max Angle of Inclination | 6° | |||||
| Heating Element | SiC rods | |||||
| Temperature measurement | Thermal Couple |
S type*3 (one for each of the three temperature zones) |
||||
|
Extra Thermal couple (For over temperature measurement) |
S type*1 (located in the middle of the three temperature zones ) |
|||||
| Feed Hopper | Capacity | 5L | ||||
| Material | Teflon | |||||
| Discharge Hopper | Capacity | 5L | ||||
| Material | Teflon | |||||
| Feeding mode | Spiral feeding | |||||
| Chamber Material | High purity ceramic fiber | |||||

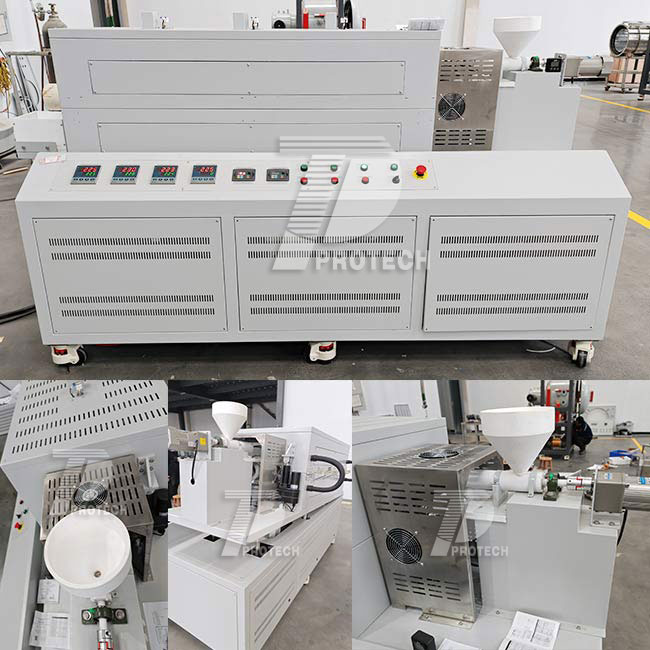

Actual photo of the rotating tube furnace with three temperature zones for the special material hopper

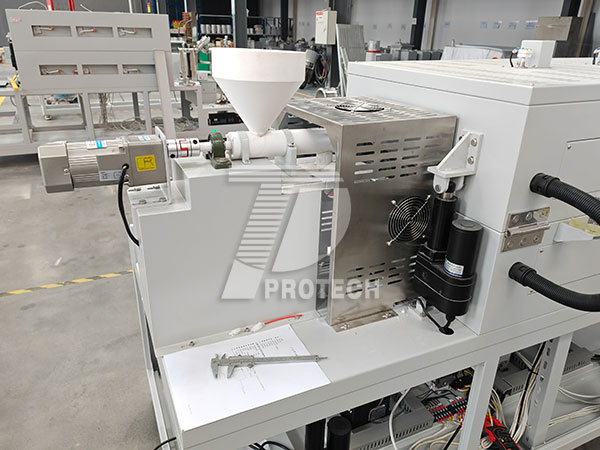

Special material hopper

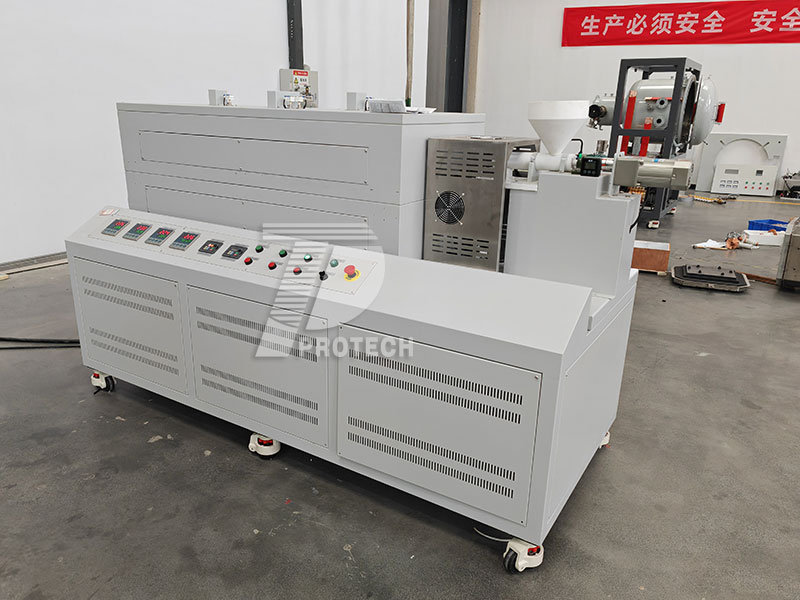

Actual photo of the rotating tube furnace with three temperature zones for the special material hopper
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
