Model：PT-TX750-H426LK6W
Description：The PT-TX750-H426LK6W continuous feeding and discharging multi temperature zone large diameter rotary furnace is suitable for the calcination process of magnetic materials, nanomaterials, and other powders, particles, and block materials.
The PT-TX750-H426LK6W continuous feeding and discharging multi temperature zone large diameter rotary furnace is suitable for the calcination process of magnetic materials, nanomaterials, and other powders, particles, and block materials. The system consists of a feeding hopper, a feeding screw, a rotating furnace body, and a discharging hopper. The working temperature of the kiln can reach 750 ℃. The temperature control system adopts artificial intelligence regulation technology, with PID regulation and self-tuning functions, and has 30 temperature rise and fall programs. This continuous metal sintering furnace is made of special alloy steel material, which has the characteristics of temperature resistance, corrosion resistance, wear resistance, compact structure, high atmosphere control accuracy, simple operation and easy maintenance. Click to view more rotary tube furnaces!

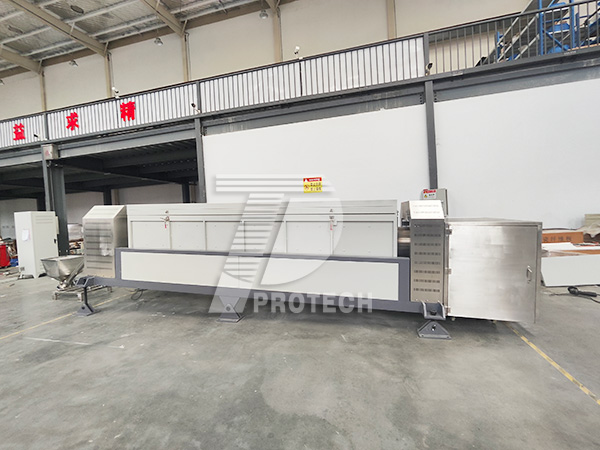

Actual photo of a large diameter rotary furnace with multiple temperature zones for continuous feeding and discharging
1. Good heating uniformity: The rotating motion of the furnace tube continuously flips and mixes the materials inside the furnace, avoiding the problems of material accumulation and local overheating, ensuring uniform heating of the materials, and thus improving the consistency and stability of product quality.
2. Wide applicability: It can handle various forms of materials, such as powders, particles, block solids, etc., and is suitable for heating, sintering, synthesis and other processes of various materials, including ceramics, metals, semiconductors, catalysts and other material fields.
3. Intelligent temperature control system: PID automatic control, thyristor regulation, can accurately control the temperature inside the furnace, achieve stable heating process, improve heating quality, and ensure the reliability and repeatability of product performance.
4. Comprehensive safety protection devices: equipped with over temperature alarm devices, electric heating elements equipped with ammeters, voltmeters, with power interlock protection and safety grounding measures, with overload, short circuit and other protection measures.
5. Strong customizability: Based on different material characteristics, processing requirements, and production scale, parameters such as furnace size, furnace tube material, and number of temperature zones can be customized. Different atmosphere systems can also be configured to meet specific process requirements.
6. High production efficiency: The continuous feeding and discharging system realizes the continuous supply and processing of materials, without the need for manual or mechanical intermittent feeding and discharging operations, greatly reducing downtime during the heating process and improving overall production efficiency.
| Feeding Hopper | Hopper Material | Stainless steel |
|
Rotary Furnace |
Door Structure | Electrically split-able door design |
| Furnace structure | Double layer steel casting with dual cooling fan | |
| Display | LED display | |
| Working Temperature | 750℃ | |
| Tube Material | High quality stainless steel tube | |
| Tube Diameter | 426mm(OD)(Can be customized according to customer needs) | |
| Hot Zone Length |
3600mm (Can be customized according to customer needs) |
|
| Heating Rate | 0-10℃/min | |
| Accuracy | ±1℃ | |
| Thermocouple | N Type (Each zone has independent thermocouple) | |
| Temperature control |
● 30 programmable segments for precise control of heating rate, cooling rate and dwell time. ● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. ●Over temperature protection and alarm allows for operation without attendant. |
|
| Sealing Mode | Relatively sealed | |
| Discharge Hopper | Material | Stainless Steel |
| Warranty | One-year limited warranty, provide life-time maintenance service. (Consumable parts are not covered by the warranty) | |

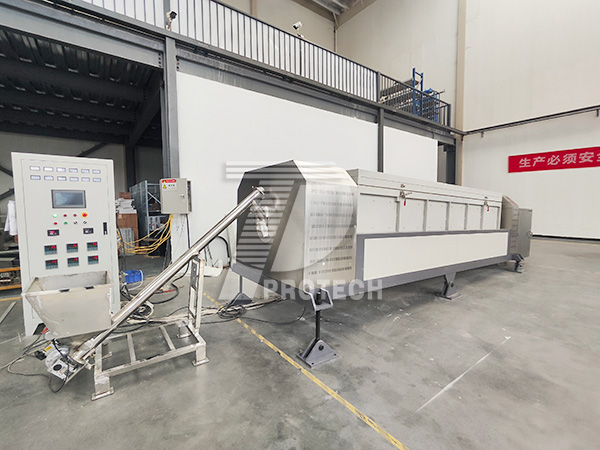

Actual photo of a large diameter rotary furnace with multiple temperature zones for continuous feeding and discharging
Transaction process
After-sales Service
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
