Sliding tube furnace

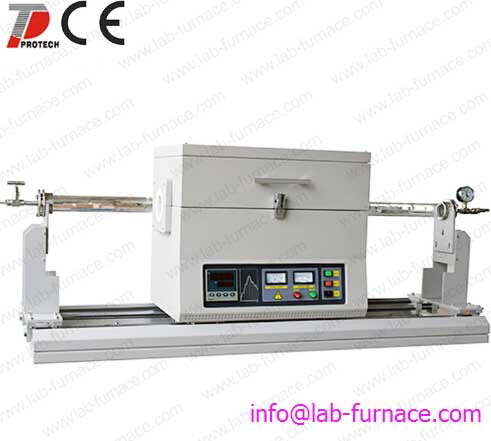

Sliding tube furnace

Model:PT-1200TH

Description:Sliding tube furnace can heat the sample rapidly in different environment, such as, vacuum, atmosphere, and air. The main application, quick annealing of many kinds of material, silicidation, diffusion, crystallization and densification, etc.

Inquire Now

Introduction:

1.Features of Sliding tube furnace :

(1). It adopts the dual shell structure and intelligent auto control temperature system, SCR control, phase shifting trigger.
(2). The chamber is adopted the imported alumina fiber, it is equipped with cooling system between the dual shell, which can rise and cool swiftly
(3). It can be connected to atmosphere, made vacuum, the vacuum pump is optional according to customers’ requirement;
(4). This furnace possesses the advantage of temperature uniform field, surface low temperature, rising and cooling swift, and well thermal insulation and energy conservation.

We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!

2.Technical parameters of Sliding tube furnace :
Display LED
Limiting temperature 1200℃
Working temperature ≤1150℃
Heating rate Suggestion 0~20℃/min
Temperature zone Single
Temperature accuracy ±1℃
Chamber Size Φ60×1000(mm)
Heating Element  Aludirome
Thermal couple K Type
Rated power 2.5 KW
Working Voltage AC 110V-480V  50/60 Hz
Temperature control PID automatic control via SCR power control
Heating curves 30 steps programmable
Chamber material Alumina Fiber
Warranty 12 month (exclusive wearing part)
Sliding tube furnace can be customized according to customers’requirements.

Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
