Three-zone upper feeding rotary tube furnace

Three-zone upper feeding rotary tube furnace

Model:PT-T8-3

Description:The PT-T89-3 upper feeding three temperature zone rotary tube furnace uses molybdenum resistance wires as heating elements. The maximum temperature inside the furnace can reach 900 ℃.

Inquire Now

Introduction:
Introduction
PT-T89*220*3 Three-zone spiral feeding tube furnace uses resistance wire with Mo as heating element. Max. temperature inside furnace can be reached at 900℃. The furnace temperature profile can be set up to 16 curves by 30 segments and run automatically by the advanced temperature controller. It is multiple heating zone design for sample uniform heating, user can also set temperature gradient. Screw feeder inside the stainless tube and connect to motor shaft, good magnetic fluid seal for motor, screw feeder rotates along with motor working, samples get forward, so it can handle the samples continuously, meantime rotation speed is adjustable, from 0.05~2RPM, user can adjust sample dwell time in the hot zones. It is excellent for material research, ceramic research labs to develop various new materials.Belongs to a type of tube furnace.

Three-zone upper feeding rotary tube furnace



Technical Specifications
Chamber Structure Split design
Display LCD touch screen
Max. Working Temperature 900℃
Heating Rate 0~20C/min (suggest 0~15℃/min )
Tube material 310S
Tube with screw feeder Outer diameter: 89mmm  inner diameter:77mm

Heating zone num 3
Unit heating zone length 220mm
Heating Element Resistance wire with Mo
Thermocouple K Type
Max. Power 7kW
Working Voltage AC 380V 3P, 50 Hz
Temperature Control PID automatic control via SCR power control
Heating curves 16 curves, 30 steps programmable
Hopper volume 5L
Chamber material Alumina Fiber
Gas inlet and outlet Stainless steel gas inlet&outlet with needle valve
Limit working pressure 0.02MPa
Pressure Gauge Mechanical pressure gauge
Warranty One year warranty (Consumable parts such as heating elements and insulation material are not covered by the warranty)

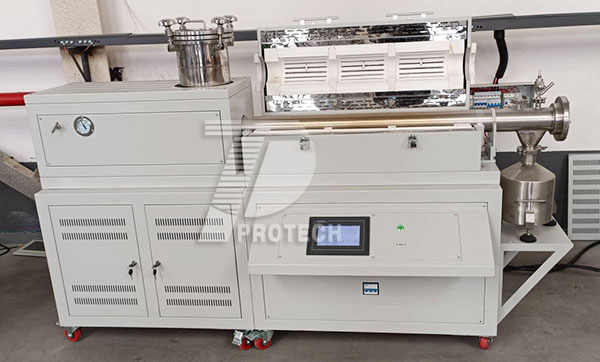

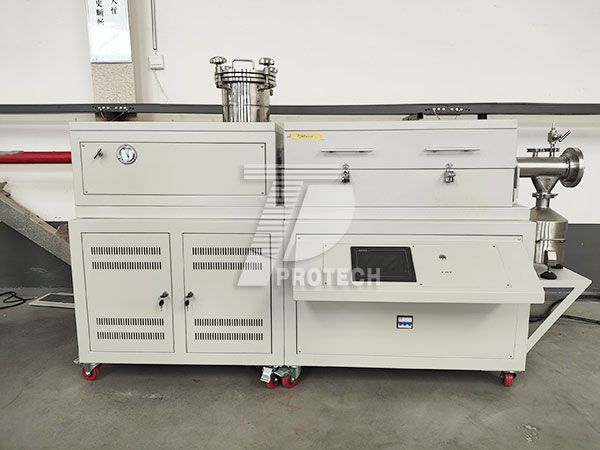

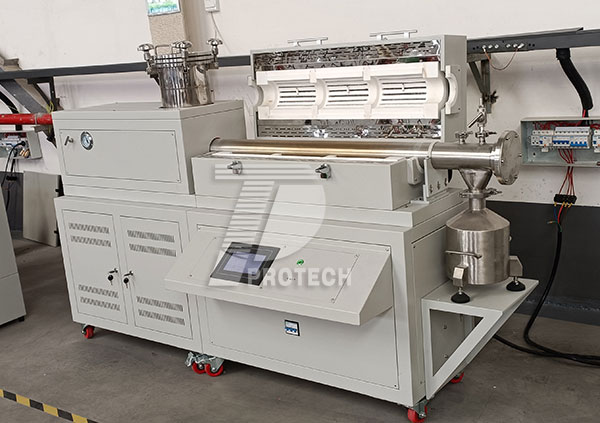

 Three-zone upper feeding rotary tube furnace

Three-zone upper feeding rotary tube furnace





Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
