Description：PT-T1600-L6012CB3 three-temperature zone vacuum atmosphere tube furnace is mainly used for experiments and small batch production in universities, scientific research institutes, industrial and mining enterprises, etc. Used for pre-sintering, sintering, coating, high temperature pyrolysis and low temperature deposition (CVD) processes of electronic ceramic products.
PT-T1600-L6012LB3 three temperature zone high temperature atmosphere tube furnace three digital temperature controllers can independently control the temperature, and can set 30 sections of temperature rise and fall programs, temperature zone 1 (the center of the heating zone) is heated by silicon carbide rods, and the other two Two temperature zones are heated with silicon molybdenum rods. This three-temperature zone high-temperature atmosphere tube furnace can form a temperature gradient, adjust the temperature of the three temperature zones, and prepare functional materials under the thermal gradient. It is also suitable for CVD method to make thin films. Epitaxial growth. The furnace body adopts a double-layer shell structure and is equipped with an air-cooling system, so that the surface temperature of the shell is less than 60 degrees. The heat preservation material of the furnace is made of high-purity alumina, which is environmentally friendly and energy-saving, and can reduce heat loss. The surface of the inner furnace is coated with The high-temperature alumina coating can improve the heating efficiency of the equipment and at the same time extend the service life of the instrument.Belonging to a type of Multi-Zone Tube Furnace.

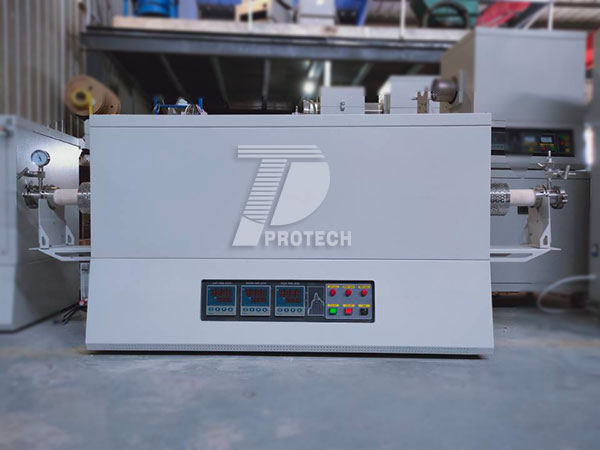

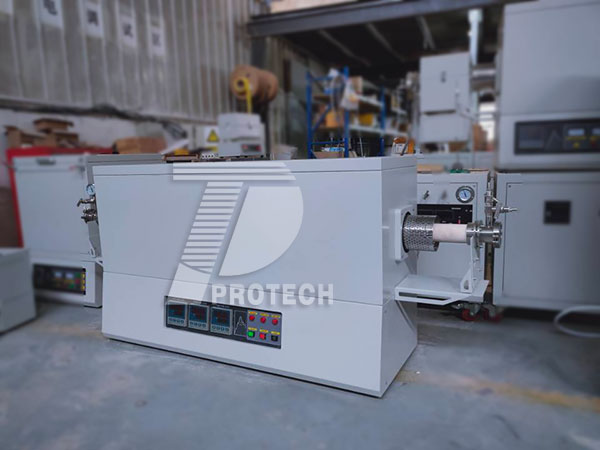

1600℃ Three Temperature Zone Tube Furnace
PT-T1600-L6012CB3 three-temperature zone vacuum atmosphere tube furnace is mainly used for experiments and small batch production in universities, scientific research institutes, industrial and mining enterprises, etc. Used for pre-sintering, sintering, coating, high temperature pyrolysis and low temperature deposition (CVD) processes of electronic ceramic products.Technical parameter:
|1600℃ high temperature tube furnace with three temperature zones
|More specifications can be customized according to user needs
|Temperature control system
|Temperature control method: Two temperature control systems are controlled separately, and both adopt PID method to adjust 30-segment programmable automatic control
|Temperature control accuracy/span>
|Suggest 0-10°C/min, max. 20°C/min
|Temperature control protection
|with over-temperature and broken couple alarm function
|Total temperature zone length 660 mm
|Temperature zone 1
|220 mm heated by silicon carbide rods, working temperature 800-1400°C
|Temperature zone 2
|220 mm is heated by silicon molybdenum rod MoSi2, working temperature 800-1600°C
|Vacuum sealing system
|A set of stainless steel vacuum sealing flange is included in the standard configuration of the instrument, and stainless steel shut-off valves are installed at both the outlet and inlet ends. The vacuum degree: 10-2 torr (using a mechanical pump); 10-5 torr (using a molecular pump)
|Silicon molybdenum rod, silicon carbide rod
|AC 220V single item 50 Hz
1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.
2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.
3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.
4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).
5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).
6.All the equipment has the CE certificate.
