Vacuum pump atmosphere tube furnace

Vacuum pump atmosphere tube furnace


Description:Widely used in experiments and small-scale production in universities, research institutes, industrial and mining enterprises, etc.

Inquire Now


Product description:

The PT-TG600-S120CK1 atmosphere tube furnace uses quartz tube as the furnace tube, with a working temperature range of 450 ℃ to 500 ℃. It uses molybdenum containing resistance wire as the heating element, adopts a double-layer shell structure and an intelligent temperature control system, phase-shifting triggering, controllable silicon control, and the furnace material is made of aluminum oxide polycrystalline fiber material. The double-layer furnace shell is equipped with an air cooling system, which can be used for atmosphere ventilation or vacuum extraction. PT-TG600-S120CK1 atmosphere tube furnace belongs to a type of tube furnace.

Vacuum pump atmosphere tube furnace
Vacuum pump atmosphere tube furnace


Widely used in experiments and small-scale production in universities, research institutes, industrial and mining enterprises, etc.

Product advantages:

1. It can be vacuumed and filled with various protective gases or destructive gases. The tube furnace is reserved with air inlet and outlet, and a vacuum pump interface is reserved. Connecting the vacuum pump can be vacuumed.

2. Balanced temperature field, low surface temperature, and energy-saving.

3. Safe and reliable, easy to operate, high temperature control accuracy, good insulation effect, and high furnace temperature uniformity. The entire furnace body adopts a double-layer inner liner structure, with air gap isolation in the middle. Even if the furnace temperature reaches 1600 ℃, the surface of the furnace body can still be safely touched without feeling hot.

4. The heating element adopts high-quality resistance wire, and the furnace insulation material adopts polycrystalline fiber material, which has good insulation performance, durability, high tensile strength, no impurities, high purity, and significantly better energy-saving effect than domestic fiber materials.

5. The furnace tube adopts quartz furnace tube, and the temperature resistance of the furnace tube can reach 1100 ℃.

6. The temperature control system adopts touch screen control, artificial intelligence regulation, PID regulation, Self-tuning function, can prepare 30 temperature rise and fall programs, and data can be stored and output.

7. It has an over temperature alarm protection function, ensuring safe and reliable operation.

8. Our company has the ability to independently develop, design, produce, and process our machines. We provide lifelong parts replacement and upgrade services.

Technical parameter:

Product Name Vacuum Pump Atmosphere Tube Furnace
Product model PT-TG600-S120CK1
Furnace tube size Φ 120mmX1000mm
Furnace tube material Quartz furnace tube
Heating zone length 440mm
Working temperature 500℃
Maximum temperature 600℃
The furnace material Alumina polycrystalline fiber with good insulation performance
Temperature control method Multi stage PID intelligent program temperature control
control mode Using LCD touch screen operation, intelligent multi stage PID programmable control
The temperature control system adopts artificial intelligence regulation technology, has PID regulation, Self-tuning functions and can prepare multi section temperature rise and fall programs
1. Temperature control can be adjusted using PID method, and multiple temperature rise and fall programs can be set.
2. Temperature control accuracy± 1º C
3. With overtemperature protection and couple breaking protection, the heating circuit of the electric furnace is automatically cut off in case of overtemperature or couple breaking
4. The instrument has the function of temperature Self-tuning
5. Touch screen operation is adopted, and the temperature rise curve can be displayed in real time, and the data can be output and stored
heating rate 0-20º C/min, recommended 10º C/min, freely adjustable according to the process
working voltage AC 220V; Single phase; 50HZ
Power 5KW
Furnace structure 1. It adopts a double-layer shell structure and has a cooling fan installed inside the furnace body to reduce the surface temperature of the equipment.
2. The furnace is composed of furnace material, insulation material, and heating elements.
3. The temperature control system is composed of temperature control instruments, control elements, and thermocouples.
4. The furnace body and temperature control are integrated in structure, and the furnace is fixed on the temperature controller
Vacuum system part
name vacuum system
Parameters Adopting a high vacuum molecular pump group,the cold limit vacuum degree can reach 6.67 * 10-3pa, and KF25 quick connect, stainless steel bellows, manual baffle valve and flange, and vacuum pump connection
Composite digital vacuum gauge display

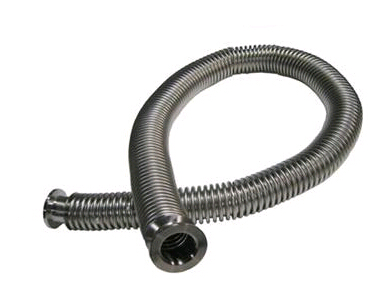

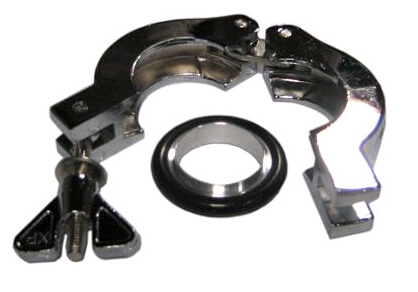

Reference image Molecular pump groupflangecorrugated pipe

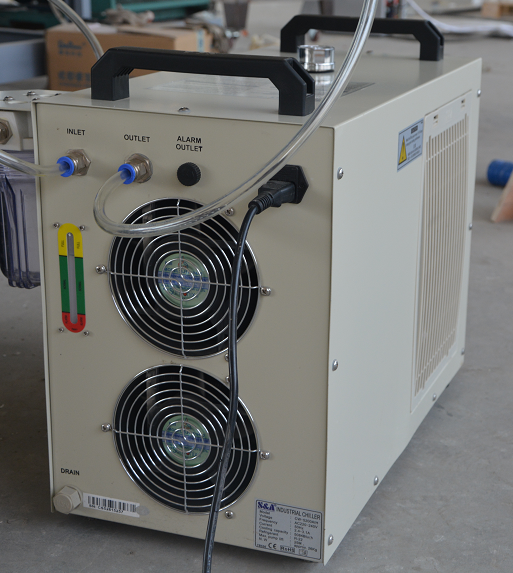

water-cooling system Equipped with a water cooler, it can be cooled by a molecular pump to prevent damage to the molecular pump due to overheating

Vacuum pump atmosphere tube furnace
Vacuum pump atmosphere tube furnace

Transaction process

  After-sales Service

1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
