Protech quotation of vacuum hot press machine

Protech quotation of vacuum hot press machine

Model:PT-TL1000-S100CK1

Description:Protech vacuum heat stress furnace is designed for the production of up to 5 tons of composite composite materials under vacuum and high pressure. Composed of a vacuum sealing quartz tube with a diameter of 100mm and a split -type vertical pipe furnace with a 5000kg digital electric pressure machine and a set of graphite pressing rods.

Inquire Now

Introduction:

Product Introduction:

The Protech vertical vacuum hot pressing tube furnace is designed to produce up to 5 tons of dense composite materials under vacuum and high pressure. Composed of a split type vertical tube furnace with a 100mm diameter vacuum sealed quartz tube and a 5000kg digital electric press, as well as a set of graphite pressure rods. The temperature controller can be set with 30 programmable segments, and the maximum operating temperature can reach 1000 º C. Click to consult online customer service for more product details!

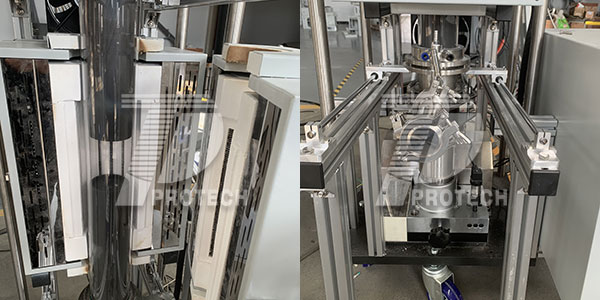

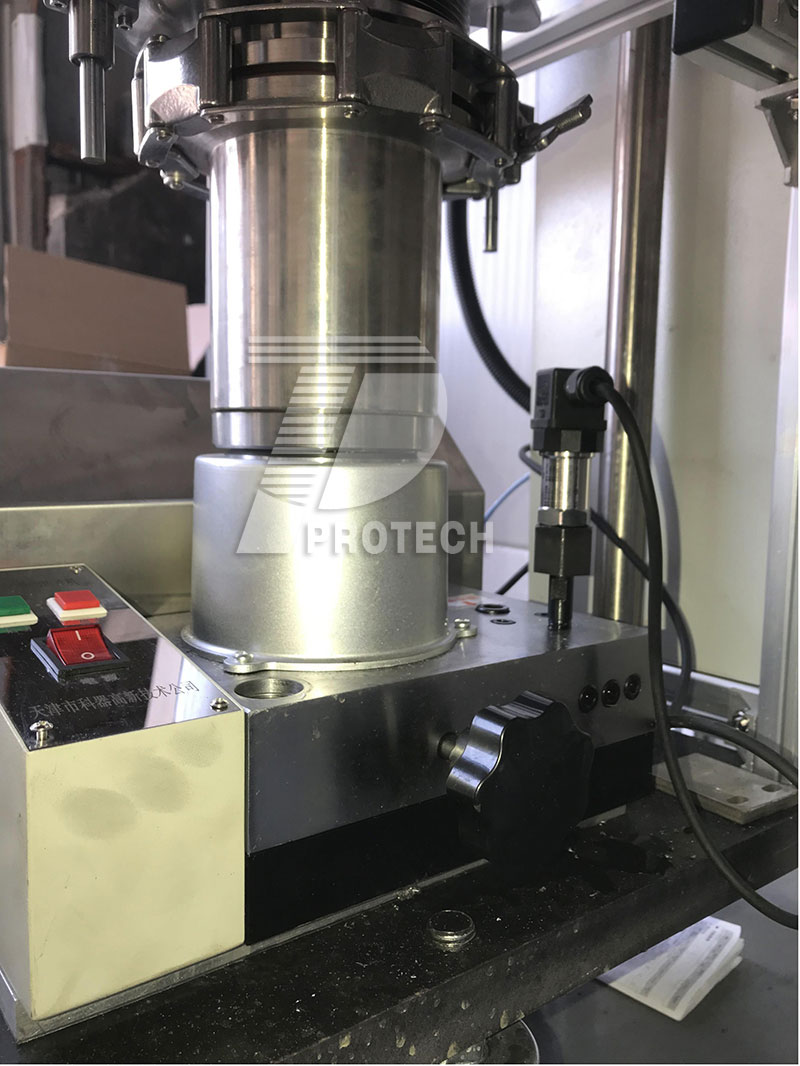

Actual photo of Protech vertical hot press vacuum tube furnace
Actual photo of Protech vertical hot press vacuum tube furnace


Technical parameters:

Product name Protech quotation of vacuum hot press machine
Model PT-TL1000-S100CK1
Max. Pressure 5ton
Digital Electric Press Built-in a digital electric press with Max. load capability of 5 tons on the bottom of the furnace.
Pressure adjustment range: 0.1-5 T adjustable with constant pressure function
Travel distance:  20 mm
Digital Electric Press
Vertical Furnace Splittable vertical furnace heated by Ni-Cr-Al resistance wire
Max. working Temp> 1000oc < 60 minutes
Max. Heating Rate: < 10oC/minute
30 segment programmable controller with +/-1ºC accuracy
Power consumption: 2200W
Power input: 208 - 240VAC, 50/60 Hz single phase
Heating Zone Heating Zone Length: 12" (300mm)
Constant temperature zone: 100mm
Quartz Tube & Sealing Flange One quartz tube 100 OD x 94 ID x 640L mm (4" x 25") is included.
Water-cooled flanges are installed on two ends of the tube with a KF-25D vacuum port & pressure gauge as well as a 1/4" gas inlet port with an SS304 needle valve.
Flow bigger than 12L/minute is required, and using an optional recirculating water chiller to save water is highly recommended.
Warranty lifetime support is provided.
One-year limited standard warranty, (Consumable parts like graphite die do not have any warranty.)

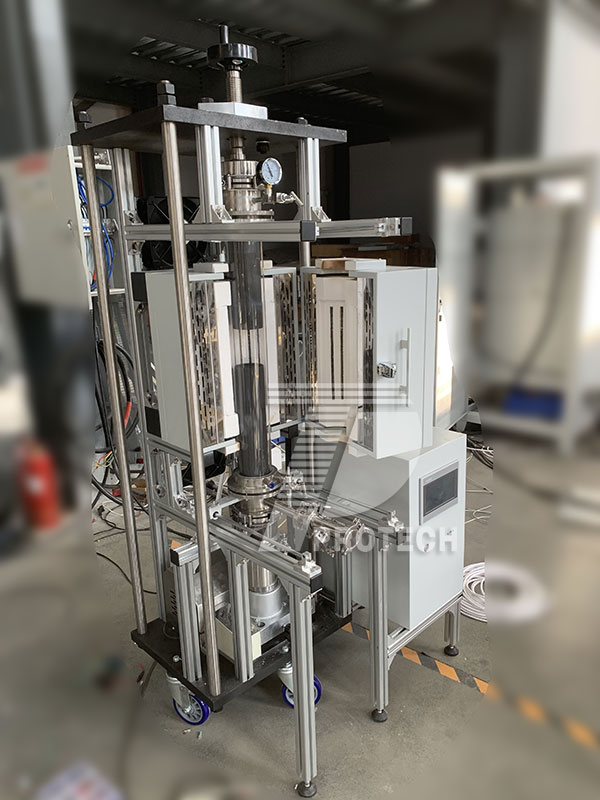

Actual photo of Protech vertical hot press vacuum tube furnace
Actual photo of Protech vertical hot press vacuum tube furnace

Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
