Model：PT-TL1200-S25LK5
Description：PT-TL1200-S25LK5 is a new type of fluidized bed vertical tube furnace specifically designed for CVD experiments on powder surface deposition. The furnace tube is made of high-purity quartz and contains a sand core plate with a pore size of 50 microns The powder can be placed on a porous quartz plate, and gas can be introduced from the lower end of the furnace tube to suspend the sample particles in the heating area through the porous quartz plate for deposition experiments. There are five temperature zones, each with individual temperature control.
PT-TL1200-S25LK5 is a new type of fluidized bed vertical tube furnace specifically designed for CVD experiments on powder surface deposition. The furnace tube is made of high-purity quartz and contains a sand core plate with a pore size of 50 microns The powder can be placed on a porous quartz plate, and gas can be introduced from the lower end of the furnace tube to suspend the sample particles in the heating area through the porous quartz plate for deposition experiments. There are five temperature zones, each with individual temperature control. (Note: When suspending sample particles with gas, the particles may pass through the heating zone due to excessive gas flow rate. Therefore, the gas flow rate should be adjusted according to the size of the particles during the experiment.) Click to view more vertical tube furnaces!

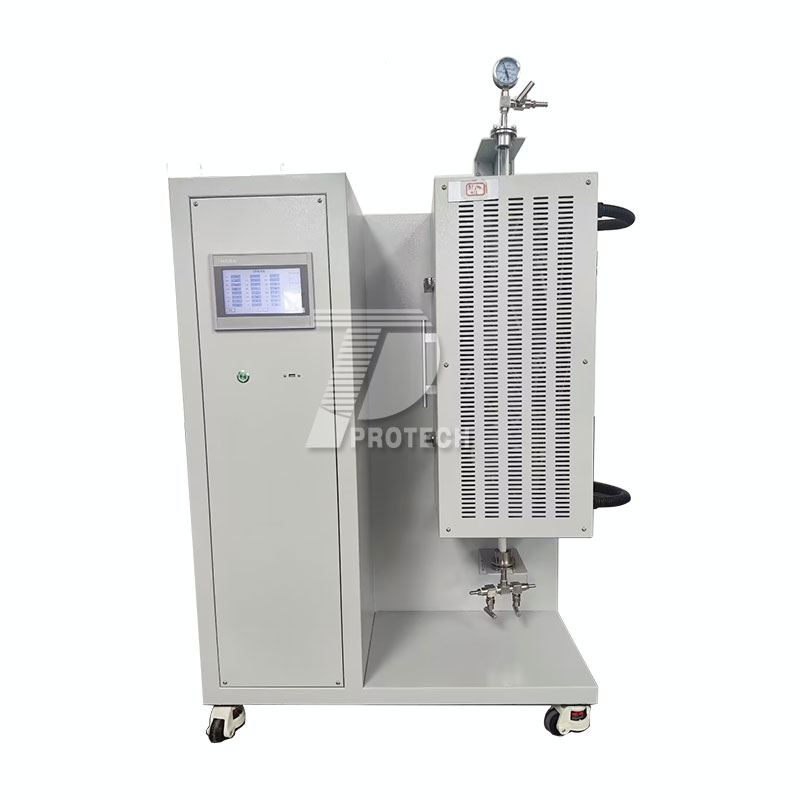

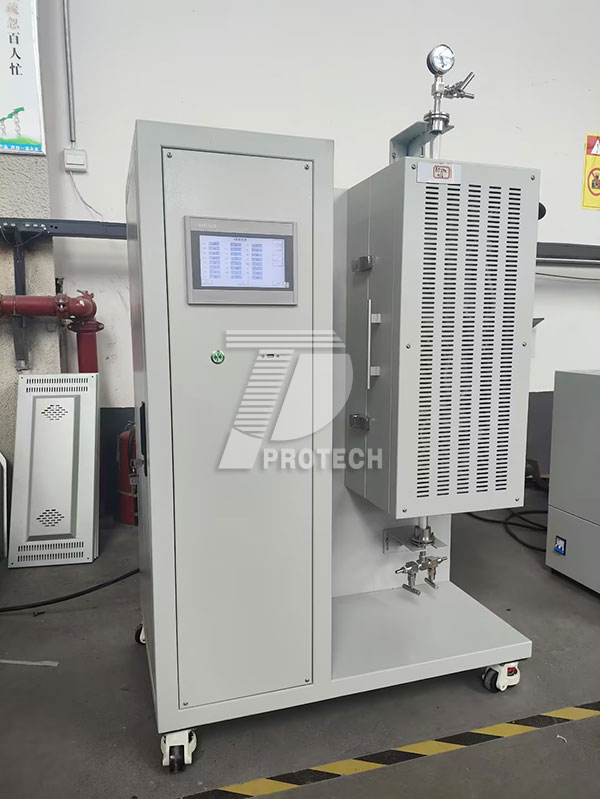

Touchscreen version of vertical fluidized bed tube furnace with five temperature zones, photographed in real life
1. Vertical opening design: The furnace body is designed as a vertical opening type. After the experiment is completed, the furnace body can be opened and the quartz tube can be taken out to remove the reacted particles.
2. It can achieve complex heat treatment processes: independent temperature control in five temperature zones, which can form temperature gradients or longer constant temperature zones within the heating zone.
3. Intelligent temperature control system: adopting artificial intelligence regulation technology, with PID regulation, self-tuning function, and the ability to develop multi-stage temperature rise and fall programs.
4. Over temperature protection and alarm: It has over temperature protection and thermocouple breaking protection. When the electric furnace heating circuit is over temperature or disconnected, it will automatically cut off, over temperature protection and alarm.
5. Easy and convenient touch screen operation: With touch screen operation, temperature rise and fall data can be recorded, stored, and outputted.
6. Excellent dynamic sealing system: The furnace tube and flange are sealed by O-ring extrusion, which is easy to remove, can be repeatedly removed, and has good air tightness.
| Vertical tube furnace part | |
| Model | KJ-TL1200-S25LK5 |
| Heating zone length | Five temperature zones, each zone is 100mm, the total length of the heating zone is 500mm(Can be customized according to customer needs) |
| Furnace tube size | diameter 25*1200mm(Can be customized according to customer needs) |
| Furnace tube material | High purity quartz tube with built-in 40-90 micron sand core plate (customized) |
| Working temperature | ≦1100℃ |
| Max temperature | 1200℃ |
| Temperature measuring element | N-type thermocouple temperature measurement, 5 thermocouples |
| Temperature Control System |
Intelligent 30-segment PID programmable control The temperature control system adopts artificial intelligence regulation technology, has PID regulation, self-tuning functions and can compile multi-stage temperature rise and fall programs; 1. Use PID to adjust temperature control, and can set multi-stage temperature rise and fall programs 2. Temperature control accuracy ±1ºC 3. Over-temperature protection and broken couple protection. The electric furnace heating circuit is automatically cut off when over-temperature or broken couple is exceeded 4. The instrument has the function of temperature self-tuning 5. Touch screen operation is adopted, and the temperature rise and fall data can be recorded, and the data can be stored and output |
| Temperature control accuracy | ±1℃ |
| Temperature control protection | With over-temperature and broken couple protection function |
| Heating rate | 0-20ºC/min，10ºC/min is recommended, which can be adjusted according to the experimental process |
| Heating element | Alloy resistance wire |
| Furnace chamber material | The furnace is made of polycrystalline fiber material, which has good thermal insulation performance, high reflectivity and balanced temperature field. |
| Flange | Stainless steel vacuum flange, easy to disassemble |
| Sealing system | The furnace tube and flange are sealed with O-rings, which are easy to remove and can be removed repeatedly, and have good airtightness. |
| Fluidized area |
1. The reaction gas passes through the reaction zone evenly. 2. The solid particles are suspended in the heating zone by the gas. 3. The furnace body is designed to be open. When the experiment is over, the furnace body can be opened, the quartz tube can be taken out, and the particles after the reaction can be taken out. Note: When the gas is introduced to suspend the sample particles, the particles may pass through the heating zone due to excessive gas flow. Therefore, the gas flow should be adjusted according to the size of the particles during the experiment. |
| Shell structure | Double shell structure with air cooling system, open type |
| Furnace structure | Vertical structure |
| Intake control | Equipped with argon float flowmeter, the flow range can be selected according to user requirements |
| Air inlet and outlet | Two inlets and one outlet, air inlet at the bottom (two-way air inlet), air outlet at the top |
