Model：PT-TL110-S350CK1
Description：The PT-TL110-S350CK1 tubular vertical lifting bell jar furnace is mainly used for high vacuum welding, high-temperature sintering, annealing, heat treatment, etc. of diamond grinding wheels, saw blades, hard cutting tools, ceramic and alloy materials, and metal materials.
PT-TL110-S350CK1 tube type vertical lifting bell jar furnace can lift and lower the heating zone, making it easier to feed and retrieve materials; Good welding quality, high strength, and strong stability. This furnace has the advantages of temperature field balance, low surface temperature, and energy saving. This equipment is mainly used for high vacuum welding, high-temperature sintering, annealing, heat treatment, etc. of diamond grinding wheels, saw blades, hard cutting tools, ceramic and alloy materials, and metal materials. Click to view more tube furnaces!

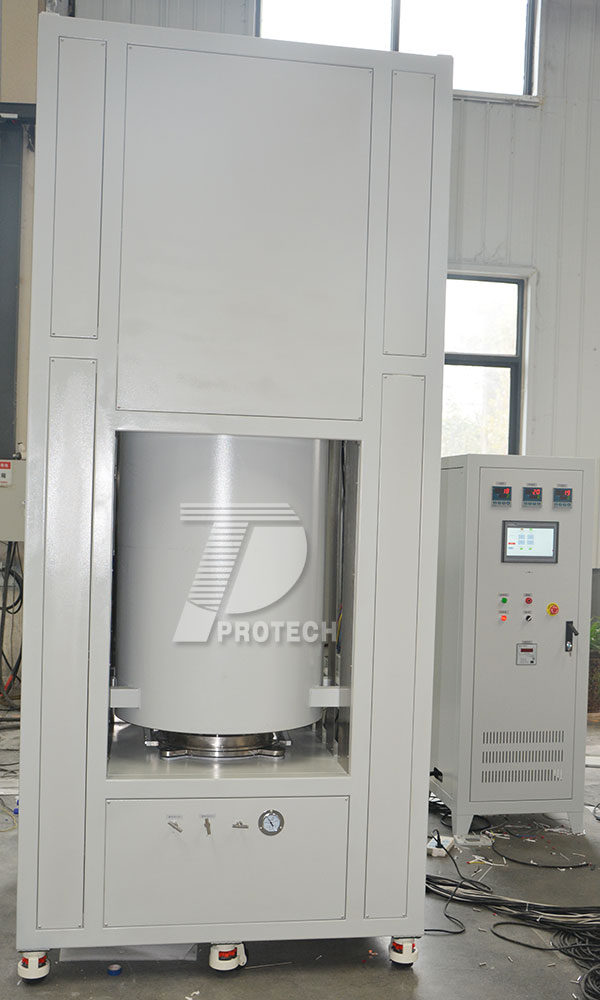

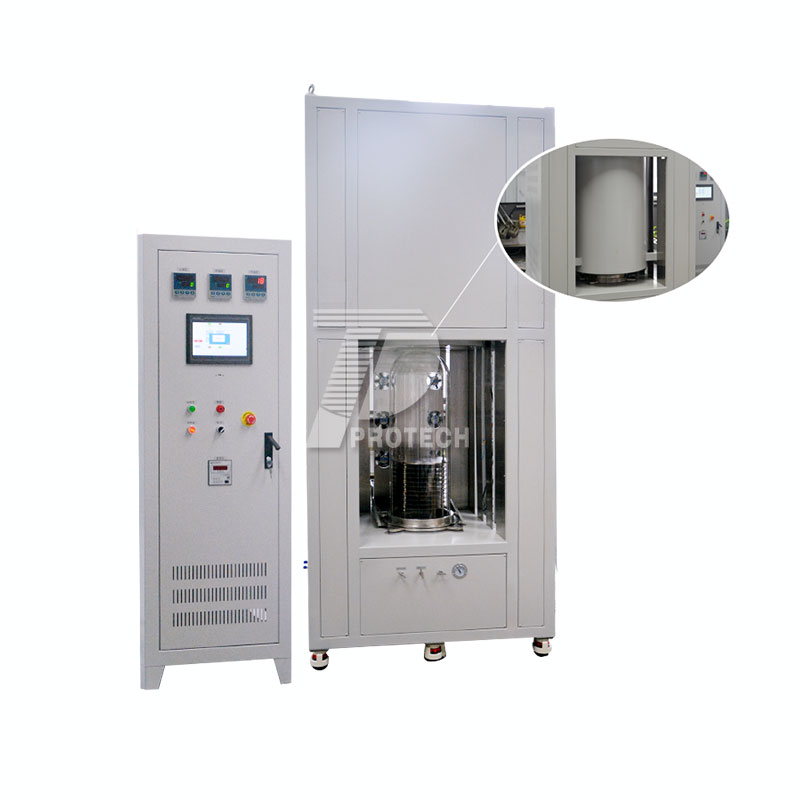

Actual photo of tube type vertical lifting bell cover furnace
1. Elevating furnace and heating chamber: The material chamber can be raised and lowered, and the heating furnace can also be raised and lowered, making it easy to observe the heat treatment effect of the materials inside the furnace.
2. Safe and heat-resistant furnace shell: The entire furnace body adopts a vertical structure with an air gap in the middle for isolation. Even if the furnace temperature reaches up to 1000 ℃, the surface of the furnace body can still be safely touched without a feeling of scalding.
3. Intelligent temperature control system: The temperature control system adopts touch screen control, artificial intelligence adjustment, PID adjustment, self-tuning function, and can be programmed with 30 temperature rise and fall programs. The data can be stored and output.
4. Energy saving and durable furnace: The furnace insulation material adopts polycrystalline fiber material, which has good insulation performance, high tensile strength, no impurities, high purity, and significantly better energy-saving effect than domestic fiber materials.
| Tool soldering bell furnace | |
| Model | PT-TL110-S350CK1 |
| Furnace tube size | Φ350mmX1300mm，Single-side end cap structure(Can be customized according to customer needs) |
| Vertical heating zone length | Average temperature zone Ø350×500mm(Can be customized according to customer needs) |
| Working temperature | ≤1000℃ |
| Max. temperature | 1100℃ |
| Heating method | High-quality alloy heating wire, the heating wire is annularly embedded in the furnace surface |
| Chamber material | Alumina polycrystalline fiber, good thermal insulation performance |
| Temperature control method | Multi-stage PID intelligent program temperature control |
| Control method |
LCD touch screen operation, intelligent multi-stage PID programmable control The temperature control system adopts artificial intelligence adjustment technology, has PID adjustment, self-tuning functions and can compile multi-stage temperature rise and fall programs; 1. Use PID to adjust temperature control, and can set multi-stage temperature rise and fall programs 2. Temperature control accuracy ±1ºC 3. Over-temperature protection and broken couple protection. The electric furnace heating circuit is automatically cut off when over-temperature or broken couple is used 4. The instrument has the function of temperature self-tuning 5. Touch screen operation, the temperature rise curve can be displayed in real time, and the data can be output and stored |
| Heating rate | 0-20ºC/min ，10ºC/min is recommended,can be adjusted freely according to the process |
| Flange seal |
Equipped with stainless steel water-cooled flange, the interface is sealed with metal gasket or fluororubber. Ring seal, flange with fastening device, with air inlet and outlet and vacuum pump interface. |
| Inlet and outlet design | One-in-two-out design |
| Furnace structure | Vertical structure, electric lifting bell type |
| Gas system | |
| Name | Two-way mass flow meter |
| Main parameters |
Two-channel precision mass flowmeter: touch screen control, digital display, automatic control. Flow range: 1. MFC 1-MFC2: Hydrogen, argon 0-1000sccm/10L adjustable 2. A gas mixing tank 3. 2 stainless steel needle valves are installed on the left side of the gas supply system, and 2 gases can be manually controlled; 4. Inlet and outlet: 2 inlet and 1 outlet Connection method: double ferrule connection |
| Vacuum system parts | |
| Main parameters |
1. The vacuum degree of the vacuum pump can reach 5pa 2. KF25 quick connection, stainless steel bellows, manual baffle valve and flange, connected to the vacuum pump; 3. The resistance vacuum gauge displays |
| Water Cooling System | Equipped with a water cooler to cool the flange |
| After-sales service | One-year warranty, lifetime warranty (heating elements, furnace tube consumables and other accessories provided with the device are not covered by the warranty) |

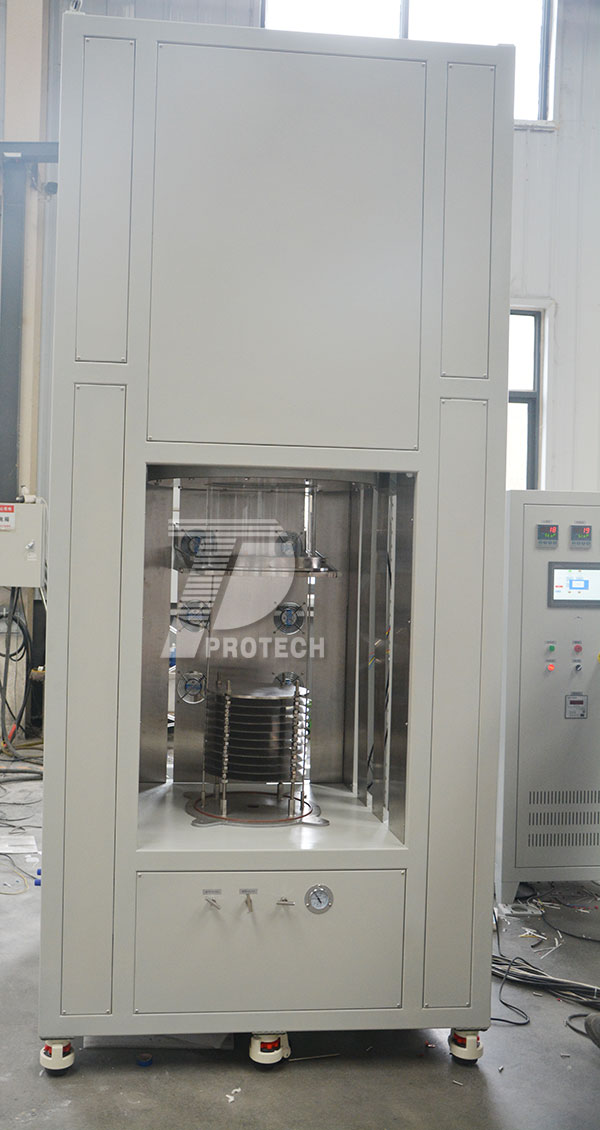

Actual photo of tube type vertical lifting bell cover furnace
