Model：PT-C900-300*300
Description：The vertical atmosphere crucible furnace is specifically designed for liquid or slurry samples. The equipment is designed vertically, and there is a large stainless steel tank inside the ceramic chamber. The tank contains a sample crucible, which can be easily removed by the user. Equipped with a stirrer, the sample can be uniformly heated.
The vertical atmosphere crucible furnace is specifically designed for liquid or slurry samples. The equipment is designed vertically, and there is a large stainless steel tank inside the ceramic chamber. The tank contains a sample crucible, which can be easily removed by the user. Equipped with a stirrer, the sample can be uniformly heated and the reaction can be faster. Click to view more crucible furnaces!

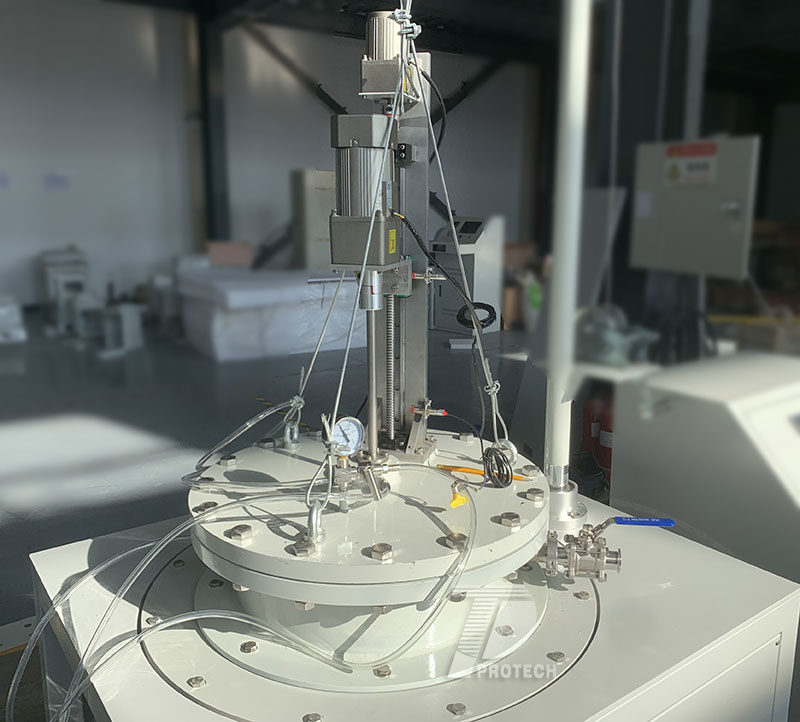

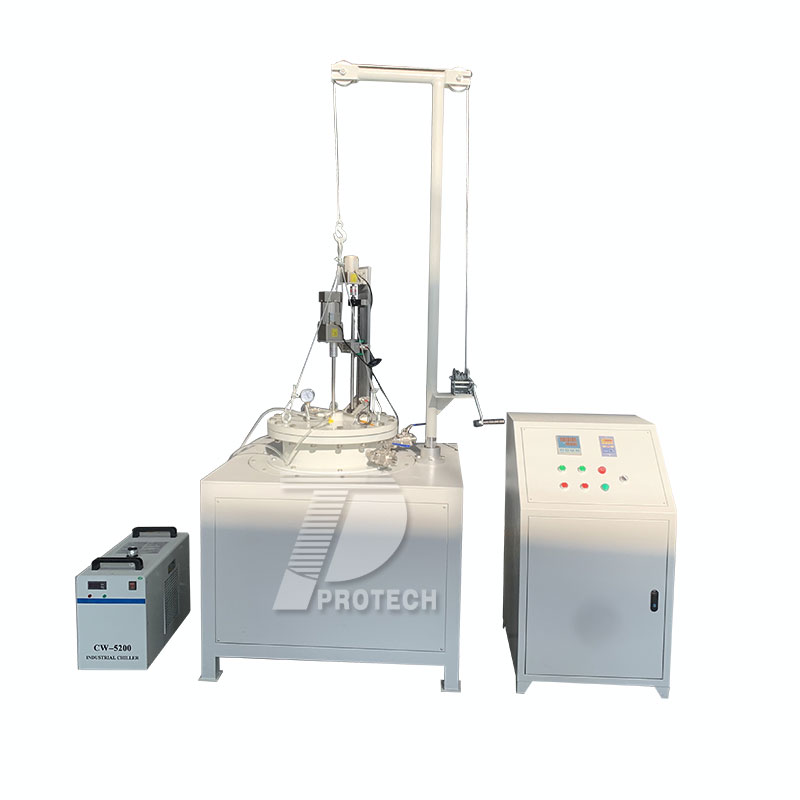

Actual photo of vertical atmosphere crucible furnace
1. Can pass inert gases such as argon: Stainless steel metal flanges with valves and related interfaces, good airtightness, can pass inert gases such as argon.
2.30 step programmable temperature: The temperature control system adopts PID regulation and can set 30 temperature rise and fall programs.
3. Overtemperature protection and alarm: Sound and light alarm for overtemperature and thermocouple breakage accidents, and automatic power cut-off for the heating part.
4. Digital display: A digital display used for monitoring temperature and setting temperature.
5. Double layered shell with air cooling system: carbon steel shell and ceramic fiber lining chamber, double-layer structure, with cooling fan.
| Model | PT-C900-300*300 |
| Display | LED |
| Max continuous Working Temp. | 900℃ |
| Heating Rate | 0-20℃/min(Suggest 0~10C/min) |
| Crucible size |
OD300*H300mm (Can be customized according to customer needs) |
| Heating Element | Resistance wire with Mo |
| Thermocouple | N type |
| Temperature Control Accuracy | ±1℃( for high temperature stage) |
| Temperature Control | PID automatic control via SCR power control |
| Vacuum Flange | Stainless Steel vacuum flange with valves and needles |
| Warranty |
One year limited warranty with lifetime technical support. (Consumable parts are not covered by the warranty) |

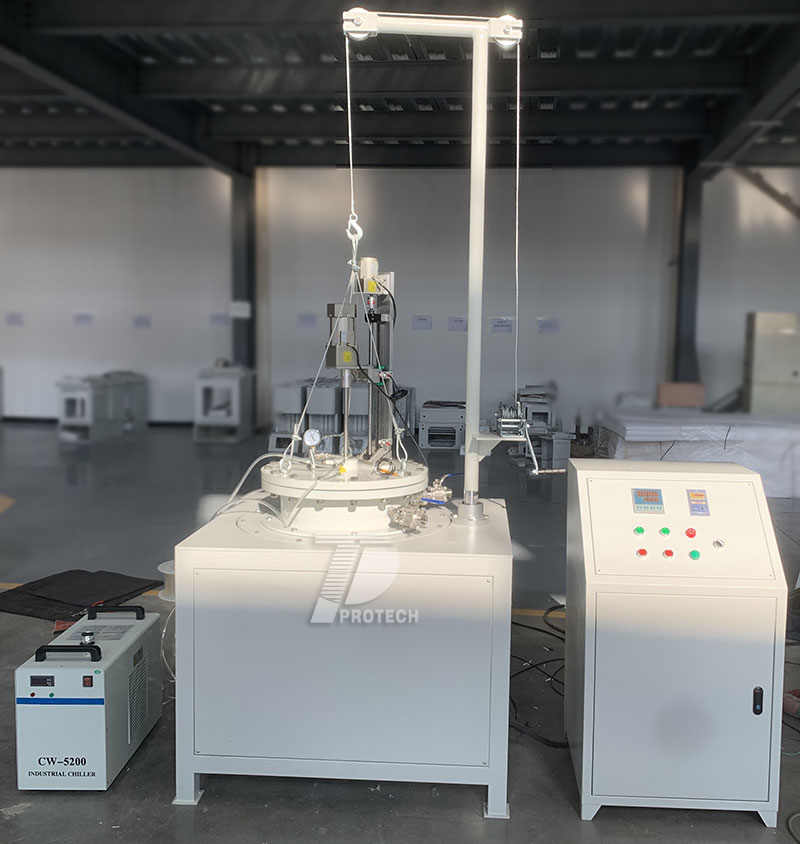

Actual photo of vertical atmosphere crucible furnace
