The CVD system is called Chemical Vapor Depositation system, that is, chemical gas deposition system. It is an important material preparation technology that is mainly used to deposit a layer of film on solid substrates. This technology involves transforming the gaseous or steam -state substances into solid substances through chemical reactions and deposited on the substrate surface.

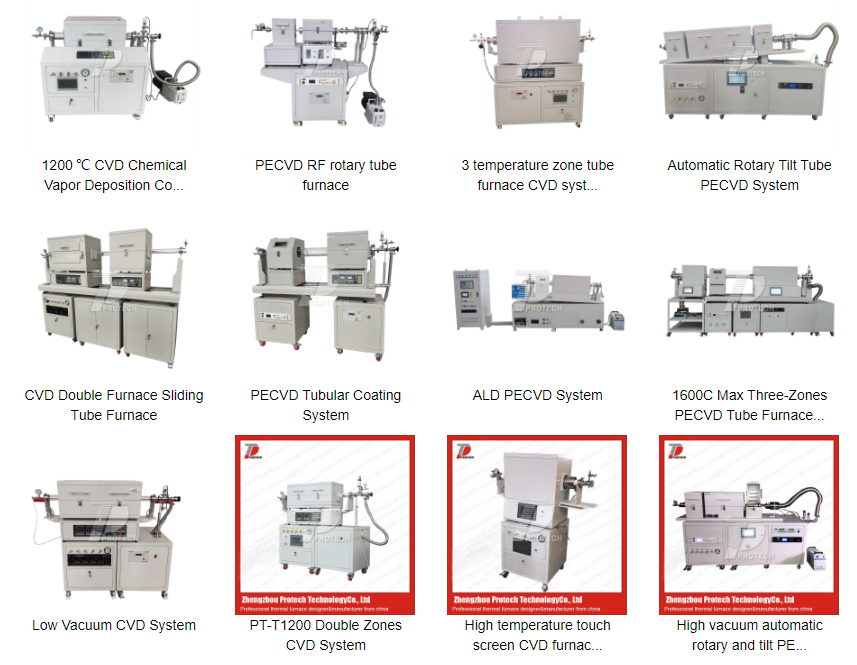

More commonly used CVD chemical gas phase deposition electric furnaces (click the picture to view product details)
1. Some components of CVD chemical gas deposition:

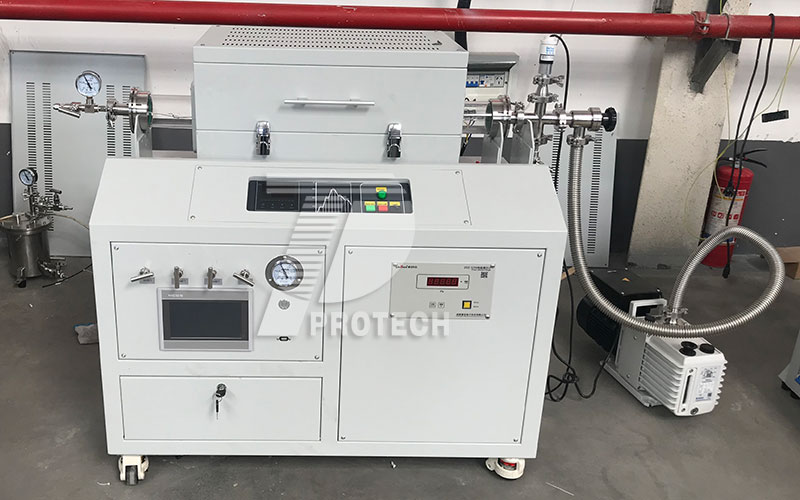

The CVD system is mainly composed of high -temperature vacuum pipe furnaces, air paths and vacuum systems. Among them, the high -temperature vacuum pipe furnace provides the required reaction temperature, and the air path is responsible for transporting the reaction gas to the reaction area, while the vacuum system is used to maintain the vacuum environment in the reaction process.
2. The working principle of CVD chemical gas deposition:
The CVD system uses a chemical reaction to deposit the required film material on the surface of the substrate by using a chemical reaction to introduce a chemical reaction. In the reaction room, the front body of the gas is decomposed and deposited on the surface of the substrate to form the required film structure. Reaction conditions such as temperature, pressure, gas flow, etc. can be adjusted and optimized by system control.

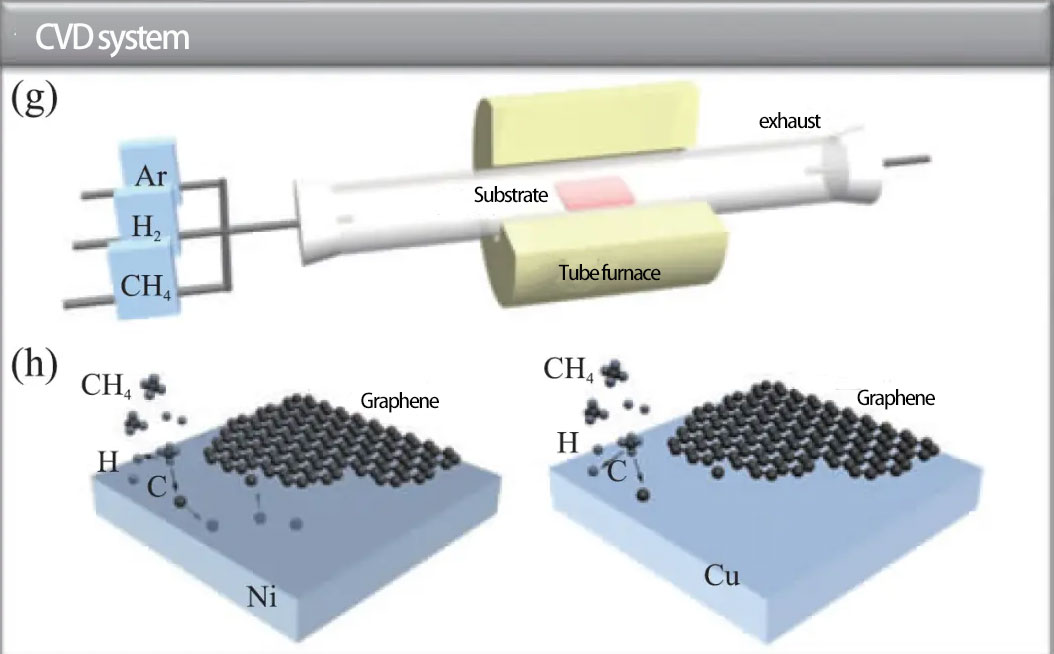

CVD chemical gas sedimentary principle (here as a graphene sedimentation for example)
3. The main application areas of CVD chemical gas deposition:
① Semiconductor Manufacturing: It is used to prepare a thin film for silicon -based film, silicon nitride, alumina, etc. for semiconductor devices.
② Optical electronics: used to prepare optical film, fiber -fiber coating, solar cell material, etc.
③ Materials science: used to prepare coating, ceramic film, coating materials, etc.
④ nanotechnology: used to prepare nanomaterials, nano -structure film, etc.
⑤ Surface engineering: It is used to change the surface of the substrate, such as increasing moisture and corrosion resistance.
CVD chemical gas deposition application field
4. Advantages and characteristics of CVD chemical gas deposition:
① Height controllability: The CVD system can accurately control the reaction conditions, such as temperature, air pressure, gas flow, etc. to achieve accurate control of the properties of the sedimentary film.
② Uniformity and repetitiveness: Through systematic optimization and control, the uniformity and repetitiveness of the film can be realized.
③ Multifunctional: The CVD system can be suitable for a variety of reactive gas and a variety of substrate materials, which has high flexibility and versatility.
④ efficiency: Compared with other sedimentary technology, the CVD system usually has a high deposition rate and low cost.
5. Summary:
The CVD system is an important material preparation technology and has a wide range of application prospects. It has important applications in semiconductor industry, optical industry, aerospace and other fields. It plays an important role in preparing functional thin -film materials and is one of the common equipment in modern materials science and engineering. Click to learn more about the CVD chemical gas deposition system! Or click on online customer service to learn more about product information!
