Customized vertical tube furnaces can greatly improve process adaptability, operational efficiency, and experimental/production quality through targeted design. So let's take a detailed look at their specific advantages below!

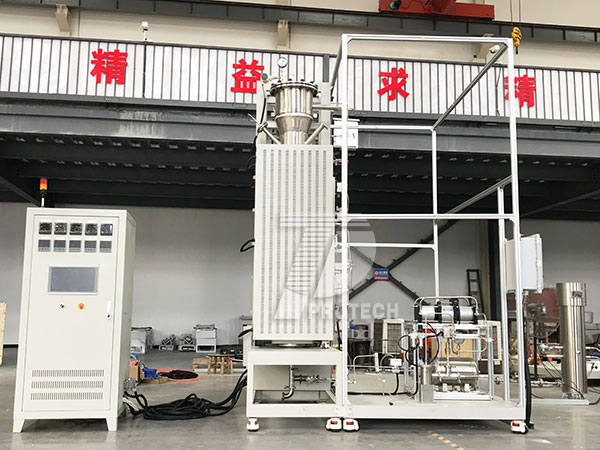

Customized vertical tube furnace with preheating (click on the image to view product details)
1. Structural and spatial optimization advantages
Vertical layout saves space
Small footprint: The vertical structure places the furnace tubes vertically and utilizes space in the height direction, making it suitable for limited space scenarios such as laboratories or clean rooms (for example, a 1.2-meter-high vertical furnace only requires 0.5m ² of floor area, while a horizontal furnace of the same volume requires 1.2m ²).
Modular Expansion: Multiple layers of furnace bodies (such as double-layer or three-layer structures) can be stacked to achieve parallel processing at multiple workstations, increasing production capacity by 30% to 50%.
Efficient thermal field distribution
Natural convection enhancement: The gas in the vertical furnace tube naturally rises, and with the design of bottom inlet and top outlet, a uniform temperature gradient can be formed (for example, in CVD process, the vertical airflow causes the precursor distribution deviation to be ≤ 3%).
Reduce heat loss: The vertical structure reduces the heat dissipation area on the side of the furnace, increases the heating rate by 15% to 20% under the same power, and reduces energy consumption by 10% to 15%.
2. Advantages of process adaptability
Special material processing
Flexible adjustment of aspect ratio: The length to diameter ratio (L/D) of the furnace tube can be customized to 20:1 or above, suitable for the growth of one-dimensional materials such as nanowires and fibers (e.g. furnace tubes with L/D ≥ 15:1 required for the preparation of carbon nanotube arrays).
Accurate atmosphere control: The vertical structure facilitates the design of multi-stage air inlets (such as hydrogen reduction at the bottom and methane cracking in the middle), achieving atmosphere gradient distribution and reducing side reactions (for example, during ZnO film deposition in MOCVD, oxygen concentration gradient control reduces impurity content to below 0.1%).
Complex process integration
Multi field coupling capability: It can integrate microwave, plasma, or laser assisted heating modules (for example, a microwave-assisted CVD vertical furnace can increase the growth rate of graphene to 5 μ m/min, which is three times that of traditional thermal fields).
Dynamic process support: The vertical structure facilitates the design of a rotating base or vibration feeding system, suitable for dynamic deposition or powder calcination processes (for example, when calcining positive electrode materials for lithium-ion batteries, the rotating base causes a particle size distribution D50 deviation of ≤ 5%).
3. Operation and maintenance advantages
user-friendly design
Convenient loading and unloading: The top opening design, combined with a lifting mechanism, reduces the loading and unloading time of large-sized substrates (such as 4-inch wafers) to within 5 minutes, increasing efficiency by 40% compared to horizontal furnaces.
Visual monitoring: The side of the furnace can be integrated with observation windows or endoscopes to monitor the process in real time (for example, in the sintering of fluorescent powder, adjusting the atmosphere flow rate through the observation window to make the luminous efficiency fluctuation ≤ 2%).
4. Selection suggestions
Priority of process matching
Atmosphere sensitive process: Priority should be given to vertical furnaces with gas purification systems (such as drying systems with dew point ≤ -80 ℃).
High temperature long-term process: High temperature resistant seals (such as Inconel alloy flanges) and water cooling systems (furnace surface temperature ≤ 60 ℃) are required.
5. Conclusion
Customized vertical tube furnaces, through structural innovation and deep adaptation of processes, are significantly superior to general-purpose equipment in terms of space utilization, process accuracy, and operational efficiency. Users need to choose configurations based on specific process requirements, such as atmosphere control accuracy, temperature uniformity, and production capacity. For example, in the semiconductor field, it is recommended to use an ultra clean vertical furnace with integrated in-situ monitoring function, while in the powder metallurgy field, it is suitable to use an economical vertical furnace equipped with a vibration feeding system. It is recommended to communicate with technical personnel before purchasing to customize a vertical tube furnace that is suitable for one's own experiment or production, in order to ensure higher efficiency!Click to learn more Vertical tube furnaces! Or click on online customer service to learn more about product information!
