A slide tube furnace is an efficient heat treatment equipment that combines a slide moving mechanism with a tube furnace structure. What are its characteristics? Let's take a look below!

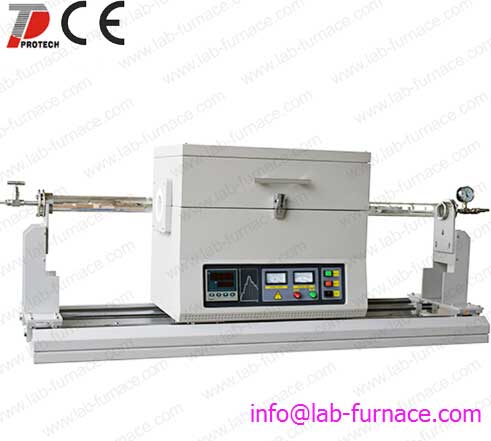

Commonly used slide tube furnace (click on the picture to view product details)

1. Flexible slide movement design
Rapid positioning and continuous production: The slide tube furnace achieves rapid movement and precise positioning of the furnace body through the slide mechanism at the bottom or side of the furnace body. This design enables the workpiece to rapidly cool or heat up in different temperature zones, making it particularly suitable for scenarios that require rapid cooling or heating, such as wafer rapid annealing, thin film deposition, etc.
Modularity and scalability: The furnace tube can be integrated with vacuum pumps or gas cylinders to form different processes such as vacuum rapid heat treatment or atmospheric oxidation-reduction.

2. Efficient heat treatment performance
Uniform heating: Adopting a tube furnace structure, the temperature distribution inside the furnace is uniform, ensuring that the workpiece is heated uniformly during the heating process, reducing thermal stress, and improving product quality.
Fast temperature rise and fall: The slide tube furnace is equipped with a fast temperature rise and fall function (such as moving the furnace body to expose the workpiece to cold air through the slide rail), which is suitable for processes that require rapid heat treatment (such as annealing and quenching), shortening the production cycle.
Multi zone control: Single zone or multi zone furnaces can be designed according to process requirements to achieve independent temperature control in different areas and meet complex heat treatment requirements.

3. Wide applicability
Multi material compatibility: suitable for heat treatment of various materials such as metals, ceramics, semiconductors, etc., such as quenching, tempering, annealing of metal materials, sintering of ceramic materials, and thin film deposition of semiconductor devices.
Multi process support: It can achieve heat treatment in various environments such as vacuum and atmosphere protection (such as nitrogen and argon) to meet different process requirements.

4. Safety and reliability
Multiple protection mechanisms: equipped with over temperature protection, over-voltage protection, leakage protection and other functions to ensure the safe operation of the equipment.
Sealing design: The furnace adopts a sealing structure (such as stainless steel flange sealing) to prevent gas leakage and ensure process stability.
High temperature resistant materials: Key components such as furnace tubes and heating elements are made of high temperature resistant and corrosion-resistant materials (such as high-purity quartz, corundum, resistance wire, etc.) to extend the service life of the equipment.

5. Convenient operation and intelligence
Intelligent temperature control system: using PID control or programmed temperature control, multiple temperature rise and fall curves can be set to achieve precise temperature control.
Human Computer Interaction Interface: Equipped with a touch screen or digital display panel, the operation is intuitive and simple, supporting parameter settings, status monitoring, and fault diagnosis.
Data recording and traceability: Some equipment supports recording and exporting temperature, time, and other data for process optimization and quality traceability.

6. Compact structure and energy saving
High space utilization: The slide tube furnace has a compact design and occupies a small area, making it suitable for limited space use in laboratories or production lines.
Efficient insulation: The furnace adopts efficient insulation materials such as composite alumina fibers to reduce heat loss and energy consumption.

7. Customization and Scalability
Customizable design: The furnace size, number of temperature zones, heating method and other parameters can be customized according to user needs to meet special process requirements.
Extension function: Optional communication interface, vacuum system, gas system, etc., to achieve linkage control or process upgrade with other devices.

So the slide tube furnace has the characteristic of rapid heating and cooling, which makes it widely used in the heat treatment industry!Click to learn more tube furnaces! Or click on online customer service to learn more about product information!
