A nitrogen atmosphere protection furnace is a heating device that uses nitrogen as a protective atmosphere to prevent material oxidation or other chemical reactions at high temperatures. It is widely used in fields such as metal heat treatment, ceramic sintering, and semiconductor material preparation. Let's take a detailed look at the advantages and application areas of nitrogen atmosphere protection furnaces below!

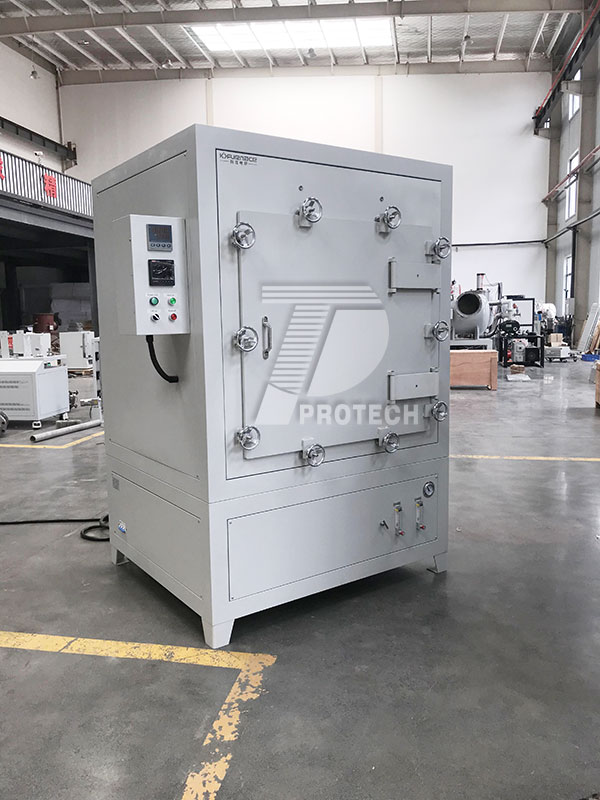

A commonly used protective furnace that can be filled with nitrogen gas (click on the image to view product details)

1. Working principle
The nitrogen atmosphere protection furnace generates heat through resistance heating elements (such as silicon molybdenum rods, resistance wires, silicon molybdenum rods) to raise the temperature inside the furnace to the set value (usually up to 1700 ℃ or even higher). At the same time, nitrogen is introduced into the furnace as an inert protective gas, creating an oxygen free or low oxygen environment, effectively isolating impurities such as oxygen and moisture in the air, and preventing materials from being oxidized, decarburized, or undergoing other harmful reactions at high temperatures. In addition, some devices are equipped with pre vacuum function to further eliminate residual air in the furnace and improve the purity of the atmosphere.

2. Core advantages
Prevent oxidation and corrosion
Nitrogen has stable chemical properties and is not easily reactive with metals, ceramics, and other materials at high temperatures. It can protect the surface quality of materials and prevent the formation of oxide scales or performance degradation. For example, during metal annealing, nitrogen protection can prevent decarburization on the surface of steel, maintaining its hardness and toughness.

Improve process stability
By precisely controlling the nitrogen flow rate, pressure, and furnace temperature, stable output of process parameters can be achieved, reducing material performance differences caused by atmosphere fluctuations. For example, in ceramic sintering, a stable nitrogen environment can promote uniform grain growth and improve product density.

Promote specific chemical reactions
In a reducing atmosphere, nitrogen can assist in the reduction of metal oxides (such as reducing iron oxide to iron), optimizing the microstructure of materials. For example, in powder metallurgy, nitrogen protected furnaces can be used to reduce metal powders, improve their purity and activity.

Energy saving and environmental protection
Compared to vacuum furnaces or hydrogen protection furnaces, nitrogen protection furnaces do not require complex gas recovery systems and have low nitrogen costs, which can reduce operating costs. At the same time, reducing harmful gas emissions meets the requirements of green manufacturing.

3. Application Fields
Metal material processing
Annealing and quenching: prevent oxidation of steel, aluminum alloys, etc. at high temperatures, and maintain surface smoothness.
Sintering and melting: used for high-temperature densification treatment of powder metallurgy, metal matrix composites, etc.

Preparation of Ceramic Materials
Sintering of alumina and silicon nitride ceramics: Nitrogen protection can suppress abnormal grain growth, improve ceramic strength and hardness.
Preparation of transparent ceramics: By reducing pores and impurities, the transparency of ceramics can be improved (such as yttrium stabilized zirconia transparent ceramics).

Semiconductors and Electronic Materials
Crystal growth: Prepare semiconductor materials such as monocrystalline silicon and silicon carbide in a nitrogen environment to avoid impurity contamination.
Packaging and Heat Sink: Sintering of heat sink materials (such as aluminum nitride ceramics) used for high-power electronic devices to enhance heat dissipation performance.

3D Printing and Additive Manufacturing
Post processing of metal 3D printing: performing stress relief annealing or hot isostatic pressing treatment on the printed parts to eliminate internal defects and improve mechanical properties.

4. Technical features
Temperature control accuracy
Adopting a PID program temperature control system, the temperature fluctuation range is ≤± 1 ℃, ensuring that the material is processed in a stable temperature environment. For example, a 1400 ℃ nitrogen protection furnace can control the temperature within ± 1 ℃ of the set value, meeting the requirements of high-precision heat treatment.

Uniformity of atmosphere
By using gas circulation systems such as fans and deflectors, nitrogen is evenly distributed in the furnace to avoid local atmospheric differences. For example, the box type atmosphere furnace adopts double-sided heating or multi zone heating methods, combined with an intelligent temperature control system, and the temperature uniformity can reach ± 5 ℃.

Security protection design
Equipped with multiple safety devices such as over temperature alarm, overcurrent protection, leakage protection, and gas leak detection to ensure the safety of equipment and personnel. For example, when the temperature inside the furnace exceeds the safe value, the system automatically cuts off the power and closes the gas valve.

Automation and Intelligence
Support preset heating curve, insulation time, and cooling rate to achieve automated operation. Some devices also have remote monitoring, data recording, and fault diagnosis functions to improve operational efficiency.

5. Selection suggestions
Temperature range
Select the rated temperature (such as 1200 ℃, 1400 ℃, 1700 ℃) according to the material processing requirements, and confirm whether the temperature uniformity meets the process requirements (such as ± 5 ℃ @ 1400 ℃).

Furnace size
Select effective loading space based on workpiece size and batch size (such as φ 200mm × H300mm) to avoid space waste or insufficient loading.

Atmosphere control ability
Confirm the nitrogen flow rate, pressure control accuracy (such as ± 0.01MPa), and whether it supports switching to other gases (such as argon and hydrogen) to meet diverse process requirements.

Safety and Compliance
Select equipment that meets certification standards to ensure compliance with safety regulations. At the same time, check if the equipment is equipped with gas leak alarm and emergency shutdown functions.

Brand and after-sales service
Prioritize selecting brands with good reputation and confirm that the manufacturer provides installation, debugging, operation training, and spare parts supply services to reduce maintenance costs in the later stage.

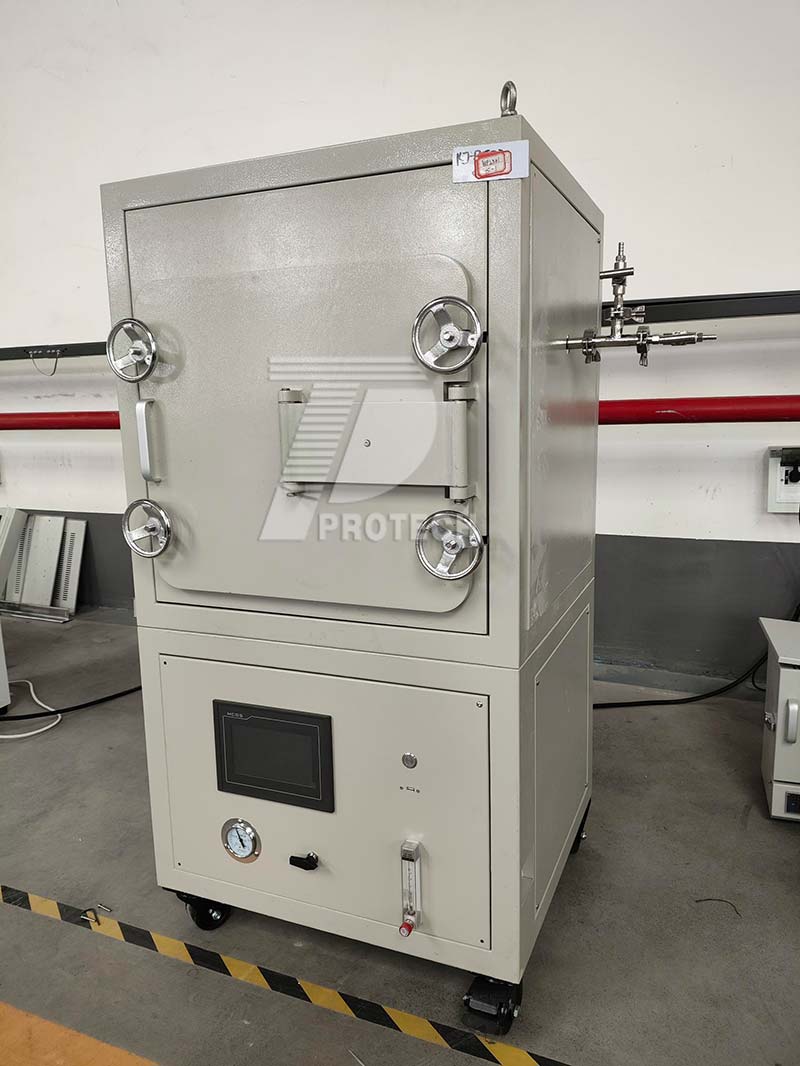

A touch screen atmosphere protection furnace that can be filled with nitrogen gas (click on the image to view product details)

Overall, nitrogen atmosphere protection furnaces, as commonly used heat treatment equipment in the metal industry, battery industry, new energy industry, etc., have a wide range of applications. Before selecting, it is necessary to communicate the parameters with relevant technical personnel in order to customize nitrogen atmosphere protection furnaces that are more suitable for one's own experiments or production!Click to learn more Atmosphere Furnaces! Or click on online customer service to learn more about product information!
