High temperature gradient experimental tube furnace is an experimental equipment that can establish a non-uniform temperature field in the axial direction of the furnace tube. It is widely used in new materials and processes such as semiconductors, nanotechnology, carbon fiber, as well as special processes such as crystal growth and glass crystallization detection. Let's take a detailed look at the introduction of the high-temperature gradient experimental tube furnace below!

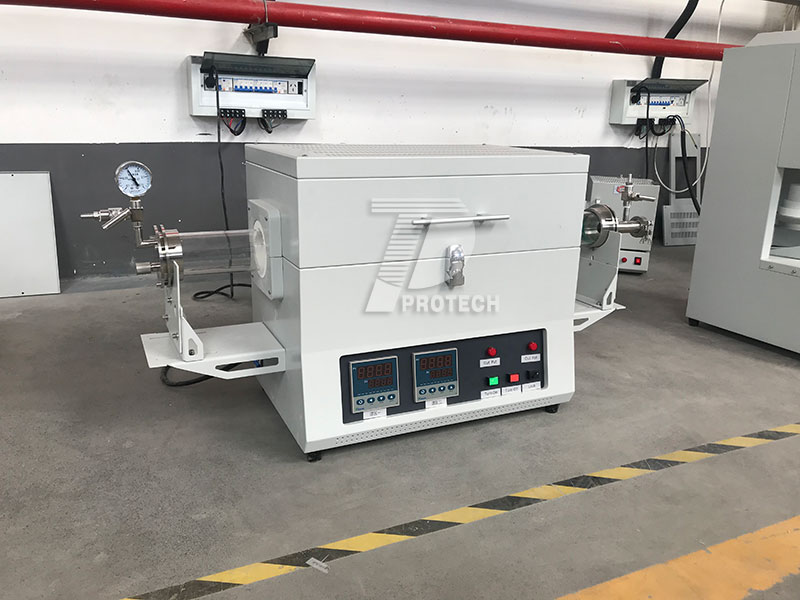

A commonly used experimental high-temperature gradient tube furnace (click on the image to view product details)

1. Working principle
The high-temperature gradient experimental tube furnace converts electrical energy into thermal energy through segmented and independently controlled heating elements, and establishes a non-uniform temperature field in the axial direction of the furnace tube. The core principles include:
Independent temperature control system: Each temperature zone adopts separate temperature sensors and power regulation modules, and precise temperature control is achieved through PID control.
Heating element layout: Heating elements are arranged unevenly according to gradient requirements, and are designed with thermal resistance of insulation materials to form a predetermined temperature distribution.
Heat transfer mode: Radiation heat transfer is the main mode in high-temperature areas, while convective heat transfer is enhanced in low-temperature areas.

2. Technical features
Temperature gradient controllable: capable of forming a stable non-uniform temperature field in the axial direction of the furnace tube according to experimental requirements.
Precise temperature control: adopting PID regulation, fuzzy control, and self-tuning functions, with high temperature control accuracy.
Multiple heating elements to choose from: Depending on the experimental temperature requirements, high thermal stability elements such as silicon carbon rods and silicon molybdenum rods can be selected.
Safety protection function: equipped with over temperature protection, leakage protection and other functions to ensure safe use.
Remote control and data recording: configurable conversion interface to achieve interconnection with computers, complete remote control, real-time tracking, historical recording, output reports and other functions.

3. Application scenarios
Semiconductor material preparation: In the growth, annealing and other processes of semiconductor materials, precise temperature gradient control is required to obtain high-quality materials.
Nanomaterial research: The preparation and performance research of nanomaterials often require specific temperature gradients.
Carbon fiber material processing: The carbonization, graphitization and other processes of carbon fiber materials require a high-temperature gradient environment.
Crystal growth: During the crystal growth process, high-quality single crystal materials can be obtained by controlling the temperature gradient.
Glass crystallization detection: By simulating the crystallization process of glass under different temperature gradients, the crystallization behavior of glass is studied.

4. Purchase suggestions
Clarify experimental requirements: Select appropriate equipment based on parameters such as maximum temperature, temperature gradient range, and furnace tube size required for the experiment.
Pay attention to device performance: Understand key indicators such as temperature control accuracy, heating speed, and insulation performance of the device.
Consider equipment safety: choose equipment with safety functions such as over temperature protection and leakage protection.
Understand after-sales service: Choose a manufacturer that provides comprehensive after-sales service to ensure that the equipment receives timely technical support and maintenance during use.

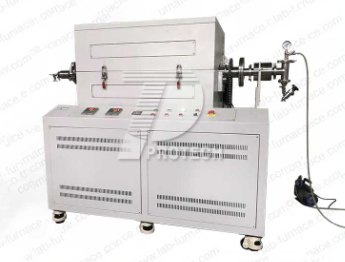

High temperature gradient experimental rotary tilting tube furnace (click on the picture to view product details)

5. Summary
In general, the high-temperature gradient experimental tube furnace has a multi temperature zone control method, which can adapt to more experimental processes. Before choosing, you can communicate with relevant technical personnel about the parameters you want, so as to customize a multi gradient tube furnace that is more suitable for your own experiment!Click to learn more Multi-Zone Tube Furnaces! Or click on online customer service to learn more about product information!
