Choosing an industrial large-scale vacuum electric furnace requires a comprehensive evaluation of six core dimensions: heating performance, vacuum system, cooling method, furnace structure, control system, safety, and maintenance. The decision should be made based on process requirements, budget, and long-term operating costs. Let's take a detailed look below!

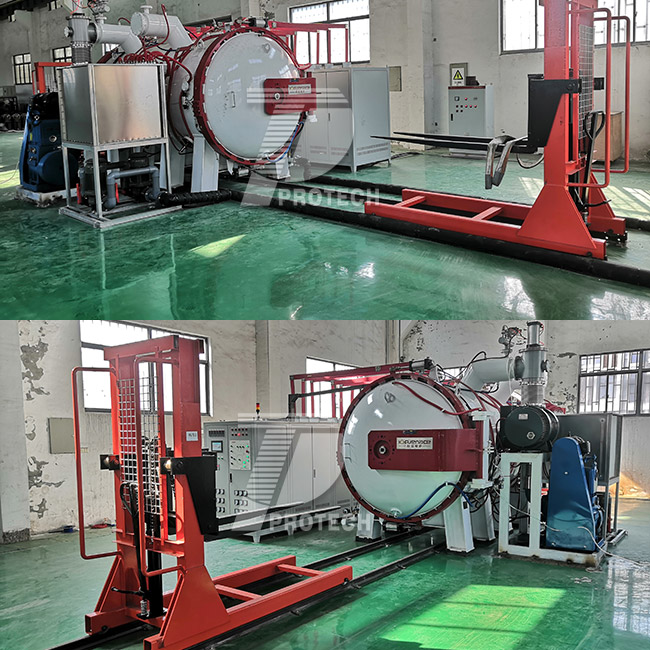

Industrial large-scale graphite vacuum electric furnace (click on the picture to view product details)

1. Heating performance: Temperature range and uniformity are the core
Temperature range matching process requirements
Ordinary heat treatment: Choose an electric furnace with a temperature range of 1600-2000 ℃ to meet the annealing and quenching needs of most metal materials.
High temperature sintering/special materials: requires an electric furnace above 2000 ℃ for sintering processes of materials such as silicon carbide and ceramics.
Key point: Avoid excessive temperature redundancy, as a high temperature range may lead to a significant increase in equipment costs. At the same time, it is necessary to confirm whether the heating element material (such as graphite, molybdenum wire) is compatible with the process material.

Temperature uniformity affects product quality
Classification standard: The first level furnace (± 5 ℃) is suitable for precision fields such as aerospace and semiconductor; The three-stage furnace (± 10 ℃) can meet the requirements of ordinary hardware processing.
Optimization technology: Choose a furnace body design with multi-layer insulation screens and zone temperature control to reduce temperature gradients. For example, electric furnaces heated with molybdenum screens have better temperature field uniformity.

2. Vacuum system: balance between ultimate vacuum degree and pumping speed
Selection of ultimate vacuum degree
Low vacuum (10-1Pa): suitable for ordinary annealing and welding processes, with low cost.
High vacuum (below 10-3Pa): Molecular pumps or diffusion pumps are required, suitable for oxidation sensitive materials (such as titanium alloys) or precision welding.
Key misconception: Blindly pursuing high vacuum may lead to the volatilization of alloy elements (such as chromium and aluminum), and the remaining amount should be set according to the material decomposition pressure.

Extraction speed and leakage rate control
Pumping speed: The large volume furnace body needs to be matched with a high pumping speed pump set (such as a Roots pump+molecular pump combination) to shorten the vacuuming time.
Leakage rate: Choose a furnace body with low leakage rate to avoid oxidation during the welding process. High quality sealing materials (such as fluororubber) and precision machining processes should be considered.

3. Cooling method: air cooling vs oil cooling vs water cooling
Air cooling
Advantages: No pollution, clean surface of parts, suitable for precision parts such as bearings and gears.
Applicable scenarios: Medium cooling rate requirements (such as processes that require tempering after quenching).
Parameter optimization: It is necessary to ensure that the cooling water flow of the heat exchanger is sufficient.

oil cooling
Advantages: Fast cooling speed, suitable for high hardness materials such as tool steel.
Risk: Surface micro carburizing may affect quality and require subsequent cleaning.
Applicable scenarios: Processes where air cooling cannot meet the cooling rate requirements.

water cooling
Advantage: The highest cooling efficiency, suitable for high-temperature rapid cooling scenarios.
Risk: The combination of metal heating plates and water cooling may cause deformation, and a hot cold separation design (such as graphite heating plates+independent water cooling sleeves) is required.

4. Furnace structure and dimensions: adaptation process and space
Structure type selection
Vertical furnace: suitable for long axis parts (such as shafts and pipes), easy to load.
Horizontal furnace: suitable for disc and plate parts, with better temperature uniformity.
Key design: Choose a double-layer water-cooled furnace shell to reduce the impact of thermal radiation on the equipment.

Match size and volume
Loading capacity calculation: Select furnace size based on the volume of parts processed in a single batch to avoid space waste or excessive loading density.
Installation space: Reserve space for equipment operation and maintenance (such as furnace door opening radius, pump unit placement area).

5. Control System: Balancing Intelligence and Reliability
Core functional requirements
Temperature control accuracy: within ± 1 ℃ (such as S-type thermocouple+PID control), meeting the requirements of precision heat treatment.
Program temperature control: supports multi-stage heating, insulation, and cooling curves to adapt to complex processes.
Data recording: Equipped with paperless recorders or SCADA systems to achieve process traceability and quality control.

Intelligent upgrade options
IoT integration: supports remote monitoring and fault warning.
Automated operation: Fully automated unmanned function, reducing manual intervention.

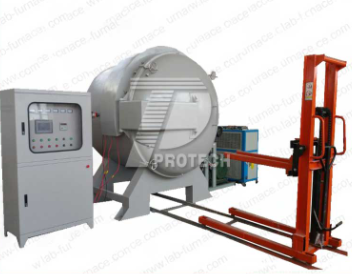

Industrial sintering furnace (click on the image to view product details)

6. Safety and Maintenance: Long term Cost Considerations
Security protection design
Overtemperature alarm: Independent overtemperature protection device to prevent heating elements from burning out.
Door control interlock: Temperature rise is prohibited when the furnace door is not closed to avoid the risk of vacuum leakage.
Emergency stop button: Quickly cut off power to respond to sudden malfunctions.

Maintain convenience
Modular design: Core components such as heating elements and vacuum pumps can be quickly replaced.
Spare parts package: Reserve key spare parts (such as sealing rings, thermocouples) to reduce downtime.
After sales service: Choose a supplier that provides online support and on-site repairs.Click to learn more Vacuum furnaces! Or click on online customer service to learn more about product information!
