In the fields of new material research and development, powder sintering, atmosphere heat treatment, and university experiments, multi gas path channel tube furnaces have become the preferred equipment to replace ordinary single gas path tube furnaces due to their customized gas path design advantages. Compared with traditional tube furnaces, multi gas channel tube furnaces can achieve independent control and more accurate proportioning of multiple gases, adapt to complex atmosphere process requirements, and greatly improve the flexibility and stability of experiments and production.Next, let's take a detailed look at the core advantages of multi gas channel tube furnaces, summarize their applicable processes and industry scenarios, provide practical references for procurement selection and process adaptation, and help users better utilize the value of equipment.

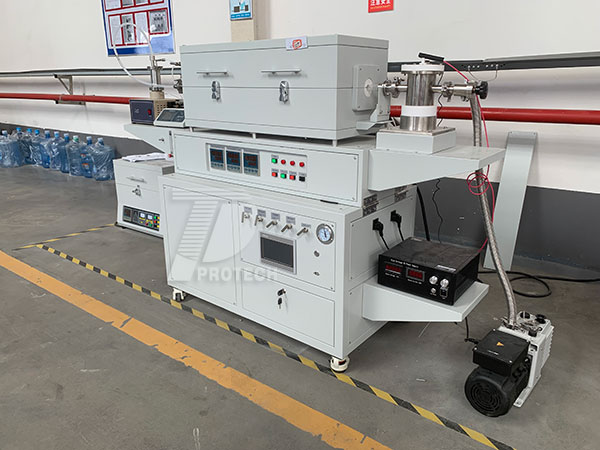

Multi channel gas path tube furnace (click on the image to view product details)

1. Core advantages of multi gas channel tube furnace (different from ordinary tube furnace)
The core competitiveness of multi gas channel tube furnaces lies in the design of "independent control of multiple gas channels", which balances precision, flexibility, and practicality. The specific advantages are as follows:

a. Multi channel gas independent regulation, more accurate and controllable ratio
This is the advantage of the core of the multi gas channel tube furnace. The equipment is equipped with 2-6 independent gas channels (customizable for more), each of which can be individually adjusted for flow rate and pressure, supporting the mixing of various gases such as inert gas, reducing gas, oxidizing gas, etc. Compared to the limitation of ordinary single gas path tube furnaces that can only introduce a single gas, multi gas path designs can achieve more accurate ratios of different gases, meet the strict requirements of gas concentration in complex atmosphere processes, and avoid the impact of uneven gas mixing on experimental or production results.

b. Strong process flexibility, adaptable to multiple scene requirements
The multi gas channel tube furnace can flexibly switch gas types and adjust gas circuit switches according to process requirements, without the need to disassemble equipment or replace pipelines, greatly improving operational efficiency. Whether it is a single gas shielded sintering or a complex process with multiple gas segmented and mixed inputs, it can be adapted faster without the need for additional equipment modification. It is suitable for full scenario use from laboratory trials to enterprise trials, reducing equipment investment costs.

c. Good air path sealing, safer experimentation/production
The equipment adopts a good sealing structure, matched with high-precision valves and flow meters, and each gas path is independently sealed to effectively prevent gas leakage and cross contamination, especially suitable for use in flammable, explosive, toxic and harmful gas scenarios. At the same time, the gas path system is equipped with pressure monitoring and overpressure alarm functions to monitor the gas path status in real time, avoid safety hazards caused by abnormal pressure, and ensure the safety of experiments and production.

d. Collaboration between temperature field and gas path to enhance product/experimental quality
The multi gas path channel tube furnace adopts a more accurate temperature control system (temperature control accuracy ± 1 ℃), and the temperature field uniformity can reach ± 3 ℃~± 5 ℃. The gas path inlet is coordinated with temperature control to achieve the full process automation control of "heating ventilation insulation cooling". The gas is evenly distributed inside the furnace tube, in full contact with the material, effectively avoiding material oxidation and decarburization, improving the surface quality and performance stability of the sintered and heat-treated products, reducing experimental errors and product scrap rates.

e. Highly customizable and adaptable to personalized craftsmanship
According to the personalized needs of different industries and processes, the multi gas channel tube furnace can customize parameters such as gas path quantity, gas path type (such as normal pressure gas path, vacuum gas path), flow range, temperature control accuracy, etc. It can also be matched with program temperature control, remote monitoring and other functions to adapt to the special requirements of different materials and processes, with much more flexibility than ordinary tube furnaces.

2. Applicable processes and industry scenarios for multi gas channel tube furnaces
The multi gas path channel tube furnace is widely used in various fields such as university research, new material development, powder metallurgy, electronic ceramics, etc. due to its multi gas path control and flexible process adaptability. The core applicable processes are as follows:

a. Atmosphere sintering process
Suitable for sintering scenarios that require protection from inert gases (argon, nitrogen) and reducing gases (hydrogen, ammonia decomposition gas), such as ceramic powder sintering, metal powder sintering, lithium battery material sintering, etc. Multiple gas paths can achieve a mixed process of "inert gas protection+reducing gas assistance", preventing material oxidation at high temperatures and improving the density and performance of sintered materials.

b. Oxidation-reduction process
Suitable for processes that require segmented introduction of oxidizing gases (oxygen, air) and reducing gases, such as catalyst calcination, metal oxide reduction, powder oxidation treatment, etc. Independent control of multiple gas paths can more accurately regulate the gas types and concentrations at different stages, achieving orderly switching between oxidation and reduction processes and ensuring process stability.

c. Gas doping process
Widely used in the field of new material research and development, such as gas doping experiments for semiconductor materials, photovoltaic materials, and graphene materials. By introducing doping gas through multiple gas paths, the doping concentration and uniformity can be controlled, helping R&D personnel optimize material properties and improve experimental efficiency and accuracy.

d. University research experiments
Suitable for experimental teaching and research projects in materials science, chemical engineering, metallurgical engineering and other majors in universities, it can meet the needs of multiple types and variables of experiments, help researchers conduct material performance research in complex atmospheres, and improve the accuracy and reliability of experimental data.

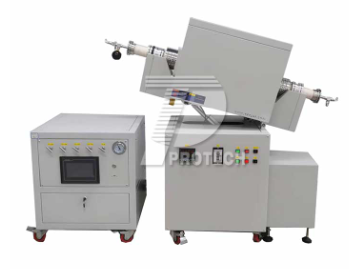

Rotating and tilting multi gas channel tube furnace (click on the image to view product details)

3. Summary
The multi gas channel tube furnace, with its core advantages of "independent control of multiple gas paths, flexible adaptation of processes, safety and stability, and customization", solves the pain points of single gas path and limited processes in ordinary tube furnaces, and has become the core equipment for complex atmosphere experiments and production. Its applicable scenarios cover multiple fields such as university research, new material development, powder metallurgy, electronic ceramics, etc. It can adapt to various process requirements such as atmosphere sintering, oxidation-reduction, gas doping, etc. Whether it is laboratory trials or enterprise trials, choosing a multi gas channel tube furnace can improve experimental/production efficiency, ensure product/experimental quality, and reduce comprehensive investment costs.Click to learn more customized tube furnaces! Or click on online customer service to learn more about product information!
