In processes such as new material sintering, powder heat treatment, and catalyst calcination, the 1200 degree rotary tube furnace has become a commonly used equipment in laboratories and small-scale production lines due to its advantages of continuous operation, uniform heating, and controllable atmosphere. However, the quality of products in the market varies greatly, with large differences in configuration, inflated quotations, and lack of after-sales service. Many users encounter problems such as slow heating, easy cracking of furnace tubes, unstable rotation, and inaccurate temperature control after purchasing. Below, based on industry experience, we will explain in detail how to purchase a 1200 degree rotary tube furnace without stepping on pits, helping you choose stable, durable, and cost-effective equipment.

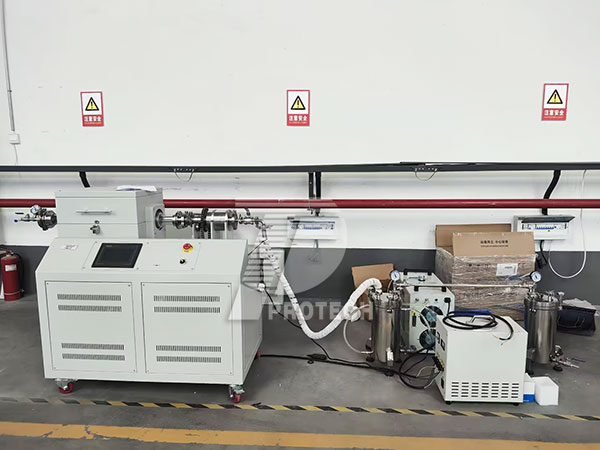

Customized 1200 degree rotary tube furnace (click on the image to view product details)

1. First, clarify the usage requirements to avoid blind selection
The first step in purchasing a 1200 degree rotary tube furnace is not to compare prices, but to accurately match one's own process, which is the core prerequisite for avoiding pitfalls.
Determine the working temperature and long-term usage temperature
The nominal temperature of the equipment is 1200 ℃, and it is necessary to distinguish between peak temperature and long-term operating temperature. For most working conditions, it is recommended to use the furnace body and heating elements at a temperature not exceeding 1100 ℃ for a long time to avoid overload aging and shorten the service life.
Clarify material characteristics and processing capacity
Select the pipe diameter, speed range, and furnace tube length based on the particle size, bulk density, and processing capacity of the powder. If the speed is too fast, it can easily cause material splashing, while if it is too slow, it can result in uneven heating.
Confirm if atmosphere protection is needed
When it comes to oxidation, reduction, and inert gas protection processes, it is necessary to choose a sealed rotary tube furnace equipped with inlet, outlet, and pressure regulating devices. Ordinary open type furnaces cannot meet the requirements of atmospheric processes.
Determine the usage scenario
Laboratory research and development focuses on convenient temperature control, compact and flexible; Pilot and mass production focus on continuous operation, strong stability, and easy maintenance, with significant differences in configuration and structure between the two. Choosing the wrong one directly affects the effectiveness of use.

2. Key inspection of core components, resolutely reject inferior configurations
The durability and stability of a 1200 degree rotary tube furnace depend on its four core components, which are also the easiest places to cut corners.
The material of the furnace tube is of utmost importance
Aluminum oxide corundum tubes or quartz tubes are commonly used under 1200 ℃ working conditions. Corundum tube has high cost-effectiveness and is suitable for static and mild temperature rise and fall; Quartz tubes are inexpensive, wear-resistant, and more suitable for continuous rotation and frequent start stop processes. They are also easy to observe the heat treatment effect of materials.
Key points for avoiding pitfalls: Be cautious of using low-quality thin tube fireplace tubes with low-priced equipment, as they are prone to deformation and cracking at high temperatures, posing safety hazards.
Heating element and insulation layer
Better equipment uses high-temperature resistance wire and resistance strip heating, which heats up quickly and has a longer lifespan; The insulation layer uses high-purity alumina fiber, which has good insulation effect and low energy consumption.
Key points for avoiding pitfalls: Poor quality products use low-quality heating wires, which are prone to burning out, have thin insulation layers, suffer from large heat loss, and have high electricity costs for long-term use.
Rotating transmission system
A stable rotating mechanism should be equipped with a speed regulating motor, gear/chain transmission, and supporting rollers, with smooth operation, adjustable speed, and no obvious shaking.
Key points for avoiding pitfalls: Simple transmission structure and insufficient motor power can cause furnace tube shaking and unstable speed, leading to uneven sintering of materials.
Accuracy of temperature control system
Qualified equipment should adopt intelligent digital temperature controllers, support programmed temperature control, with a temperature control accuracy of ± 1 ℃, and have over temperature alarm and power-off protection functions.
Key points for avoiding pitfalls: Equipment without temperature control protection and with large temperature deviation is prone to material scrap and even damage to the furnace body.

3. Be wary of price traps, there are many hidden dangers behind low prices
Many users only focus on low prices when making purchases, ignoring configuration and quality, ultimately falling into a trap.
Ultra low prices are mostly for discounted products
Eliminating the atmosphere interface, temperature control program, sealing components, and speed regulation function may seem cheap, but in reality, it cannot meet the process requirements.
No warranty, no after-sales service
Low priced equipment is mostly produced by small workshops without professional installation and debugging. After the furnace tube ruptures and the motor is damaged, it cannot be repaired and can only be scrapped as a whole.
Virtual label parameters
The nominal temperature is 1200 ℃, but in reality it is difficult to operate stably at 1000 ℃. The heating rate is slow, and the energy consumption far exceeds the labeled data.
A reasonable price should match the material, configuration, and after-sales service, not the lower the better, cost-effectiveness is the key.

4. Check the manufacturer's qualifications and after-sales service to ensure long-term use
Choose a professional high-temperature furnace manufacturer
Priority should be given to manufacturers with integrated research and development, production, and after-sales capabilities. The factory size, production process, and successful cases can be evaluated to avoid middlemen reselling.
Confirm complete after-sales service
Legitimate manufacturers provide free installation and debugging, operation training, and quality assurance services. There is a stable supply of vulnerable parts such as furnace tubes, and problems can be quickly responded to.
Request technical parameters and qualification certificates
Before procurement, it is required to provide a detailed configuration list, temperature control report, and material certification to avoid discrepancies between verbal promises and actual delivery.

5. Key points of on-site acceptance: do not step on the pit when receiving goods
After the equipment arrives, it is necessary to conduct acceptance inspection:
Check the furnace tube for cracks, damage, and no deformation in appearance;
Test whether the rotation runs smoothly, without any noise or shaking;
No load temperature rise test, check the heating speed and temperature control accuracy;
Test the sealing performance of the atmosphere to ensure no air leakage;
Check if the accessories, instructions, and quality assurance documents are complete.

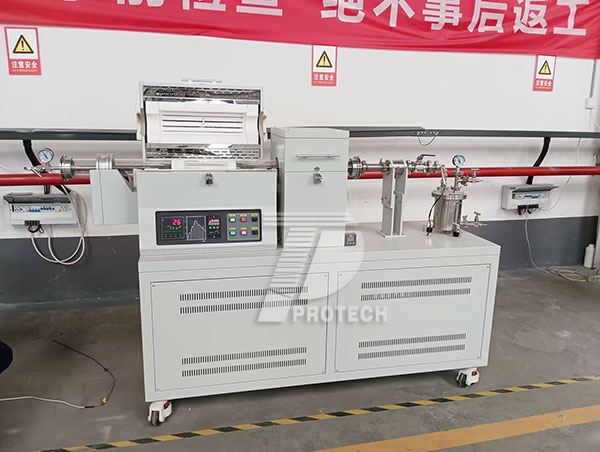

1200 degree rotary tube furnace capable of evacuating the atmosphere (click on the image to view product details)

Summary
To avoid pitfalls when purchasing a 1200 degree rotary tube furnace, the key is to clarify the requirements, identify the core configuration, reject the low price trap, and choose a reputable manufacturer. Don't just focus on surface prices, pay more attention to equipment stability, service life, and after-sales service. A high-quality 1200 degree rotary tube furnace can significantly improve process efficiency, reduce maintenance costs, and avoid repeated rework and additional expenses in the later stage. Before purchasing, compare and inspect more to select the equipment that is truly suitable for oneself.Click to learn more rotary tube furnaces! Or click on online customer service to learn more about product information!
