1. Overview of replaceable rotary tube furnace products
The replaceable rotary tube furnace is a versatile high-temperature heat treatment equipment with strong versatility. Unlike traditional fixed tube furnaces, the highlight of this equipment is that the furnace tubes can be quickly disassembled and freely replaced. The equipment supports the interchangeable use of multiple materials for furnace tubes, and one device can meet various experimental and process requirements, effectively reducing research and equipment procurement costs. This type of rotary tube furnace uses silicon carbon rods for heating, with a maximum operating temperature of 1400 ℃. It can be designed as a multi zone temperature control structure, with a uniform and stable temperature field. It is widely used in university laboratories, new material research and development, chemical powder, new energy materials, metallurgical industry and other fields. It is currently a cost-effective multifunctional heat treatment furnace on the market.

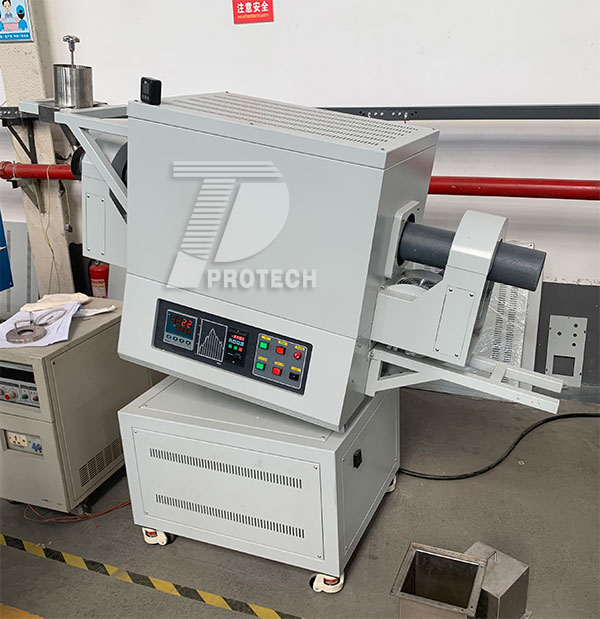

An experimental rotary tube furnace with easy disassembly and replacement of furnace tubes (click on the image to view product details)

2. Advantages of replaceable furnace tube structure design
a. Multi material furnace tube universal, strong compatibility
This rotary tube furnace adopts standardized flange sealing interfaces, which can quickly replace furnace tubes of different materials without changing the furnace structure. Suitable furnace tubes include quartz tubes, metal tubes, silicon carbide tubes, corundum tubes, mullite tubes, graphite tubes, etc. Different materials of furnace tubes correspond to different temperature ranges, different acid-base atmospheres, and different reaction environments. Users can freely switch according to the characteristics of the experimental materials, truly achieving multi-purpose use of one machine.
b. Rotating inclined structure, uniform heating of materials
The equipment is equipped with a mechanical rotating and tilting mechanism, and the furnace tube can rotate at a constant speed and the angle can be adjusted. Powder materials continuously roll and flow in the furnace to avoid material accumulation, sintering agglomeration, and uneven heating. Compared to ordinary fixed tube furnaces, rotary tube furnaces produce materials with higher purity, more complete reactions, and better product consistency, making them very suitable for processes such as powder modification, high-temperature calcination, drying and impurity removal.
c. Multi zone independent temperature control, high temperature control accuracy
The equipment adopts a multi zone segmented temperature control design, with each heating zone independently controlled by temperature, and equipped with high-precision thermocouples to collect temperature, with a temperature control accuracy of ± 1 ℃. The constant temperature range inside the furnace is longer, the temperature gradient is stable, and it can simulate complex heating curves, meeting high standard experimental requirements such as gradient sintering, slow annealing, and constant temperature insulation.

3. Core configuration and hardware parameters
a. Heating system
The heating element adopts silicon carbon rod, which is resistant to high temperature, oxidation, and has a long service life. The maximum working temperature can reach 1400 ℃. The heating rate is controllable, freely adjustable from 1-10 ℃/min, and the heating is stable without temperature difference impact, protecting the material structure from damage.
b. Vacuum and Atmosphere System
The whole machine adopts a high sealing flange structure with good sealing performance, which can achieve vacuum pumping treatment and can also be filled with inert protective atmospheres such as nitrogen and argon. Effectively isolate oxygen, prevent high-temperature oxidation of materials, and adapt to heat treatment processing of reducing materials, easily oxidizable materials, and special powders.
c. Security protection system
The device comes with multiple safety protection functions, including over temperature alarm automatic power-off, thermocouple disconnection protection, overload protection, and high temperature interlock protection. Once the equipment experiences abnormal temperature rise or sensor failure, the system will automatically shut down and cut off power to eliminate safety hazards. The operation is simple, safe, and reliable.

4. Applicable process instructions for various types of furnace tubes
-Quartz tube: with good transparency and strong corrosion resistance, suitable for low-temperature and ordinary atmosphere material sintering;
-Corundum tube/Mullite tube: resistant to high temperature and corrosion, suitable for high-temperature calcination at 1200 ℃ -1400 ℃;
-Silicon carbide tube: fast thermal conductivity, high strength, suitable for continuous heat treatment of large quantities of powders;
-Metal tube: Strong sealing performance, suitable for high vacuum special processes;
-Graphite tube: resistant to high temperature reducing atmosphere, suitable for sintering carbon materials and negative electrode materials.
Users can freely mix and replace materials based on their acidity, sintering temperature, and ambient environment, without the need to purchase new equipment, significantly reducing experimental investment costs.

5. Main application areas of the equipment
-University research: material annealing, powder calcination, atmosphere experiments, teaching demonstrations;
-New energy industry: modified sintering of battery powders, electrode materials, and energy storage materials;
-Chemical industry: drying, purification, and catalyst preparation of chemical powders;
-Ceramic materials: special ceramics, nano ceramic powder high-temperature treatment;
-Metallurgical industry: metal powder reduction, mineral high-temperature roasting.

6. Non standard customized services
This replaceable rotary tube furnace supports all-round non-standard customization: furnace tube diameter, furnace body length, number of temperature zones, rotation angle, vacuum configuration, and gas path number can all be customized according to needs. Manufacturers can tailor exclusive heat treatment equipment based on customer experimental processes, material characteristics, and production capacity requirements. The equipment undergoes strict testing before leaving the factory, with a stable overall structure, low failure rate, and simple maintenance in the later stage.

7. Summary
The replaceable furnace tube rotary tube furnace has become a popular heat treatment equipment in laboratories and small and medium-sized mass production due to its advantages of universal multi material furnace tubes, multi-purpose use, uniform rotating heating, and more accurate temperature control in multiple temperature zones. 1400 ℃ high temperature heating, dual-use vacuum atmosphere, multiple safety protections, suitable for processing most powder materials, inorganic materials, and new energy materials. For users who need to frequently change experimental processes and develop multiple materials, this universal heat treatment equipment has higher cost-effectiveness and stronger practicality.

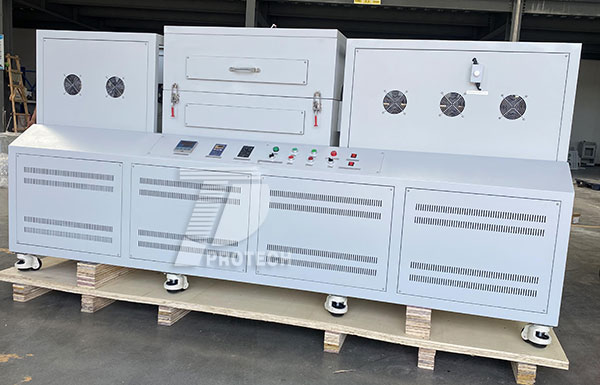

Large diameter production type replaceable furnace tube rotating tube furnace (click on the picture to view product details)

Our company specializes in producing replaceable rotary tube furnaces, high-temperature muffle furnaces, vacuum sintering furnaces, and multi temperature zone tube furnaces. We support non-standard customization and have no intermediaries at the source. We provide free technical solutions and equipment parameters. If you need to purchase or customize equipment, please feel free to contact us by phone or private message.Click to learn more customized rotary tube furnaces! Or click on online customer service to learn more about product information!
