In the field of metal connection technology, vacuum brazing furnaces and atmosphere brazing furnaces are mainstream core equipment, widely used in industries such as aerospace, automotive manufacturing, electronic power, medical equipment, etc. Many companies are indecisive when choosing between vacuum brazing furnaces and atmosphere brazing furnaces? There is actually no absolute superiority or inferiority, the key lies in the three core dimensions of welding quality, applicable scenarios, and cost efficiency. Below, we will delve into these three dimensions to help you match equipment more accurately and avoid selection errors.

A commonly used atmosphere brazing furnace (click on the image to view product details)

1. Welding quality dimension: Vacuum brazing furnace is superior, with both high cleanliness and strength
Welding quality is the core of brazing process, which directly determines the service life and reliability of products, and there is a significant gap in quality between the two.
Vacuum brazing furnace: excellent welding environment
The vacuum brazing furnace uses a combination of mechanical pumps and diffusion pumps to reduce the pressure inside the furnace to a high vacuum state of 10 ⁻ Pa, isolating impurities such as oxygen and water vapor. Outstanding core quality advantages:
Almost oxidized, high cleanliness: no oxygen involved, the surface of the workpiece will not oxidize or decarburize, the brazing seam is bright and dense, there is no residual brazing agent, and no subsequent cleaning process is required. The vacuum environment can also evaporate and remove oil stains and dust on the surface of the workpiece, with a self-cleaning effect.
High joint strength and stability: The brazing material is uniformly spread and penetrated in a pure environment, forming a dense weld without pores and inclusions. The strength is 10% to 20% higher than that of atmosphere brazing, and the corrosion resistance is stronger. After stabilizing the process parameters, the quality consistency of each furnace is very good, suitable for high-precision products.
Suitable for active metals and precision structures: It can easily weld high active materials such as titanium alloys, high-temperature alloys, stainless steel, as well as precision structures such as honeycomb interlayers and complex cavities, and complete multi seam brazing in one go.
Atmosphere brazing furnace: stable quality but limited
The atmosphere brazing furnace is filled with protective gases such as nitrogen, argon, hydrogen, or dissociated ammonia to form an inert/reducing atmosphere and prevent oxidation. The quality characteristics are as follows:
Anti oxidation but average cleanliness: Protective gas can reduce oxidation, but cannot completely eliminate trace impurities residue. Weld seams are prone to slight oxidation layers and require subsequent cleaning to remove flux residue.
Medium joint strength: The weld density is slightly inferior to vacuum brazing, with a higher risk of porosity and inclusions, and weaker long-term corrosion resistance. It is not suitable for high-strength key components.
Limited temperature uniformity: The continuous atmosphere furnace has a long heating area, slightly poor heating uniformity of the workpiece, and complex structures or thin-walled workpieces are prone to deformation.
Quality dimension conclusion: Pursuing ultra-high cleanliness, high strength, and high stability (such as aviation engine blades, medical implants, IGBT water-cooled radiators), vacuum brazing furnaces are preferred; Atmospheric brazing furnace can be used for ordinary precision and non critical components.

2. Applicable scenario dimension: Vacuum tends to be high-end precision, atmosphere tends to be batch universal
Due to differences in process characteristics, the two have differentiated application scenarios, covering different industries and product requirements.
Vacuum brazing furnace: focusing on the precision field
With a high-purity welding environment, we specialize in high value-added, high-precision, and small batch products. Our core scenarios include:
Aerospace: key components such as turbine blades, combustion chambers, honeycomb sandwich structures, nickel based high-temperature alloy pipelines, etc.
New Energy and Electronics: Power Battery Package Aluminum Alloy Liquid Cooled Plate, Power Module Ceramic Package, Microwave Device Airtight Package.
Medical devices: sterile and highly reliable components such as pacemaker casings, titanium alloy implants, precision sensors, etc.
Nuclear energy industry: environmental components such as nuclear fuel elements, control rods, high-temperature vacuum collectors, etc.
Atmosphere brazing furnace: focusing on universal batch scenarios
With low cost, high efficiency, and continuous production as the core, it is suitable for mid to low end and large-scale products. The core scenario is:
Automotive manufacturing: aluminum/copper heat exchangers and piping accessories such as radiators, condensers, evaporators, filters, etc.
Home appliance industry: air conditioning, refrigerator refrigeration pipelines, copper aluminum connecting components, with large quantities and moderate precision requirements.
Hardware and General Machinery: Non precision components such as ordinary stainless steel fittings, copper alloy joints, and small and medium-sized radiators.
Continuous production line: Some customized atmosphere furnaces can achieve 24-hour continuous operation, suitable for large-scale production of single models.
Scenario dimension conclusion: higher precision, high added value, small batch selection of vacuum brazing furnace; Universal standard, large-scale, low-cost selected atmosphere brazing furnace.

3. Cost and efficiency dimensions: Atmosphere brazing furnace offers higher cost-effectiveness
The cost includes equipment investment, operating energy consumption, and production efficiency. The overall cost of atmosphere brazing furnace is lower, and the long-term quality cost of vacuum brazing furnace is better.
Vacuum brazing furnace: high investment, low efficiency, high energy consumption
High operating energy consumption and low efficiency: The vacuum pumping, heating, and insulation cycles are long, and the time consumption for a single furnace is long, which is multiple times that of an atmosphere furnace.
High maintenance costs: Vacuum pumps, seals, and heating elements are prone to wear and tear, with high annual maintenance costs and high requirements for operational skills.
Atmosphere brazing furnace: low input, high efficiency, low energy consumption
Moderate equipment investment: no need for complex vacuum systems, low supporting costs.
Efficient operation and low energy consumption: capable of continuous operation, with high production capacity; The cost of protective gas is controllable, and nitrogen can be recycled and reused.
Easy maintenance: The structure is simple, without precise vacuum components, and the maintenance cost is only one-third of that of a vacuum furnace. Ordinary workers can operate it after training.
Cost efficiency conclusion: Due to limited budget and the pursuit of low-cost production in large quantities, choose an atmosphere brazing furnace; Adequate budget, emphasis on long-term quality stability, and reduction of after-sales costs, choose vacuum brazing furnace.

4. Core Summary and Selection Suggestions

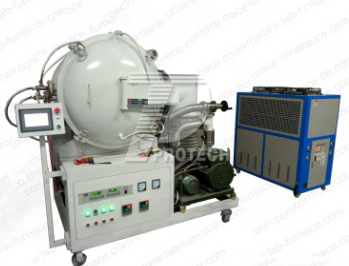

Commonly used vacuum brazing furnaces (click on the image to view product details)

Selection Recommendation
If the product is used for core components in aviation, medical, and new energy industries with sufficient budget, vacuum brazing furnaces are preferred for lower long-term quality costs.
If the product is a car radiator, home appliance pipeline, or ordinary hardware, pursuing cost-effectiveness and production capacity, the atmosphere brazing furnace is preferred.
Selecting vacuum furnaces for small batches, multiple varieties, and precision parts; Select atmosphere furnace for single model, large batch, and ordinary parts.Click to learn more customized vacuum furnaces or customized atmosphere furnaces! Or click on online customer service to learn more about product information!
