In the research and development of new materials, powder synthesis, sintering of inorganic materials, and gas-phase deposition experiments, ordinary single temperature zone tube furnaces can only provide a single constant temperature range, which has become increasingly difficult to meet the experimental and production needs of complex processes. The multi zone tube furnace, with its independently controllable heating sections, can construct multiple constant temperature zones at different temperatures inside the same furnace tube, better adapting to special processes such as gradient sintering and step-by-step heat treatment. It has become a commonly used heat treatment equipment in university laboratories, research institutes, and new material enterprises.

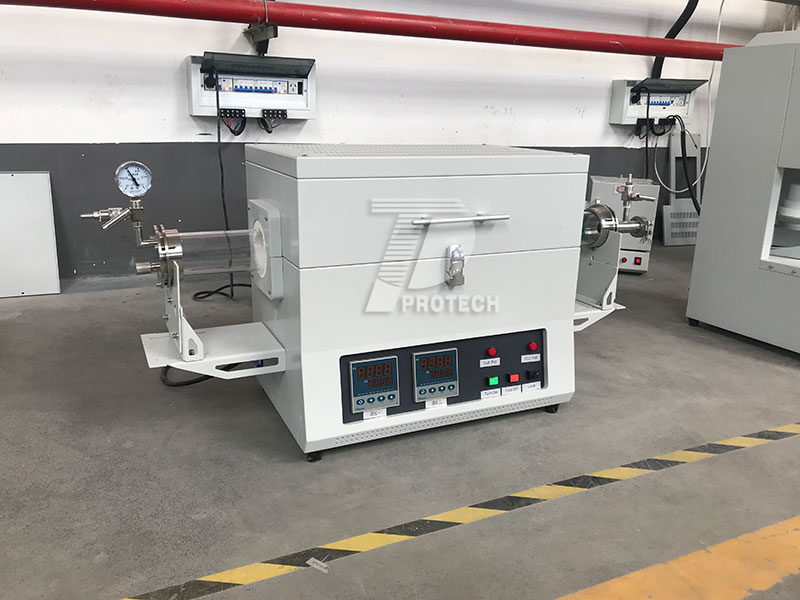

Compare basic and commonly used two temperature zone tube furnaces (click on the image to view product details)

1. What is a multi zone tube furnace?
The multi temperature zone tube furnace is different from the conventional single temperature zone tube furnace. The equipment is equipped with two or more independent heating systems and temperature control instruments. Each temperature zone can be separately set with temperature and temperature rise and fall curves. Within the same furnace tube, different sections can maintain different temperatures, forming a continuous or segmented temperature field inside the furnace tube.
The number of temperature zones is commonly available in dual temperature zones, triple temperature zones, quadruple temperature zones, and multi temperature zones. Depending on the process requirements, each temperature zone can achieve synchronous heating or differentiated temperature control. Can be paired with metal tubes, quartz tubes, and corundum tubes, compatible with atmospheres and vacuum environments, supporting the passage of protective and reactive gases, and suitable for experimental small-scale to pilot scale production.

2. What can the core of a multi temperature zone tube furnace do?
(1) Gradient sintering (core application)
Gradient sintering is a signature process of multi temperature zone tube furnaces. A continuous temperature gradient from low temperature to high temperature is set on a furnace tube, and the sample can be placed in the gradient temperature field or moved between different temperature zones.
Materials undergo material diffusion, crystal transformation, and grain growth at different temperature environments to screen for better sintering temperatures and study the influence of temperature on the microstructure and properties of materials.
Compared to multiple repeated experiments, gradient sintering can complete sample preparation under multiple temperature conditions in one experiment, greatly saving experimental cycles and reducing consumables and time costs.
(2) Step by step heat treatment process
Many new materials cannot undergo a single constant temperature process, and require a segmented heat treatment process of low-temperature pretreatment, intermediate temperature reaction, and finally high-temperature sintering.
The multi temperature zone tube furnace has independent temperature control for each temperature zone. Materials can be pushed and moved through the low-temperature section, medium temperature section, and high-temperature section in sequence to complete the entire step-by-step process of drying, decomposition, carbonization, and sintering. There is no need to repeatedly raise or lower the furnace temperature, and the process continuity is stronger.
(3) Gas phase synthesis and chemical gas phase reaction
Suitable for gas transport, CVD vapor deposition, and material vapor synthesis. The precursor is placed in the low temperature zone and volatilized by heating. The gaseous substances are carried by the carrier gas to the high temperature zone, and reactive deposition occurs on the substrate surface to prepare films, whiskers, and nano powder materials. Controlling the volatilization temperature and deposition temperature in different temperature zones is difficult to achieve with single temperature zone equipment.
(4) Sample annealing, crystal structure control, thermal decomposition experiment
Complete segmented annealing and pyrolysis for ceramic powders, lithium battery materials, catalytic materials, and inorganic crystals. The low-temperature stage completes precursor decomposition to remove impurities, while the high-temperature stage completes crystallization. Step by step temperature control reduces material cracking and phase transition defects, improving product consistency.

3. The main application industries of multi temperature zone tube furnace
Universities and research laboratories: Basic research on new materials, screening process parameters for gradient sintering, experiments on inorganic non-metallic, ceramic, and crystalline materials.
New energy materials: positive and negative electrode materials for lithium and sodium batteries, powder carbonization, pyrolysis, and crystal structure control.
Inorganic ceramic powder: ceramic powder sintering, fluorescent powder, piezoelectric ceramic gradient process research.
Preparation of nanomaterials: vapor phase synthesis of nanowires, nano powders, vapor phase transport growth of crystals.
Chemical materials: catalyst calcination, precursor thermal decomposition, and stepwise reaction under ambient conditions.

4. What are the key parameters to consider when choosing a multi zone tube furnace?
Number of temperature zones: Dual temperature zones are suitable for simple gradient processes; The three temperature zone and four temperature zone are suitable for complex stepwise heat treatment; The more temperature zones there are, the higher the equipment cost. Choose according to your needs.
Independent temperature control for each temperature zone: Each temperature zone must be equipped with an independent temperature controller, and the heating program can be edited separately. Shared temperature control is not allowed.
Furnace tube material: High temperature conditions use corundum tubes; Quartz tubes are selected for medium and low temperature corrosive atmospheres.
Temperature index: commonly used 1000-1200-1400-1600 ℃, with different maximum temperatures to match the sintering temperature of the material.
Atmosphere and vacuum configuration: Select gas mass flow meters and vacuum units according to the process to achieve atmosphere protection or vacuum environment.
Optional feeding mechanism: for continuous gradient sintering, a rotating tilting mechanism can be configured to enable sample movement in different temperature ranges.

5. What is the difference between a multi zone tube furnace and a regular single zone tube furnace?
Single temperature zone tube furnace, with only one temperature in the entire heating zone, suitable for simple sintering and annealing; To conduct multiple temperature experiments, it is necessary to repeat the experiment multiple times.
A multi zone tube furnace with multiple constant temperature zones inside the furnace tube enables gradient sintering and step-by-step heat treatment in one experiment, making it suitable for process exploration in the research and development stage and quickly finding better process conditions. The disadvantage is that the equipment cost is higher than that of a single temperature zone, and it is more inclined towards research and development. Continuous rotary equipment is generally used for large-scale production.

Customized dual tube multi temperature zone tube furnace (click on the image to view product details)

6. Summary
Overall, the core value of a multi temperature zone tube furnace is to construct multiple independent temperature ranges within the furnace, enabling gradient sintering and step-by-step heat treatment.
For scientific research and new material enterprises that require process exploration, material screening, and gas-phase synthesis, multi temperature zone tube furnaces are very suitable experimental equipment, which can greatly shorten the research and development cycle of new materials. When selecting, consider the target temperature, number of temperature zones, atmosphere conditions, and furnace tube size to choose equipment that is suitable for your own process. For special processes, you can also choose non-standard customization from the manufacturer.Click to learn more multi zone tube furnaces! Or click on online customer service to learn more about product information!
