High Temperature Vacuum furnace

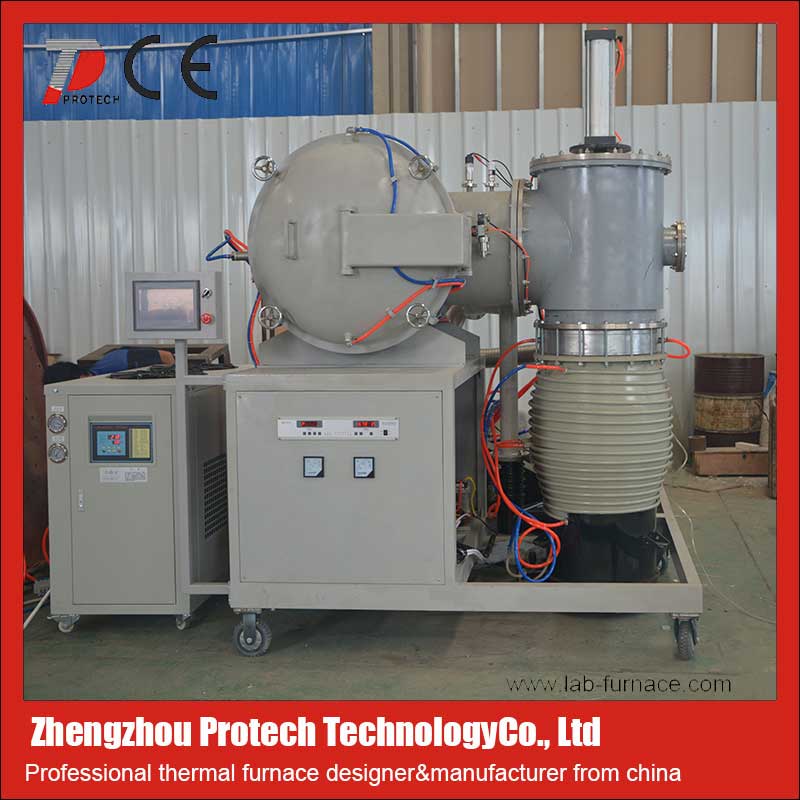

High Temperature Vacuum furnace

Model:PT-1600V

Description:High Temperature Vacuum furnace is mainly used in sinter cemented carbides, stainless steel line molding, stainless steel fiber, magnetic materials,and ceramic materials,and it also can be used in power metallurgy, refractory metals and magnetic material industry.

Inquire Now

Introduction:
High Temperature Vacuum furnace mainly find application in the following industries:
(1)aero-engine manufacturing
(2)industrial gas turbine manufacturing
(3)heat exchanger manufacturing
(4)commercial heat treatment
(5)manufacturing of sintered components
(6)research centers
Features of High Temperature Vacuum furnace:
1.Maximum energy efficiency is achieved by surrounding chamber thermal-efficient alumina fiber ceramic insulation.
2.Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
3.PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
4.Power control with 30 segments programmable.



We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!

Technical parameters of High Temperature Vacuum furnace :
Model PT-1700V
Max. temperature 1700℃
Working temperature 1600℃
Temperature accuracy +/-1℃
Heating rate 0-20C/min
Dimension 200×200×300mm
Temperature control Digital 50 segments programmable
Max. vacuum level 7*10ˆ(-3)Pa
Heating element MoSi2
Refractory material Alumina ceramic fiber
Thermal couple B type
Rated power 5KW
Working voltage AC 110-480V  50-60Hz
Warranty 12 month (exclusive wearing part)
High Temperature Vacuum furnace can be customized according to customers’requirements.

Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
