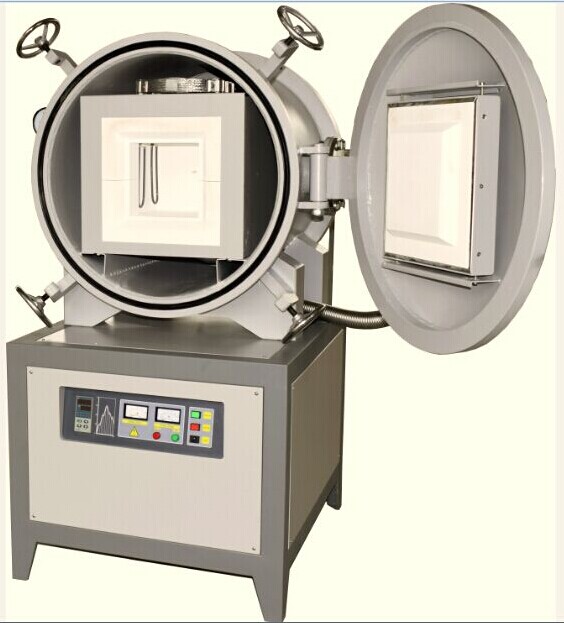

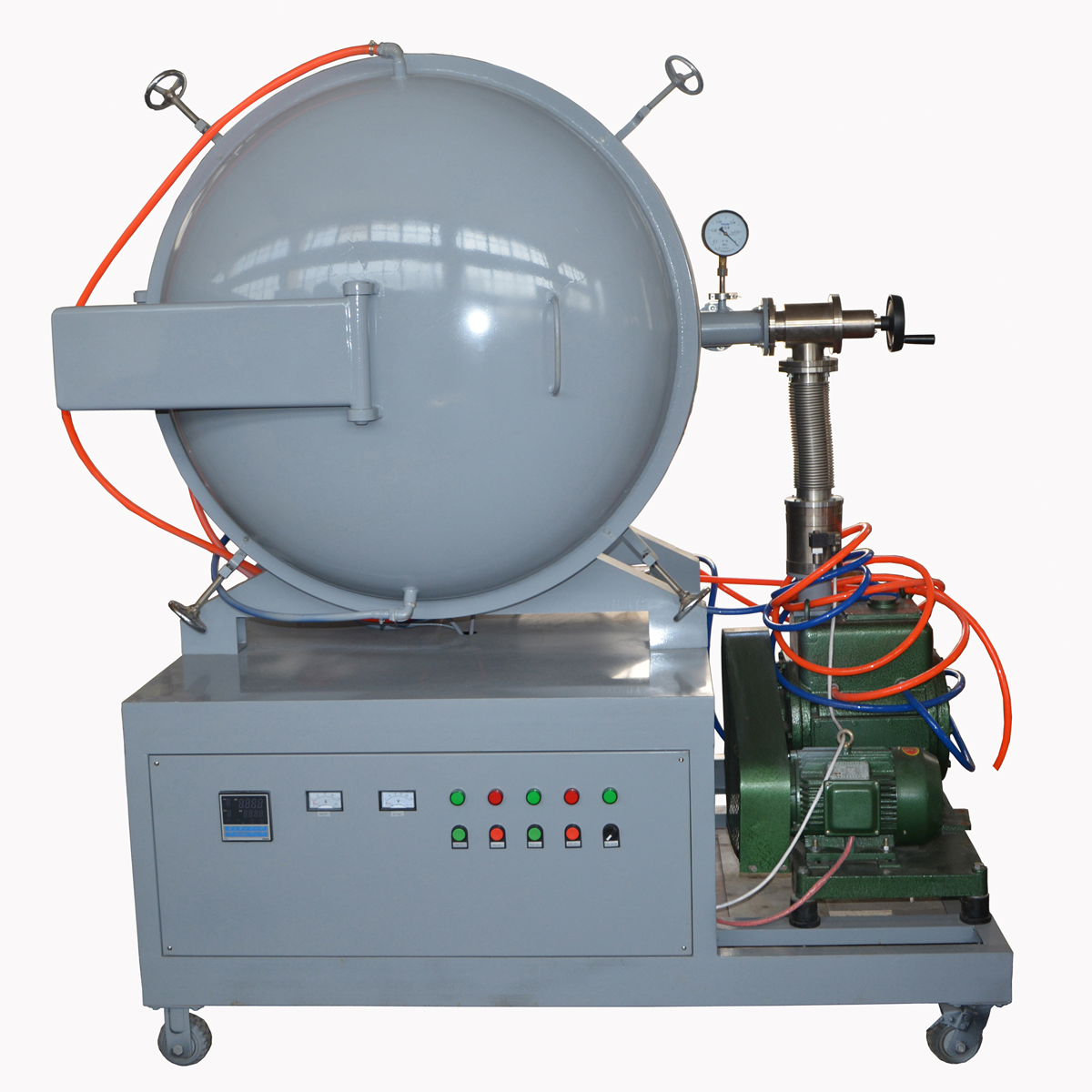

laboratory vacuum heat treatment furnace

laboratory vacuum heat treatment furnace

Model:PT-1400V

Description:laboratory vacuum heat treatment furnace is used for(steels, super-alloys, titanium, aluminum

Inquire Now

Introduction:

Vacuum furnace mainly find application in the following industries:

(1)aero-engine manufacturing
(2)industrial gas turbine manufacturing
(3)heat exchanger manufacturing
(4)commercial heat treatment
(5)manufacturing of sintered components
(6)research centers

Features of vacuum heat treatment furnace :

1.Double layer steel casting to keep case temperature lower;
2.High purity fiber alumina board chamber for the best energy saving;
3.The temperature is controlled by precision SCR(Silicon Controlled Rectifier) with accuracy +/-1 C and 30 segments programmable control;
4.The fast rate of temperature increasing and decreasing.
5.The furnace chamber is ceramic fiber brick with excellent thermal insulation,vacuum  reservoir with water cooling system;
6.The furnace is equipped with the function of power off automatically when door furnace opening,function of over temperature alarm,etc.


laboratory Vacuum heat treatment furnace mainly find application in the following industries:

(1)aero-engine manufacturing
(2)industrial gas turbine manufacturing
(3)heat exchanger manufacturing
(4)commercial heat treatment
(5)manufacturing of sintered components
(6)research centers

laboratory heat treatment furnace manufacture laboratory heat treatment furnace manufacture

Technical parameters of vacuum heat treatment furnace :

Model PT-V1200 PT-V1400 PT-V1700
Max. temp. 1200℃ 1400℃ 1700℃
Work temp. 1100℃ 1300℃ 1600℃
Heating rate 0-20℃ 0-20℃ 0-15℃
Heating element Resistance wire with mo alloy SiC MoSi2
Thermal couple K type S type B type
Chamber material 1430 Ceramic fiber 1600 Ceramic fiber 1800 Ceramic fiber
Temperature  accuracy ±1℃
Temperature uniformity ±5℃
Power supply 110-415V,50/60Hz
Max. Vacuum 10/7x10-3Pa
Furnace cooling Nature air cooling/water cooling
Standard stocks
Chamber size
(mm)
Effective volume
(L)
Chamber size
(mm)
Effective volume
(L)
150x150x150 3.4 300x300x400 36
150x150x200 4.5 400x400x400 64
200x200x200 8 500x500x500 125
200x200x300 12 600x600x600 216
300x300x300 27 800x800x800 512
Customer design sizes and volume is accepted

We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!Vacuum heat treatment furnace can be customized according to customers’requirements.

Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
