high pressure reactor

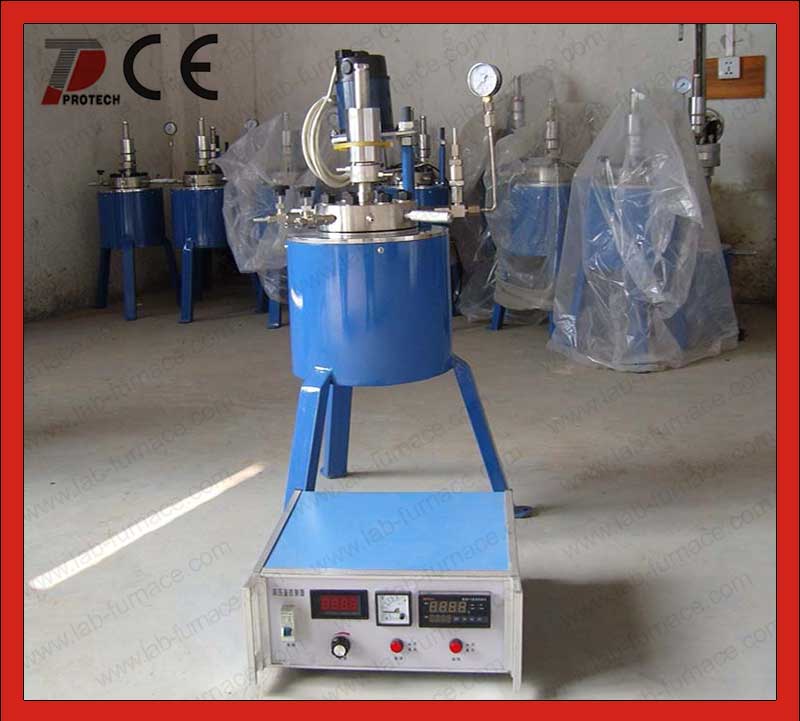

high pressure reactor

Model:CJF-2

Description:This product suitable for all kinds of inflammable, explosive, precious liquids and other chemical medium mixing reaction, strong penetration is oil. Chemical. Organic synthesis, polymer polymerization. Food technology in vulcanization. Fluoride. Oxidation until the ideal reaction equipment without leakage.

Inquire Now

Introduction:
Features of high pressure reactor
1, Static sealing structure
2, The mixer bath electrical machinery transmission uses the magnetic force couple connection.
3, No-touch passing moment, solving the stirred leak problem
4, Medium and the stirring member is in sealing state to work.



Mainly structure of high pressure reactor
High pressure reactor mainly composed of the reactor body,kettle cover,magnetic stirrer,heaters,valves,feeding month,internal cooling coil,the safe explosion device,pressure gauge,control instrument and lifting device.
1.reactor body,reactor cover made of stainless steel,reactor body and flange connected by liners or directly welded together.
2.Magnetic stirrer is the outer magnetic steel body rotation driven by motor,the outer magnetic steel body through the lines of magnetic force to drive the magnetic,in order to reach mixing purpose.
3.Heater:reactor body with the drum core of silicon furnace,heating resistance wire series,with uniform heat conduction effect,high heating speed.
4.At the upside,bottom,lateral of reactor cover is equipped with inlet valve,sampling valve,temperature measure and control device,safe blasting device,cooling coil,etc.
5.Safe blasting device is composed of blasting holder or the relief valve assembly pressure relief safety device.
6.solid loading port through threaded or directly welded on the reactor cover,using a wrench unscrew into charging after turning the screw plug.


Technical parameters of high pressure reactor
Model Volume Pressure Temperature Accuracy Stirring moment Power Material
CJF-0.05 0.05L 22Mpa 350℃ +-1℃ 120N.cm 0.6KW 1Gr18Ni9Ti
CJF-0.1 0.1L 22Mpa 350℃ +-1℃ 120N.cm 0.6KW 1Gr18Ni9Ti
CJF-0.25 0.25L 22Mpa 350℃ +-1℃ 120N.cm 0.8KW 1Gr18Ni9Ti
CJF-0.5 0.5L 22Mpa 350℃ +-1℃ 120N.cm 1.5KW 1Gr18Ni9Ti
CJF-1 1L 22Mpa 350℃ +-1℃ 120N.cm 1.5KW 1Gr18Ni9Ti
CJF-2 2L 22Mpa 350℃ +-1℃ 120N.cm 2KW 1Gr18Ni9Ti
CJF-3 3L 22Mpa 350℃ +-1℃ 120N.cm 1.5KW 1Gr18Ni9Ti
CJF-5 5L 22Mpa 350℃ +-1℃ 120N.cm 4KW 1Gr18Ni9Ti
CJF-10 10L 22Mpa 350℃ +-1℃ 120N.cm 7KW 1Gr18Ni9Ti

FCF series high pressure reactor :
Model Volume(L) Pressure(Mpa) Temperature(℃) Mixing speed(r/min) Power(kw)
FCF-0.05 0.05 22 350 50-1000 0.6
FCF-0.1 0.1 22 350 50-1000 0.6
FCF-0.25 0.25 22 350 50-1000 0.8
FCF-0.5 0.5 22 350 50-1000 1.5
FCF-1 1 22 350 50-1000 1.5
FCF-2 2 22 350 50-1000 2
FCF-3 3 22 350 50-1000 2.5
FCF-5 5 22 350 50-600 4
FCF-10 10 22 350 50-1000 7
FCF-20 20 22 350 50-1000 10




Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
