1200¡æ Tube furnace

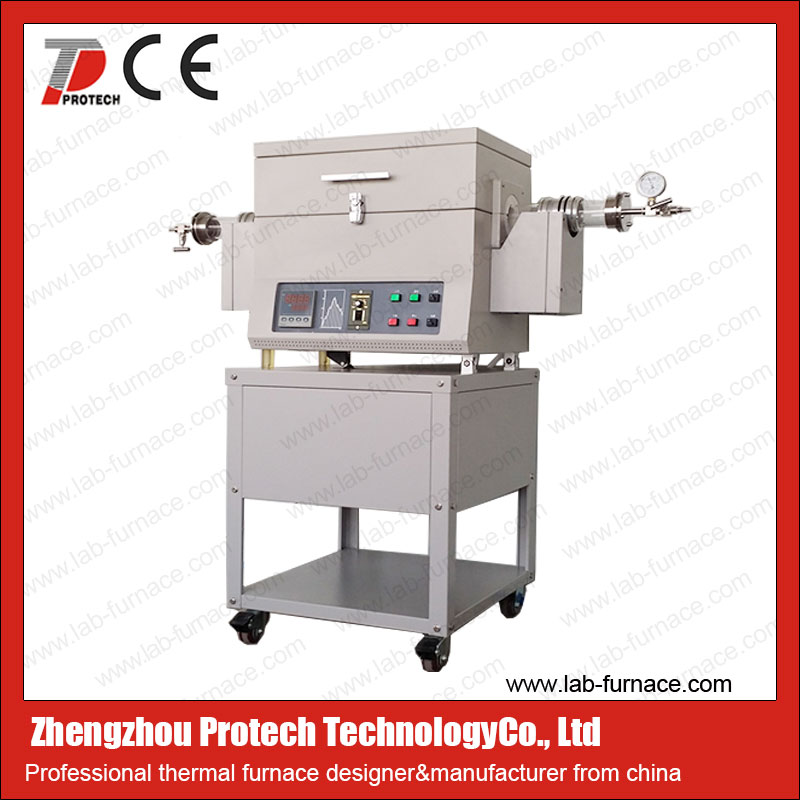

Rotary tube furnace
Model£ºPT-1200R
Description£ºThe rotary tube furnace is designed for experiment processing of advanced materials such as granular, powder, or particulate aggregates in high purity and specialty atmosphere environments at temperatures up to 1200 ¡ãC , 1500 ¡ãC , 1700¡ãC, etc.
Outstanding features
1. Rotary tube to keep uniform heating
2. Variable diameter tube to keep uniform heating
3. Programmable and PID automatic control
4. Dual zone or multra zone temperature control is possible
5. Metal key or touch panel operating interface for your option
6. Inputting protective gas or atmosphere is also possible
Technical parameters
| Model | PT-1200R |
| Limiting temperature | 1200¡æ |
| Working temperature | ≤1150¡æ |
| Heating rate | Suggestion 0~20¡æ/min |
| Temperature zone | Single |
| Temperature accuracy | ±1¡æ |
| Chamber size | Φ60×1200£¨mm£© |
| Heating element | Aludirome |
| Thermal couple | K Type |
| Temperature control | PID automatic control via SCR power control |
| Heating curves | 30 steps programmable |
| Angle of inclination | 0-15 degrees £¨Can be arbitrary adjustable£© |
| Furnace tube rotation speed | 0-20 r/min |
| Rated power | 3KW |
| Working voltage | 110-480V 50-60Hz |
| Warranty | 12 month (exclusive wearing part) |
