High temperature atmosphere vacuum annealing furnace: technical analysis and application overview
1. Equipment definition and core principles
High temperature atmosphere vacuum annealing furnace is a heat treatment equipment that combines vacuum technology and atmosphere control. It reduces gas convection and thermal conduction interference by lowering the pressure inside the furnace, and heats and cools materials such as metals, alloys, ceramics, etc. under anaerobic or specific atmospheres (such as nitrogen, argon, hydrogen). Let's take a detailed look at the content of high-temperature atmosphere vacuum annealing furnace below!
Vacuum environment: By combining mechanical pumps and molecular pumps to evacuate, impurities such as oxygen and water vapor are removed to prevent high-temperature oxidation of materials.
Atmosphere control: Inert gases (such as nitrogen and argon) or reducing gases (such as hydrogen) can be introduced to provide an oxygen free or reducing annealing environment.
Resistance heating: Heating elements such as silicon molybdenum rods and silicon carbon rods are used to generate heat through Joule effect, which is mainly transmitted to the material through radiation.
Temperature closed-loop control: Thermocouples monitor temperature in real-time, PID algorithm adjusts heating power, temperature control accuracy can reach ± 1 ℃, and temperature uniformity is ≤± 5 ℃.

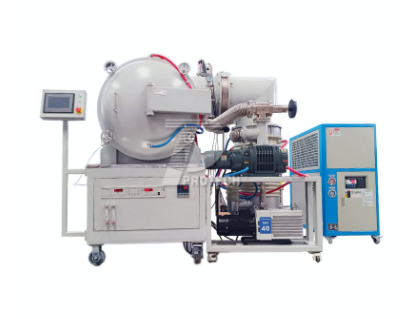

A commonly used atmosphere vacuum annealing furnace (click on the image to view product details)

2. Equipment type and structural characteristics
According to application scenarios and structural differences, high-temperature atmosphere vacuum annealing furnaces can be divided into the following types:
Horizontal vacuum annealing furnace: furnace tank sealing design, equipped with a mobile insulation furnace body, accelerated cooling; Full fiber refractory lining, high-temperature electric heating element. Vacuum annealing of small parts, bright annealing of stainless steel products, and solid solution treatment.
Well type vacuum annealing furnace: pre vacuum gas protection process, built-in stirring fan to improve furnace temperature uniformity; PID intelligent program temperature control, rated temperature 950 ℃. Non oxidation bright annealing of mechanical parts, silicon steel sheets, and copper materials; Annealing of titanium pipes.
Tube type vacuum annealing furnace: corundum tube structure, high temperature capability at 1600 ℃; The gas supply system supports atmosphere replacement. Powder metallurgy, ceramic material sintering; Annealing of high-temperature alloy magnetic materials.
Box type vacuum annealing furnace: double furnace platform hood design, full fiber energy-saving lining; Seal and splice the mobile furnace cover with the fixed furnace body. Vacuum protection atmosphere annealing of titanium tubes and titanium alloy tubes; Large scale industrial heat treatment.

3. Key technical parameters and performance indicators
Working temperature range: Room temperature to 1600 ℃ (some models can reach up to 2000 ℃)
Temperature control accuracy: ± 1 ℃
Uniformity of furnace temperature: ≤± 5 ℃
Vacuum degree: high vacuum (below 10 ⁻ ³ Pa) or low vacuum (according to process requirements)
Heating element: silicon molybdenum rod, silicon carbon rod, resistance wire
Furnace size: 7000 × 900 × 830mm (horizontal) to 14000 × 900 × 830mm (double furnace platform)
Number of temperature control zones 3 to 6
Empty furnace heating time: ≤ 2.5h

4. Application Fields and Typical Cases
Metal processing:
Stainless steel products: bright annealing for plumbing equipment, medical devices, bearings, and cutting tools to eliminate work hardening and restore plasticity.
Titanium alloy pipes: vacuum annealing treatment to repair lattice defects and improve toughness.
Precious metal parts: silver copper composite rivets, vacuum annealing of sheet parts to prevent oxidation loss.

Semiconductor manufacturing:
Annealing of silicon steel sheets: eliminates internal stress, improves magnetic properties, and reduces iron loss.
Purification of magnetic materials: Annealing in a hydrogen atmosphere to remove impurities and improve purity.

Powder metallurgy:
Hard alloy sintering: sintering under vacuum environment to avoid oxidation and improve density.
Ceramic material sintering: High temperature sintering at 1600 ℃, controlling grain growth and optimizing performance.

Aerospace:
Annealing of high-temperature alloys: Vacuum annealing of nickel based and cobalt based high-temperature alloys to improve high-temperature stability.
Titanium alloy heat treatment: eliminates processing stress and improves fatigue life.

5. Equipment advantages and operating points
Core advantages:
Oxygen free environment: prevents high-temperature oxidation of materials, especially suitable for easily oxidizable metals such as titanium and copper.
Controllable atmosphere: Introduce inert or reducing gases to support processes such as reduction and carburizing.
Temperature uniformity: The mixing fan or radiation heating design ensures temperature balance inside the furnace.
High degree of automation: PID intelligent temperature control, programmed temperature rise, data recording, reducing human error.

Operation points:
Vacuuming and inflation: First evacuate to the set pressure, then introduce protective gas to ensure a pure atmosphere.
Temperature control: Set the heating rate and insulation time according to the material characteristics to avoid overheating or underheating.
Cooling method: forced air cooling or natural cooling, depending on the process requirements.
Safety protection: equipped with over temperature alarm, leakage protection, vacuum interlock and other devices to ensure safe operation.

6. Selection suggestions
Temperature requirements: Select equipment based on the annealing temperature of the material, such as titanium alloy requiring 1000 ℃ or above and ceramics requiring 1600 ℃.
Furnace size: Depending on the size of the workpiece and the batch size, large workpieces require a double hearth or well structure.
Atmosphere requirements: Highly oxidizable materials require high vacuum and inert gas, while carburizing processes require a hydrogen atmosphere.
Budget and brand: For experimental purposes, domestic high cost-effective models can be selected, and for industrial production, it is recommended to choose brands with better reputation.

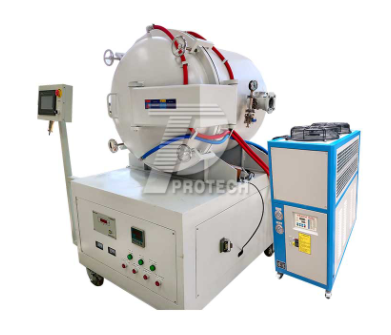

Customized furnace size vacuum atmosphere annealing furnace (click on the picture to view product details)

Overall, high-temperature atmosphere vacuum annealing furnaces have a wide range of application scenarios in the heat treatment industry and are highly recognized by various industries. Before choosing, you can consult relevant technical personnel so that you can customize a high-temperature atmosphere vacuum annealing furnace that is more suitable for your production needs!Click to learn more Vacuum furnaces! Or click on online customer service to learn more about product information!
