There are significant differences between high-temperature atmosphere furnaces and muffle furnaces in terms of structural design, functional characteristics, application areas, operational requirements, and cost maintenance. Let's take a detailed look below!

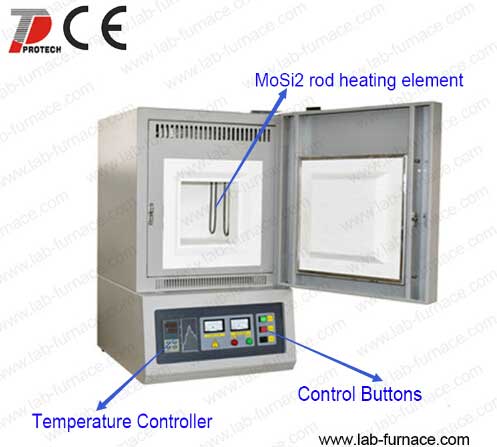

Commonly used muffle furnace (click on the image to view product details)

1. Structural design differences
Muffle furnace
Infrastructure: Composed of furnace, shell, furnace door, and electrical control system. The furnace is used to accommodate materials, while the shell provides protection and support. The furnace door adopts a side opening design for easy access and storage of materials.
Sealing: The requirement for sealing is relatively low, usually only to prevent heat loss, and there is no need to strictly isolate external gases.
Scalability: Some models can add gas protection interfaces, but they are not core designs.

High temperature atmosphere furnace
Complex structure: Gas inlet and outlet, sealing device, gas monitoring system, and vacuum system are added on the basis of the muffle furnace. Some models are equipped with vacuum pumps and atmosphere controllers.
Sealing: Special sealing materials and structural design are used to ensure the stability and purity of the atmosphere inside the furnace, preventing external air from entering.
Gas path system: equipped with gas transmission pipelines, flow controllers, and gas mixing devices, accurately adjusting the type, flow rate, and proportion of incoming gas.

2. Comparison of functional characteristics
Muffle furnace
Core function: Provides a high-temperature environment for general heat treatment processes such as annealing, quenching, tempering, burning, and drying.
Atmosphere control: No atmosphere control function, unable to adjust the composition of the atmosphere inside the furnace, default to working in an air atmosphere.
Temperature control: The temperature control accuracy is high, but the sealing requirements are relatively low.

High temperature atmosphere furnace
Core function: In addition to high-temperature heating, it can accurately control the atmosphere environment inside the furnace, achieve specific chemical reactions or prevent material oxidation by introducing gases such as nitrogen, oxygen, argon, etc.
Atmosphere control: Supports reducing atmosphere, protective atmosphere, or specific reaction atmosphere, suitable for processes such as anaerobic sintering, protective atmosphere annealing, and atmosphere sintering.
Temperature control: The stability and uniformity requirements for temperature control are higher, and it needs to be combined with atmosphere control to ensure process accuracy.

3. Application field differentiation
Muffle furnace
Main scenarios: In the fields of chemical engineering, metallurgy, glass, ceramics, magnetic materials, refractory materials, electronic components, etc., it is used for general heat treatment of box type resistance furnaces and box type high-temperature furnaces.
Typical processes: quenching and tempering of metal parts, sintering of ceramics, sample ashing, determination of ignition loss, etc.

High temperature atmosphere furnace
Main scenarios: aerospace, electronics industry, special materials development and other fields, used for processes that require strict atmospheric conditions.
Typical processes: high-temperature alloy manufacturing, titanium alloy processing, semiconductor device manufacturing, integrated circuit packaging, metal powder metallurgy sintering, etc.

4. Operational requirements and maintenance costs
Muffle furnace
Operation requirements: Regularly check the aging condition of heating elements, the performance of insulation materials, and the accuracy of temperature control systems.
Maintenance cost: The structure is simple and the maintenance cost is low, mainly replacing vulnerable parts such as heating wires.

High temperature atmosphere furnace
Operation requirements:
Regularly inspect the sealing ring, vacuum system, and gas flow control device.
Ensure the effectiveness of the gas purification device and prevent impurity contamination.
Strictly follow the program settings to avoid overloading.
Maintenance cost: Due to the complexity of the atmosphere control system and higher maintenance requirements, the cost is slightly higher than that of the muffle furnace.

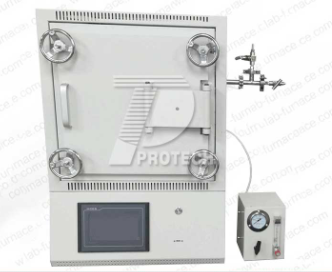

A commonly used small high-temperature atmosphere furnace with a sealing system (click on the picture to view product details)

5. Selection suggestions
Choosing a muffle furnace: If the process does not have strict requirements for the atmosphere and only requires basic high-temperature treatment (such as sample burning, metal annealing), a muffle furnace is a more cost-effective choice.
Choosing a high-temperature atmosphere furnace: If the process requires strict control of the atmosphere (such as preventing oxidation, atmosphere sintering treatment) or involves high-purity material processing (such as semiconductors, aerospace materials), a high-temperature atmosphere furnace is a better choice.Click to learn more Atmosphere Furnaces! Or click on online customer service to learn more about product information!
