Continuous rotary tube furnace is a commonly used continuous heating equipment in industrial heat treatment, powder material sintering, oxidation-reduction and calcination processes, widely used in industries such as new materials, metallurgy, chemical industry, electronic ceramics, catalysts, lithium battery materials, etc. Compared with intermittent muffle furnaces and box furnaces, continuous rotary tube furnaces have significant advantages in structural design, production efficiency, temperature control accuracy, and product consistency. This article provides a detailed introduction to the core characteristics of continuous rotary tube furnaces, helping users select and match their processes.

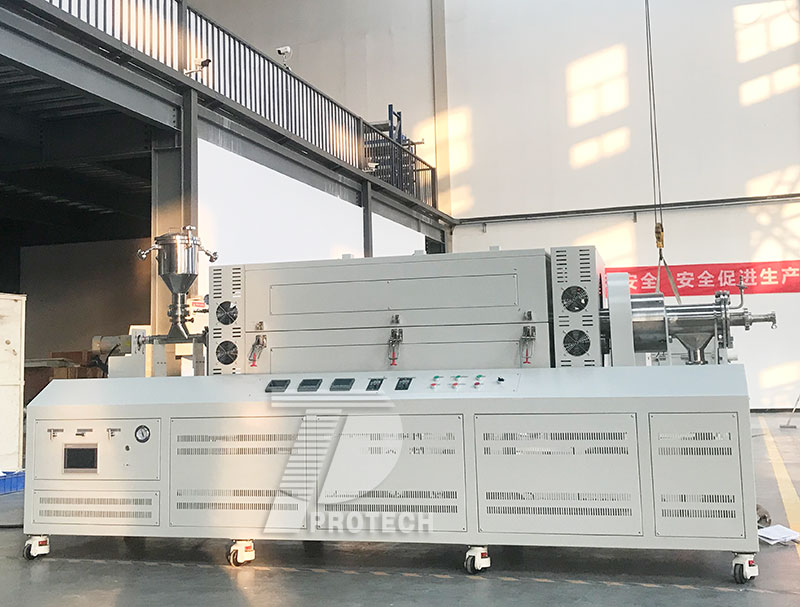

Customized continuous rotary tube furnace (click on the image to view product details)

1. Continuous automated production, stable and efficient production capacity
The continuous rotary tube furnace adopts a working mode of continuous feeding and continuous discharging. The materials are uniformly transported through the furnace by spiral propulsion or self weight conveying, and can achieve 24-hour uninterrupted operation. Compared to intermittent furnaces that require repeated heating, cooling, loading, and unloading, it significantly shortens the production cycle, increases unit time output, and is particularly suitable for large-scale powder and granular material heat treatment, reducing labor costs and improving production stability.

2. 360 ° rotating heating ensures even heating of materials without any dead corners
The furnace tube continues to rotate at low speed during operation, causing the material to continuously roll and scatter inside the tube, avoiding accumulation, agglomeration, local overheating, or uneven heating. This dynamic heating method allows each material to uniformly contact the temperature field, ensuring sufficient sintering, calcination, and reduction of the product, greatly improving product consistency and qualification rate, reducing defect rate, and especially having a greater effect on improving the quality of fine powder materials.

3. High temperature control accuracy, stable and adjustable temperature range
Continuous rotary tube furnaces usually adopt a multi zone independent temperature control design, which can set preheating zone, high temperature zone, and cooling zone according to process requirements. The temperature of each temperature zone can be independently adjusted, and the temperature control accuracy can reach ± 1 ℃. The equipment is equipped with an intelligent PID temperature control system and a programmed heating curve, supporting automated control of the entire process of heating, insulation, and cooling, meeting the complex heat treatment process requirements of different materials, and with strong process repeatability.

4. Capable of atmosphere protection and suitable for various process environments
The equipment has good sealing performance and can be filled with inert or reducing atmospheres such as nitrogen, argon, hydrogen, ammonia decomposition gas, etc., to achieve processes such as atmosphere protected sintering, reduction annealing, and inert calcination. Some models can be equipped with vacuum systems to achieve low vacuum or micro positive pressure operation, preventing material oxidation, and are suitable for the production of new materials and new energy materials with strict requirements for atmospheric environment.

5. Strong material adaptability and wide applicability
The continuous rotary tube furnace can handle various forms of materials such as powder, particles, strips, and small pieces, and has good applicability to ceramic powder, metal powder, catalysts, oxides, positive electrode materials, negative electrode materials, etc. The diameter, speed, feed rate, and temperature zone length can all be customized according to production and process requirements, meeting the full process needs from small-scale and pilot scale to industrial mass production.

6. Durable structure, energy-saving and consumption reducing
The furnace body adopts a high-quality insulation cotton and refractory fiber multi-layer insulation structure, which has good insulation effect, less heat loss, and lower energy consumption. The rotating sealing part adopts a wear-resistant and high-temperature resistant sealing structure, which ensures stable operation, low failure rate, and long service life of the equipment. Meanwhile, the continuous working mode avoids energy waste caused by frequent temperature fluctuations, making long-term use more economical.

7. High degree of automation, safe and easy operation
The equipment is equipped with automatic feeding machine, discharging device, temperature control system, fault alarm, emergency stop protection and other functions. It is easy to operate and can achieve one click start operation. At the same time, it has safety designs such as over temperature alarm, disconnection protection, and atmosphere interlock protection, reducing manual operation risks and improving workshop production safety.

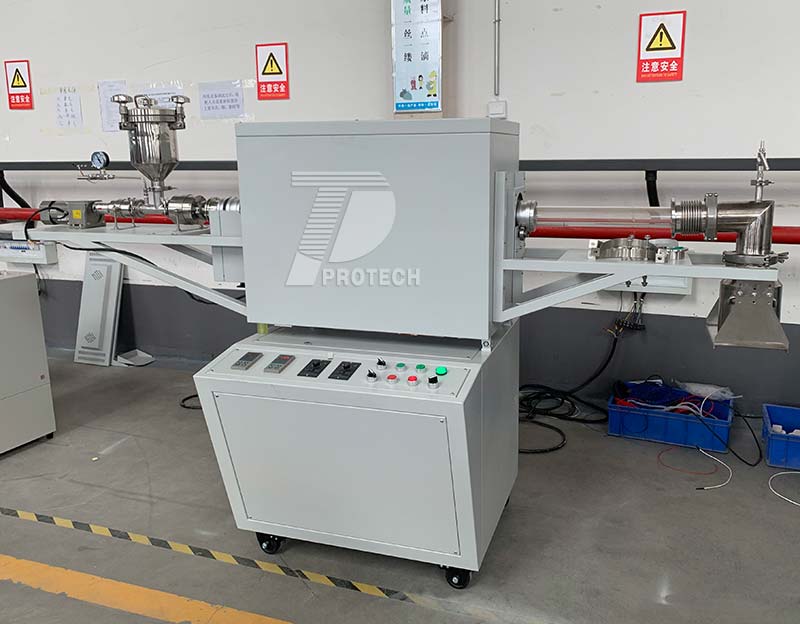

Experimental continuous feeding and discharging rotary tube furnace (click on the picture to view product details)

Summary
The core characteristics of a continuous rotary tube furnace can be summarized as: high continuous production efficiency, uniform heating of materials, convenient temperature control, controllable atmosphere, wide applicability, energy-saving stability, and high degree of automation. It can not only improve product quality and consistency, but also help enterprises achieve large-scale and standardized heat treatment production. It is an ideal equipment for modern industrial material sintering, calcination, and reduction processes. If customized solutions are needed, non-standard design can be carried out based on material characteristics, production requirements, temperature range, atmosphere requirements, etc., to achieve heat treatment solutions that are more in line with the process.Click to learn more rotary tube furnaces! Or click on online customer service to learn more about product information!
