In scenarios such as university research, new material development, and small-scale laboratory production, experimental tube furnaces are commonly used as core heating equipment. With the advantages of convenient temperature control, easy operation, and adaptability to various experimental processes, they are widely used in material sintering, annealing, CVD deposition, oxidation-reduction and other experiments. Below, we will provide a detailed analysis of the working principle and core technical parameters of the experimental tube furnace!

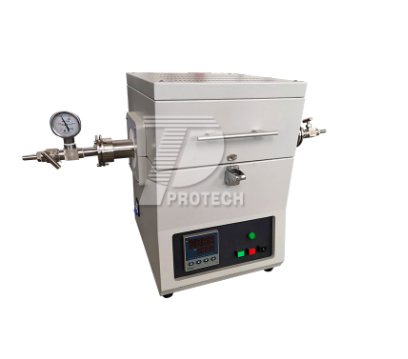

Customized experimental tube furnace (click on the image to view product details)

1. Working principle of experimental tube furnace
The core working principle of an experimental tube furnace is to convert electrical energy into thermal energy through electric heating elements, forming a stable and uniform temperature field in a closed tube furnace. Combined with atmosphere control or vacuum environment, it meets the specific requirements of different experiments for temperature and atmosphere, and achieves thermal processing of materials.

a. Thermal energy generation and transfer
The interior of the experimental tube furnace is embedded with high-performance electric heating elements (commonly resistance wires, silicon molybdenum rods, silicon molybdenum rods, etc.). After the power is turned on, the electric heating elements generate heat, which is evenly transferred to the interior of the furnace through thermal radiation and conduction, causing the overall temperature of the furnace to quickly rise to the set value. Different electric heating elements are adapted to meet different temperature requirements, ensuring that the experimental tube furnace can meet various experimental scenarios from low temperature to high temperature.

b. Convenient temperature control
The experimental tube furnace is equipped with a high-precision temperature control system, consisting of temperature sensors (thermocouples) and temperature control instruments. The temperature sensor collects real-time temperature data inside the furnace and feeds it back to the temperature control instrument. The instrument automatically adjusts the power supply of the electric heating element according to the preset temperature program (heating, insulation, cooling), achieving more accurate temperature control. The temperature control accuracy can reach ± 1 ℃, effectively avoiding the influence of temperature fluctuations on experimental results. This is also one of the core advantages of experimental tube furnaces compared to ordinary heating equipment.

c. Atmosphere/vacuum environment regulation (optional)
For experiments that require specific atmospheres or vacuum environments (such as inert gas shielded sintering, vacuum annealing), experimental tube furnaces can be equipped with atmosphere control systems or vacuum systems. Introduce inert gases such as nitrogen and argon through the air inlet to exhaust the air inside the furnace and prevent material oxidation; Or by using a vacuum pump to extract gas from the furnace, a high vacuum environment can be formed to meet the process requirements of special experiments and adapt to precision experimental scenarios such as new material research and development and precision component processing.

2. Core technical parameters of experimental tube furnace
Technical parameters are the core basis for selecting experimental tube furnaces, and different experimental requirements correspond to different parameter configurations. The following are the standard technical parameters for mainstream experimental tube furnaces in the market:
a. Temperature parameters (core parameters)
-Maximum operating temperature: 200 ℃ -1800 ℃ (can be customized according to experimental needs, commonly 1200 ℃, 1400 ℃, 1600 ℃);
-Temperature control accuracy: ± 1 ℃;
-Heating rate: 1 ℃/min-20 ℃/min (adjustable freely, supports programmed heating);
-Cooling rate: natural cooling or forced cooling (configured according to furnace material and temperature requirements).
b. Furnace tube parameters
-Furnace tube materials: corundum tube, quartz tube, metal tube (quartz furnace is suitable for low-temperature experiments, and corundum furnace is suitable for high-temperature experiments);
-Furnace size: inner diameter ranging from 20mm to 100mm, length from 300mm to 1000mm (can be customized according to needs, suitable for different sizes of experimental samples);
-Heating methods: single temperature zone, dual temperature zone, triple temperature zone (triple temperature zone can achieve independent temperature control in different areas of the furnace, suitable for complex experiments).
c. Control parameters
-Control mode: intelligent touch screen control, PLC program control (supports preset multiple temperature programs, fully automatic operation, no need for dedicated personnel to be on duty);
-Display mode: High definition LCD screen, real-time display of furnace temperature, heating power, operating time and other parameters;
-Protection functions: Overtemperature alarm, couple break protection, overload protection, leakage protection, ensuring safe operation of equipment, protecting experimental samples and operators.
d. Atmosphere/vacuum parameters (optional configuration)
-Vacuum degree: ≤ 10-3Pa (high vacuum version can reach 10-45Pa);
-Atmosphere type: inert or reducing gases such as nitrogen, argon, hydrogen, etc;
-Gas flow rate: 0-5L/min (adjustable to ensure stable atmosphere concentration).
e. Other parameters
-Dimensions: Customized according to the furnace size, compact in size, suitable for laboratory space.

3. Recommended by experimental tube furnace manufacturers
Choosing a reputable experimental tube furnace manufacturer is the key to ensuring equipment performance, experimental results, and after-sales support. As a professional manufacturer specializing in the research and development, production, and sales of tube furnaces, we focus on customizing and producing experimental tube furnaces, suitable for various scenarios such as universities, research institutes, and enterprise laboratories. Our core advantages are as follows, helping users quickly choose:
a. Strong research and development capabilities
We have a professional R&D team that can customize experimental tube furnaces with different temperatures, sizes, and configurations according to the experimental needs of users, covering single temperature zone, double temperature zone, and triple temperature zone. We support various environmental controls such as vacuum and atmosphere, meeting the precision needs of new material research and development, precision experiments, and more.
b. Strict quality control
The core components of the equipment (electric heating elements, temperature control system, furnace material) are made of high-quality raw materials and undergo strict production testing processes to ensure stable operation, accurate temperature control, and strong durability of the experimental tube furnace, effectively reducing equipment failure rates and ensuring smooth progress of the experiment.
c. Comprehensive after-sales service
We provide free technical consultation, equipment installation and debugging, operation training services, free maintenance and replacement of parts during the warranty period, and lifelong technical support to solve various problems encountered by users during equipment use, so that users have no worries.
d. High cost-effectiveness advantage
Directly supplied by the manufacturer, eliminating intermediate links, providing users with cost-effective experimental tube furnaces. At the same time, the configuration plan can be optimized according to the user's budget, balancing practicality and economy, and adapting to laboratories and enterprises of different scales.

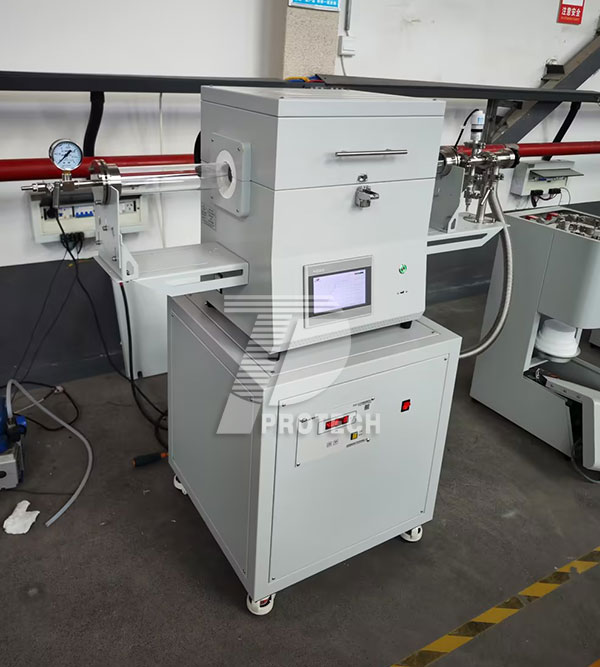

Customized experimental vacuum atmosphere tube furnace (click on the picture to view product details)

4. Conclusion
The working principle of the experimental tube furnace revolves around "more accurate temperature control, efficient heat transfer, and environmental adaptation". The core technical parameters directly determine the equipment's adaptation scenario and experimental effect. Choosing a professional manufacturer can ensure that the equipment performance is highly matched with the experimental requirements.

As a professional manufacturer of tube furnaces, we can provide one-stop customized solutions for experimental tube furnaces, covering the entire process of equipment research and development, production, and after-sales service, to help universities and enterprises efficiently promote research and development. If you have any needs for experimental tube furnaces, please feel free to consult us for exclusive customized solutions and detailed technical parameters.Click to learn more customized tube furnaces! Or click on online customer service to learn more about product information!
