1. What is a small vacuum CVD tube furnace?
The small vacuum CVD tube furnace is a compact vapor deposition heat treatment equipment designed specifically for laboratory research and development, university teaching, and new material testing. The equipment adopts a horizontal tubular structure, combined with a vacuum unit, gas path control system, and intelligent temperature control system, which can complete CVD vapor deposition processes such as thin film deposition, powder modification, material annealing, carbonization, oxidation, etc. under vacuum or inert atmosphere conditions. Due to its small size, simple operation, accurate temperature control, and high experimental repeatability, it has become a commonly used research experimental furnace in material science schools, chemistry schools, and physics laboratories of major universities.
Compared to large industrial CVD equipment, small vacuum CVD tube furnaces have a smaller footprint, lower energy consumption, and lower testing costs. They support the development of small batch samples and are more suitable for pre formulation debugging, experimental data collection, and teaching demonstrations of new materials. They are also the basic equipment for the research and development of nanomaterials, semiconductor materials, and new energy materials.

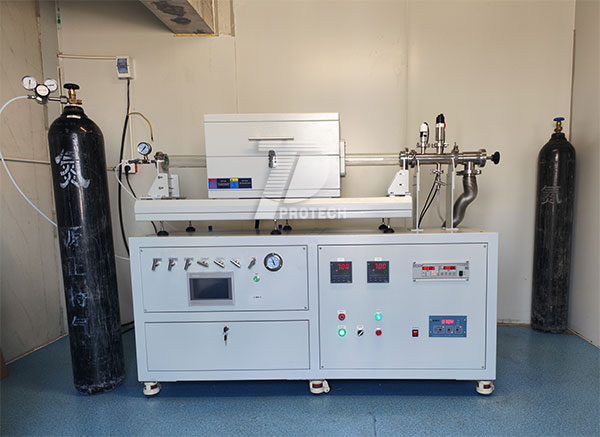

A commonly used 1200 degree small vacuum CVD tube furnace (click on the image to view product details)

2. Working principle of small vacuum CVD tube furnace
The vacuum CVD tube furnace mainly utilizes the principle of chemical vapor deposition. Inside a sealed quartz tube or corundum tube, air is extracted by a vacuum pump to form a vacuum environment, and then process gases such as argon, nitrogen, and hydrogen are introduced. After the furnace body is heated up, the gaseous precursor undergoes a chemical reaction in a high-temperature, vacuum, and atmospheric environment, forming a uniform thin film coating on the material surface, completing processes such as deposition, modification, and sintering.
The entire equipment consists of a heating furnace body, high-temperature resistant furnace tubes, vacuum units, gas flow control system, intelligent temperature control instruments, and closed valves. The entire process is sealed without leakage, effectively isolating oxygen, avoiding high-temperature oxidation and contamination of the sample, and ensuring more stable experimental data.

3. Why do universities prefer to use small vacuum CVD tube furnaces?
1. Compact size, suitable for laboratory space
University laboratories generally have limited space. This small CVD tube furnace has a compact structure, flexible placement, and does not require the construction of a large factory building. It can be placed on a countertop, easy to install, and can be used with electricity and gas connections, making it suitable for routine laboratory environments in universities.
2. High temperature control accuracy and strong experimental repeatability
The device adopts an intelligent PID temperature control system with multiple programmable heating curves, with a temperature control accuracy of ± 1 ℃, adjustable heating rate, and uniform temperature in the constant temperature zone. Researchers can freely set heating, insulation, and cooling programs to better meet the strict temperature requirements of new material experiments. The experimental data is stable and reproducible.
3. Vacuum sealed environment, higher sample purity
A small vacuum CVD tube furnace can achieve a high vacuum environment, effectively eliminate air inside the tube, and prevent problems such as high-temperature oxidation, decarburization, and impurity pollution. Suitable for the research and development of various easily oxidizable materials and thin film materials, with high density, uniform surface, and better appearance of finished products.
4. Controllable gas path and strong process scalability
The equipment is equipped with high-precision and high-quality flow meters, which can more accurately control gas flow rate, support multi-channel gas mixing, and adapt to various experimental processes such as CVD deposition, doping, etching, annealing, and reduction. One device meets multiple scientific research needs.
5. Easy to operate, suitable for teaching and research
The touch screen visual operation interface allows for one click storage and one click calling of programs. Data can be exported and recorded, making it easy for novice students to quickly get started. It is suitable for both graduate material research and development and undergraduate teaching demonstrations, and is a standard equipment in university material laboratories.

4. Common technical parameters (scientific research general standards)
-Rated temperature: 1200 ℃~1600 ℃ optional
-Temperature control accuracy: ± 1 ℃, intelligent PID constant temperature control
-Vacuum range: High vacuum configuration, capable of reaching 10 ⁻ Pa level
-Furnace tube material: high-purity quartz tube, corundum tube optional
-Heating rate: 1~20 ℃/min, freely adjustable
-Atmosphere environment: vacuum, nitrogen, argon, hydrogen, mixed atmosphere
-Control system: touch screen+30 segment programmable temperature control, data storage and export

5. Main application industries and experimental materials
The small vacuum CVD tube furnace has a wide application coverage and is currently one of the tube furnaces with a high utilization rate in scientific research in universities. The suitable materials are as follows:
-Nanomaterials: carbon nanotubes, graphene, nano powder modification;
-Semiconductor materials: thin film deposition, chip substrates, semiconductor doping;
-New energy materials: battery materials, electrode materials, ceramic separators;
-Hard alloy, powder metallurgy: vacuum annealing, degassing, hardening treatment;
-Ceramic materials: functional ceramics, structural ceramics, high-temperature sintering modification.

6. Advantages of Protech's Small Vacuum CVD Tube Furnace Products
As a leading manufacturer of industrial electric furnaces, Protech focuses on researching and producing various types of vacuum tube furnaces, CVD vapor deposition furnaces, and high-temperature experimental furnaces. Optimize equipment structure for scientific research usage scenarios in universities, achieving sealing without air leakage, uniform temperature field, lower energy consumption, and durability.
-Full fiber energy-saving lining, good insulation effect, and the shell is not hot to the touch at low temperatures;
-High quality heating elements with long service life, capable of continuous long-term experiments;
-Multiple safety protections: over temperature alarm, power outage protection, anti leakage interlock;
-Support non-standard customization: pipe diameter, constant temperature zone, temperature, and gas path can all be customized;
-Direct supply from the manufacturer, free technical guidance, and lifelong after-sales maintenance.

7. Summary
Small vacuum CVD tube furnaces have become essential research equipment for materials, chemistry, physics, and new energy majors in universities due to their advantages of small size, high precision, good vacuum effect, flexible process, and high cost-effectiveness. Whether it is thin film deposition, powder modification, annealing, carbonization, or atmosphere experiments, it can be stably completed, making it the preferred vapor deposition furnace for scientific research, material development, and teaching experiments.

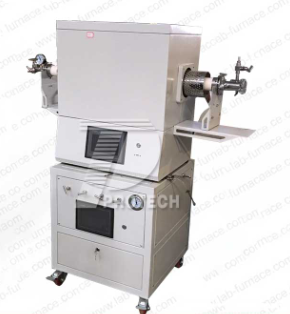

A small vacuum CVD tube furnace with a temperature of up to 1600 degrees (click on the picture to view product details)

If you need to customize experimental, scientific research, or industrial production vacuum CVD tube furnaces, please feel free to consult Protech. The source factory provides one-on-one process solutions, equipment parameters, and customized quotations.Click to learn more CVD devices! Or click on online customer service to learn more about product information!
