In university laboratories, new material research and development, metal heat treatment, and ceramic sintering industries, 1400 degree high-temperature furnaces are commonly purchased equipment. Many customers cannot distinguish the core differences between 1400 degree atmosphere furnaces and ordinary 1400 degree muffle furnaces, and selection errors can easily lead to problems such as workpiece oxidation, substandard processes, and equipment scrapping. Below, we will comprehensively compare the two types of equipment from five dimensions: structural sealing, atmospheric environment, temperature control performance, applicable processes, and cost maintenance. Based on actual working conditions, we will provide a more accurate selection plan and attach a Protech furnace non-standard customization service explanation to help procurement and R&D personnel quickly select the right high-temperature heat treatment furnace.

1. Basic definition: Core positioning of two 1400 degree high-temperature furnaces
(1). 1400 degree ordinary muffle furnace (box type resistance furnace)
The ordinary muffle furnace is a basic open type high-temperature heating equipment. The furnace has no airtight structure and relies solely on insulation to isolate the heat source. The furnace is always in an air environment and is mainly used for high-temperature burning, roasting, and ashing under air. It has a simple structure and low operating threshold, and is a standard basic furnace type in the laboratory. The rated maximum temperature can reach 1400 ℃.

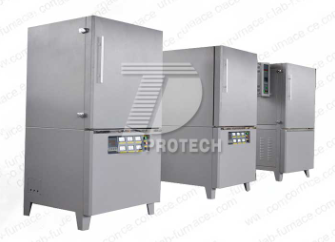

A commonly used 1400 degree muffle furnace (click on the image to view product details)

(2). 1400 degree atmosphere furnace (box type vacuum atmosphere furnace)
The atmosphere furnace is an upgraded airtight version of the muffle furnace, which adds a vacuum unit, precision gas path, and multiple sealed water-cooled furnace body on the basis of the original heating structure. It can pre evacuate and replace air, introduce inert/reducing gases such as nitrogen, argon, and ammonia decomposition gas, and isolate oxygen throughout the process. It is specially designed for anaerobic sintering and reduction heat treatment of easily oxidizable materials, with a maximum operating temperature coverage of 1400 ℃.

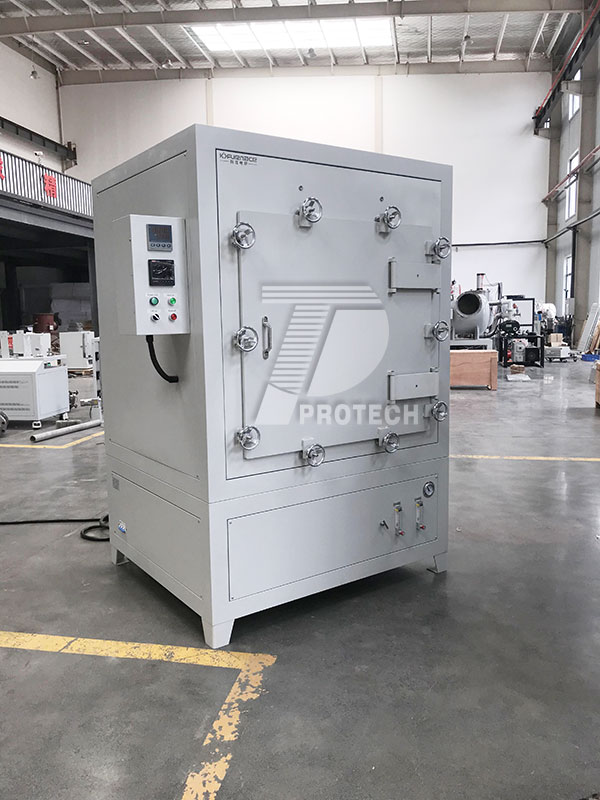

A commonly used 1400 degree atmosphere furnace (click on the image to view product details)

2. The five core differences between 1400 degree atmosphere furnace and muffle furnace
（1） Sealing structure and furnace body design (essential differences)
1400 degree muffle furnace
Single layer/simple double-layer air-cooled furnace shell, without water cooling system;
The furnace door is sealed with ordinary asbestos strips, which have large gaps and cannot withstand pressure or vacuum;
No intake, exhaust, or vacuum interfaces, allowing the furnace to freely circulate with the outside air;
The furnace is made of alumina fiber integrated molding, only used for insulation and heating, and does not have airtight capability.
1400 degree atmosphere furnace
Double layer water-cooled stainless steel furnace body, high-temperature operation shell, low-temperature, safe and explosion-proof;
The furnace door is equipped with composite sealing gaskets and multiple sets of locking handwheels, and the entire furnace is welded with airtight welding;
Standard configuration includes vacuum pump, stainless steel air circuit, flow meter, pressure relief valve, and pressure monitoring gauge;
The inner wall of the furnace is densified to prevent gas leakage and maintain a negative/slightly positive pressure atmosphere.

（2） The atmosphere and environment inside the furnace directly determine the applicable materials
1400 degree muffle furnace: pure air oxidation environment
Oxygen and water vapor continue to exist in the furnace, and metals, magnetic materials, and powders are prone to oxidation, discoloration, and the formation of oxide scales at high temperatures of 1400 ℃. It can only handle workpieces that are not afraid of oxidation and require oxidation reactions in the process, and cannot isolate air throughout the entire process.
1400 degree atmosphere furnace: controllable anaerobic/reducing atmosphere
First, evacuate the furnace air completely and then fill it with high-purity nitrogen and argon to isolate oxygen; Optional explosion-proof structure can be used to introduce hydrogen and ammonia decomposition gas for reduction process. The oxygen content in the furnace can be controlled at a very low level, avoiding high-temperature oxidation of the workpiece from the source and adapting to precision processing of sensitive materials.

（3） Comparison of Temperature Control and Temperature Field Uniformity Performance
Both devices have a rated temperature of up to 1400 ℃, but there is a significant difference in temperature field accuracy:
1400 degree muffle furnace
Temperature control accuracy ± 1 ℃, furnace temperature field uniformity ± 5-20 ℃; The heating rate can be adjusted, but there is no atmosphere protection speed limit mechanism. The temperature difference in the high temperature section is relatively large, which is suitable for basic experiments with low requirements for sintering consistency.
1400 degree atmosphere furnace
Adopting S-type platinum rhodium thermocouple+multi-stage program PID temperature control, with temperature control accuracy of ± 1 ℃ and no-load temperature field uniformity within ± 5 ℃; The system comes with an atmosphere mode heating speed limit to prevent furnace thermal shock cracking. The temperature fluctuation during long-term constant temperature sintering is minimal, meeting the production needs of new materials and precision ceramics.

（4） Distinguishing applicable processes and industry scenarios
a. 1400 degree muffle furnace applicable scenarios
University laboratory: determination of ash content in coal ash, calcination of ores, air roasting of inorganic powders;
Ceramic industry: ordinary alumina ceramics, refractory material oxidation sintering;
Testing agency: High temperature oxidation test of metal samples, heat treatment annealing (not afraid of oxidized workpieces);
General operating conditions: No need to isolate air, low-cost batch based high-temperature heating.
b. Applicable scenarios for 1400 degree atmosphere furnace
Powder metallurgy: oxygen free sintering of iron-based, copper based, and hard alloys to prevent oxidation and peeling;
Research and development of new materials: inert sintering of nano powder, graphite, carbon materials and magnetic materials;
Metal heat treatment: vacuum annealing, brazing, decarburization reduction of stainless steel and titanium alloys;
High temperature oxygen free preparation of electronic ceramics, target materials, lithium battery materials, and rare earth materials;
Special process: Atmospheric pyrolysis, pre firing and rubber removal (oxygen free environment).

（5） Procurement costs and differences in later maintenance
1400 degree muffle furnace
The equipment structure is simple and the procurement price is low; No vacuum or gas path accessories, daily maintenance only requires cleaning the furnace and regular temperature calibration, with few accessories and low maintenance costs. Novices can quickly get started with the operation.
1400 degree atmosphere furnace
Multiple vacuum units, sealing components, explosion-proof gas circuits, with higher procurement costs than ordinary muffle furnaces; Regularly replace sealing gaskets, maintain vacuum pumps, and calibrate gas flow meters in daily life; The operation requires training on the vacuum ventilation process, strict adherence to gas explosion prevention regulations, and a more complex operation and maintenance process.

3. Selection guide: How to choose between 1400 degree atmosphere furnace and muffle furnace?
（1） Choose a 1400 degree ordinary muffle furnace that meets any of the following requirements
The entire process is heated in the air, and the workpiece is not afraid of high-temperature oxidation;
Only conduct basic experiments such as ashing, burning, oxidation roasting, and refractory material calcination;
Due to limited budget, there are no high-precision requirements for temperature field uniformity and surface smoothness;
No nitrogen, vacuum, or reducing gas process requirements, no processing of metals, carbon based, magnetic sensitive materials;
Small laboratory routine teaching, quality inspection and testing, pursuing simple operation and low maintenance.

（2） A 1400 degree atmosphere furnace must be selected, meeting any of the following requirements
Workpieces are prone to oxidation at high temperatures and require bright, non oxidizing surfaces (metals, alloys, magnetic materials);
Process requirements include inert gas protection (nitrogen/argon) or reducing atmosphere (hydrogen, ammonia decomposition);
Powder, carbon materials, lithium batteries, rare earths, and hard alloy oxygen free sintering;
High requirements for product consistency and microstructure accuracy in production/research and development;
Pre vacuum degassing and adhesive removal are required to avoid impurity contamination of the sample;
Long term batch precision heat treatment requires strict requirements for the qualification rate of finished products.

（3） Special working conditions: Customizable dual-purpose atmosphere muffle furnace
If there are both air oxidation process and anaerobic atmosphere process, you can contact the electric furnace manufacturer to customize a dual-purpose 1400 degree atmosphere muffle furnace. One set of equipment can switch between two working conditions, balancing universality and process requirements. Protech furnace supports full-size, full temperature non-standard customization.

4. Procurement precautions (pit avoidance guide)
Temperature distinction: 1400 ℃ is the rated maximum temperature, and it is recommended to use ≤ 1300 ℃ for long-term stable operation to extend the life of the furnace and heating elements;
Furnace material: The atmosphere furnace must use high-purity alumina polycrystalline fiber furnace. Ordinary aluminum silicate fiber is prone to powdering and contaminating samples in an inert atmosphere;
Explosion proof requirement: When using hydrogen and ammonia decomposition and reduction atmospheres, explosion-proof atmosphere furnaces must be selected to eliminate safety hazards;
Non standard customization: Special furnace sizes, multi-stage atmosphere curves, and automatic ventilation systems can be customized according to the needs of professional heat treatment equipment manufacturers;
Supporting services: Priority is given to selecting source manufacturers that integrate research and development, production, and after-sales services, providing installation, debugging, and process technical guidance.

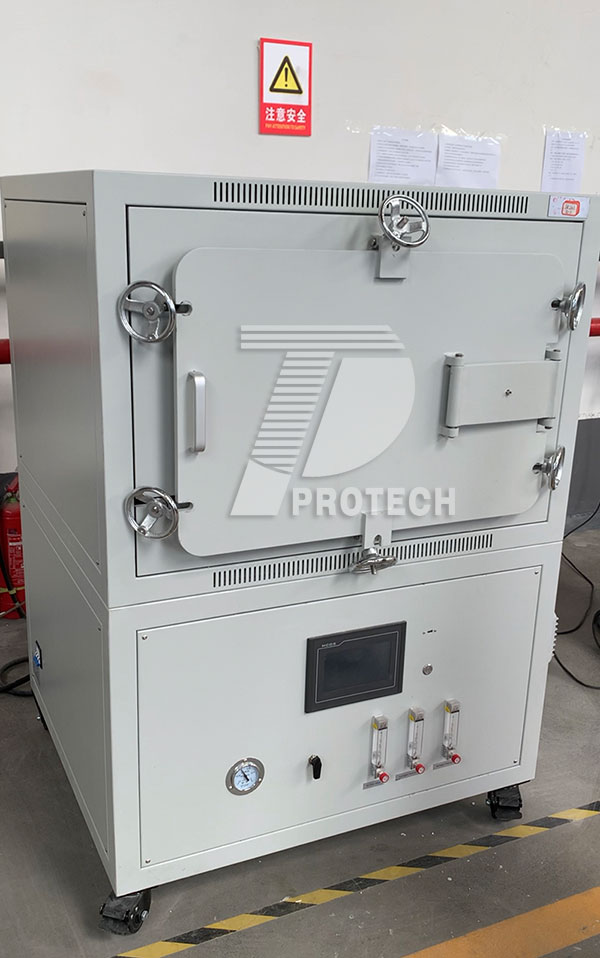

Customized 1400 C atmosphere furnace (click on the image to view product details)

5. Protech Customized Services
Protech furnace is a professional manufacturer of heat treatment equipment. We independently develop and produce a full range of muffle furnaces, box atmosphere furnaces, vacuum tube furnaces, and trolley furnaces from 1000-1700 degrees Celsius. We can also customize 1400 degree standard/non-standard atmosphere furnaces and high-temperature muffle furnaces
One on one on-demand design of furnace volume, heating rate, vacuum degree, and gas path system;
The furnace adopts high-purity alumina fiber, and the dual heating scheme of resistance wire/silicon carbon rod/silicon molybdenum rod is optional;
Multi segment program temperature control on the touch screen, capable of storing over 30 sets of sintering process curves and supporting data export;
Complete factory quality inspection, on-site installation and debugging nationwide, lifelong equipment maintenance;
Adapt to the heat treatment needs of various industries including university laboratories, new material enterprises, powder metallurgy, ceramic processing, and electronic components.
Quality is the key. For selection and customization needs of 1400 degree atmosphere furnaces and muffle furnaces, you can call the displayed phone number or scan the QR code on the page to send the process and workpiece size, and provide free equipment solutions and quotations.Click to learn more Customized atmosphere furnaces! Or click on online customer service to learn more about product information!
