In the fields of powder metallurgy, hard alloys, special ceramics, and new material research and development, vacuum sintering furnaces are the core equipment that determines product quality and production efficiency. In 2026, with the increasing demand for precision manufacturing in terms of product accuracy, consistency, and energy efficiency, the vacuum sintering furnace brands in the market are complex and the parameters are chaotic. Many users only consider the price when purchasing, ignoring the core parameters, resulting in problems such as workpiece oxidation, uneven sintering, high energy consumption, and frequent failures. Below, we will summarize 5 core parameters based on the industry's new technology standards and market demand in 2026, to help you make more accurate selections and avoid 90% of procurement traps.

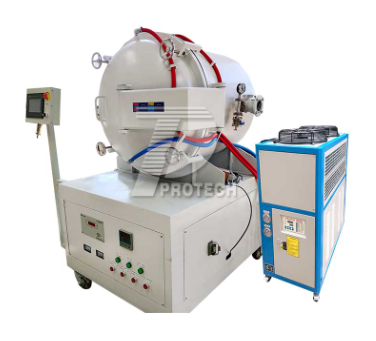

A commonly used small-scale experimental vacuum sintering furnace (click on the image to view product details)

1. Maximum working temperature: matching material requirements, reserving safety margin
The maximum working temperature is the basic parameter of the vacuum sintering furnace, which directly determines the range of materials that can be processed. By 2026, the temperature range of mainstream equipment in the industry will be concentrated between 1000 ℃ and 2200 ℃. The sintering temperature of different materials varies greatly, and the core selection is "sufficient temperature, not blindly chasing high":
Ordinary powder metallurgy and copper/iron-based materials: 1000 ℃ -1200 ℃ can meet the requirements;
Hard alloy and metal ceramic: require 1300 ℃ -1600 ℃;
Special ceramics (silicon carbide, aluminum nitride), refractory metals (tungsten, molybdenum): must be above 1800 ℃ -2200 ℃.
Key points for avoiding pitfalls
When selecting, a temperature margin of 10% -20% should be reserved to avoid long-term full load operation leading to furnace aging and accelerated loss of heating elements;
Be wary of false temperature parameters: Some low-priced equipment is labeled as 1600 ℃, but the actual long-term stable operation is only 1500 ℃. When purchasing, the manufacturer can be requested to provide a temperature detection report, specifying the "long-term stable working temperature" instead of the "instantaneous maximum temperature".

2. Extreme vacuum degree+leakage rate: eliminate oxidation and ensure product purity
Vacuum degree is the core performance of vacuum sintering furnace, which directly affects whether the workpiece is oxidized and the level of impurities. In 2026, precision equipment will have more stringent requirements for vacuum degree. The core focus is on two indicators: vacuum degree and leakage rate, both of which are indispensable:
Ultimate vacuum degree: refers to the minimum pressure that the furnace chamber can reach, measured in Pa. Ordinary sintering requires 10 ⁻¹ -10 ⁻² Pa, while high-purity materials, semiconductors, and precision parts require 10 ⁻² -10 ⁻³ Pa to ensure an oxygen free and low impurity environment;
Leakage rate: measures the sealing performance of the furnace body, measured in Pa/h. In 2026, the leakage rate of high-quality equipment in the industry will be ≤ 6Pa/h. If the leakage rate is too high, it will lead to a rapid decrease in vacuum degree, oxidation and blackening of workpieces, and insufficient density.
Key points for avoiding pitfalls
Dual mechanical pump configuration offers higher cost-effectiveness: compared to a single pump, dual mechanical pumps have faster vacuum pumping speed and more stable vacuum degree, and are suitable for introducing inert gases such as nitrogen and argon to protect the workpiece from oxidation;
Don't just focus on the ultimate vacuum degree: Some equipment can achieve high vacuum, but the leakage rate exceeds the standard, and the vacuum degree continues to decline during operation. When purchasing, it is necessary to test the pressure holding test: after reaching the ultimate vacuum, turn off the pump unit, let it stand for 1 hour, and the vacuum degree should not rise by more than 6Pa to be qualified.

3. Uniformity of temperature field+precision of temperature control: determines product consistency and reduces defect rate
Uniformity of temperature field and precision of temperature control are the main parameters affecting sintering quality, especially in the 2026 mass production scenario. Excessive temperature difference between workpieces can lead to uneven sintering, deformation, cracking, and a sharp increase in defect rate.
Temperature field uniformity: refers to the temperature difference at various points within the effective working area of the furnace, with an industry standard of ± 5 ℃. By 2026, high-end equipment can reach ± 3 ℃, ensuring consistent sintering of workpieces in the same batch;
Temperature control accuracy: The precision of the temperature control system, with good equipment using PLC intelligent control, has a temperature control accuracy of ± 1 ℃, which can more accurately set the heating, insulation, and cooling curves and adapt to different material and process requirements.
Key points for avoiding pitfalls
High purity ceramic fiber is preferred as the furnace material: compared to traditional graphite furnaces, ceramic fiber has better insulation, more uniform temperature field, and better energy-saving effect. In 2026, mainstream energy-saving equipment will use this material, with better energy-saving rate;
Confirm the effective temperature zone size: Some equipment is marked with a larger furnace size, but the effective uniform temperature zone is smaller. When selecting, the length, width, and height of the effective temperature zone should be determined based on the size and batch of the workpiece to avoid exceeding the uniform temperature zone after loading, which may result in defective products.

4. Atmosphere adaptability: Select gases as needed and adapt to multiple process requirements
In 2026, vacuum sintering furnaces will no longer be limited to a single vacuum environment. Most processes require inert gas protection (nitrogen, argon), and some special processes require hydrogen, ammonia, etc. The adaptability of the atmosphere directly determines the process flexibility of the equipment.
Basic requirement: For ordinary workpieces, oxidation prevention is required, which supports the introduction of nitrogen and argon gas. The gas flow rate can be adjusted to ensure a stable atmosphere inside the furnace;
Advanced requirements: Special ceramics, active metal sintering, supporting hydrogen, ammonia, etc., and equipped with gas purification system and safety alarm device (gas leakage, over temperature alarm).
Key points for avoiding pitfalls
Beware of "virtual configuration of atmosphere interface": Some low-priced equipment only reserves gas interfaces without flow control or mixing devices, which cannot stabilize the atmosphere in practice. When purchasing, it is required to demonstrate the entire process of gas inlet and flow regulation on site;

5. Energy saving and stability: reduce long-term costs and minimize downtime losses
In 2026, industrial production will significantly increase the requirements for energy efficiency and stability of equipment. As a high-energy consuming equipment, the energy-saving effect and long-term stability of vacuum sintering furnaces directly affect the long-term usage cost of users.
Energy saving: The core depends on the insulation material, heating efficiency, and heat loss rate. High purity ceramic fiber furnace with sealed furnace body can reduce heat loss, which is more energy-efficient compared to traditional equipment and can save a huge amount of electricity bills in one year;
Stability: Consider the lifespan of the heating element, the reliability of the pump unit, and the anti-interference ability of the temperature control system. High quality equipment has heating elements with a lifespan of ≥ 10000 hours, dual mechanical pumps are durable and not easily damaged, temperature control systems are resistant to voltage fluctuations and interference, and can operate continuously for a long time without any faults.
Key points for avoiding pitfalls
Don't just look at the unit price of the equipment: low-priced equipment often uses inferior insulation materials and ordinary heating elements, which have high energy consumption, short lifespan, and long-term use costs far exceeding those of high-quality equipment. By 2026, the cost-effectiveness of energy-saving equipment will be "mid to high end configuration+reasonable price";
Confirm after-sales support: Stability cannot be achieved without after-sales service. When choosing a manufacturer, priority should be given to brands with 1-year warranty, 24-hour response, and sufficient spare parts to avoid long downtime after equipment failure, which may affect production.

Summary
In 2026, when selecting a vacuum sintering furnace, there is no need to worry about complex parameters. Simply grasp the five core parameters of maximum working temperature, ultimate vacuum degree+leakage rate, temperature field uniformity+temperature control accuracy, atmosphere adaptability, energy saving+stability, and combine them with the characteristics of the material, production scale, and budget requirements to make a more accurate selection without stepping on pitfalls or wasting money.

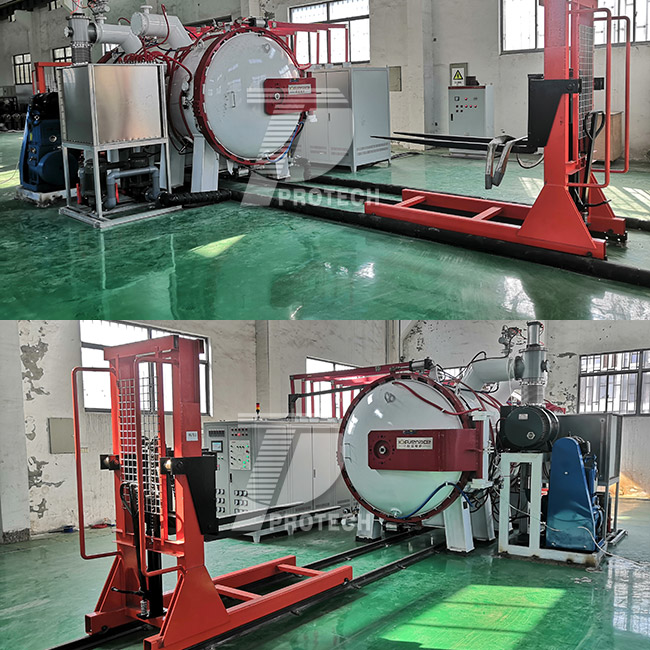

Industrial graphite vacuum atmosphere furnace sintering furnace (click on the picture to view product details)

Finally, a reminder: When purchasing, priority should be given to selecting the source manufacturer. You can conduct on-site inspections of the production workshop, equipment testing process, and view application cases in the same industry to avoid middlemen raising prices and lack of after-sales guarantee.Click to learn more customized vacuum furnaces! Or click on online customer service to learn more about product information!
