What is a muffle furnace? Where is the muffle furnace used?


Muffle furnace, also known as box furnace, is easy to operate, easy to maintain, and equipped with a controllable chimney behind the furnace. Suitable for chemical analysis of coal, coking products, and chemical raw materials. It can be used in industries and departments such as electricity, coal, papermaking, petrochemicals, cement, agriculture and animal husbandry, pharmaceutical research, teaching, etc.

The muffle furnace is divided into:electric muffle furnace,ashing furnace,crucible furnace,elevator furnace,benchtop furnace and chamber furnace.

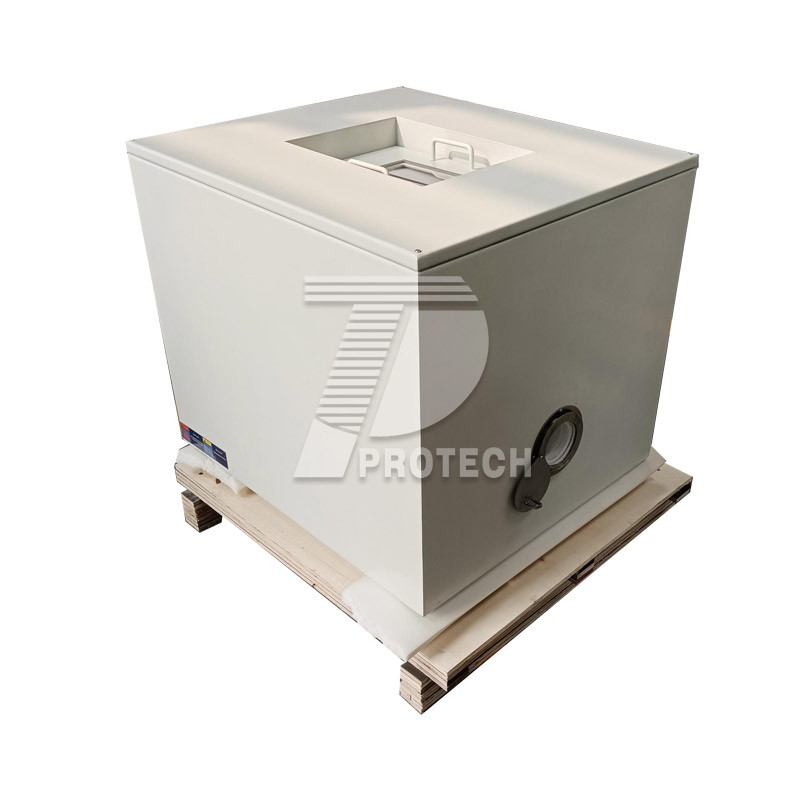

Box type pyrolysis carbonization furnace
Box type pyrolysis carbonization furnace


The control system is integrated on the furnace body. Select an intelligent program temperature controller, and adjust the temperature curve through automatic control settings. The control variable is composed of linear combinations to control the controlled object. The temperature controller receives signals detected by thermocouples and controls the power module.

To prevent hot gas leakage in the furnace, a total of two layers of sealing are designed from the inside to the outside at the furnace door. The inner layer adopts a ceramic fiber rope sealing structure, and the outer layer is sealed with a silicone rubber sealing ring. To extend its service life, a stainless steel cooling water jacket is designed at the sealing point of the furnace mouth for cooling and cooling. The door lock adopts a multi-point handwheel rotation locking mechanism, which can evenly lock all around the door at the same time. In addition, the furnace door fixing device is installed on the end face of the furnace, using a movable double hinge mechanism that can move with the free extension of the furnace, providing better sealing effect. The furnace door can be designed to open downwards, upwards, at the top, and on both sides as needed.

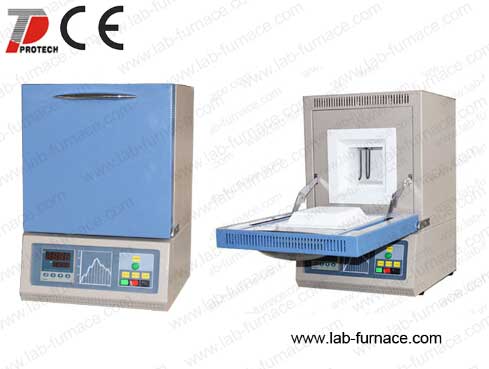

electric muffle furnace
electric muffle furnace

The top of the equipment can be designed with exhaust chimneys as needed to discharge a large amount of exhaust gas and smoke generated during the heating process.

The temperature control system adopts an intelligent PID method to adjust the temperature, and can set a 30 segment temperature rise and fall program. The maximum temperature of the furnace is 1700 ℃. This furnace has the advantages of balanced temperature field, low surface temperature, fast temperature rise and fall rate, and energy conservation. It is an ideal product for high temperature sintering, metal annealing, and quality testing in universities, research institutes, and industrial and mining enterprises.

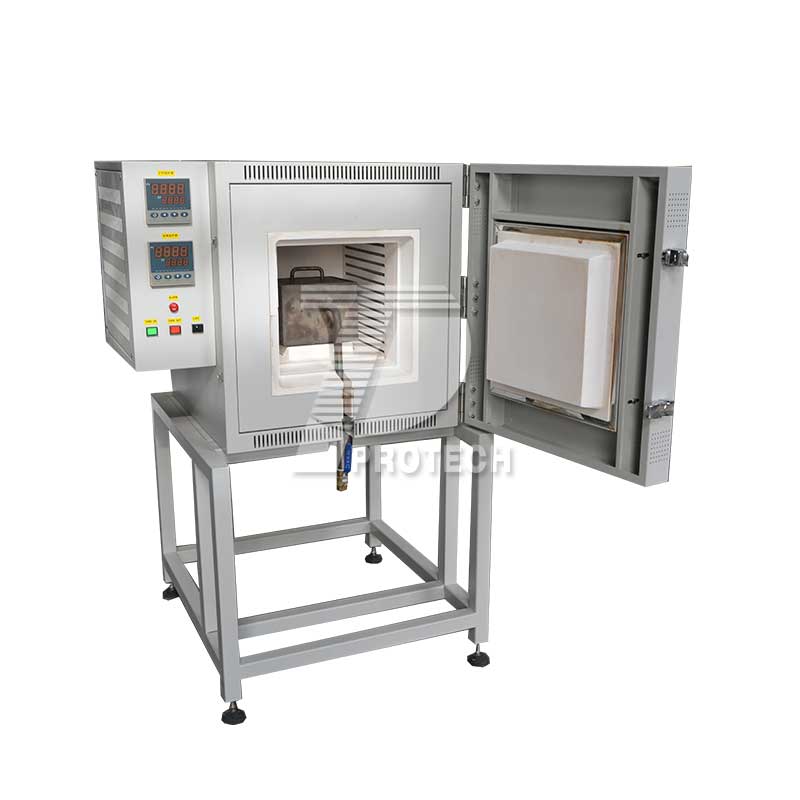

Custom Bottom Hole Box Furnace
Custom Bottom Hole Box Furnace

Advantages of muffle furnace:
(1) Simple structure, excellent technology, durable product, easy and safe operation.

(2) Low operating and maintenance costs, long service life.

(3) Adopting humanized design, beautiful and elegant, easy to operate, the outer paint layer uses spray molding high-temperature baking process. It has the ability to withstand high temperature, oxidation, acid and alkali, and has better corrosion and oxidation resistance compared to the painting process. Choose a color tone that is resistant to aging and will not cause appearance color fading due to prolonged use.

(4) The furnace body adopts a stepped assembly structure, and the furnace door and furnace door frame adopt an overall design, effectively ensuring that the furnace top does not collapse. The close cooperation between the furnace door and the furnace door frame ensures that heat energy is not easily lost and increases the service life of the furnace door part. The furnace is equipped with a furnace frame, which can achieve layered management and placement of materials according to user production needs, and the materials can be fully burned.
