As a commonly used heat treatment equipment, nitrogen muffle furnace is often used for powder sintering, workpiece heat treatment or annealing. So, what should be noted when choosing a nitrogen muffle furnace? Let's take a look below!

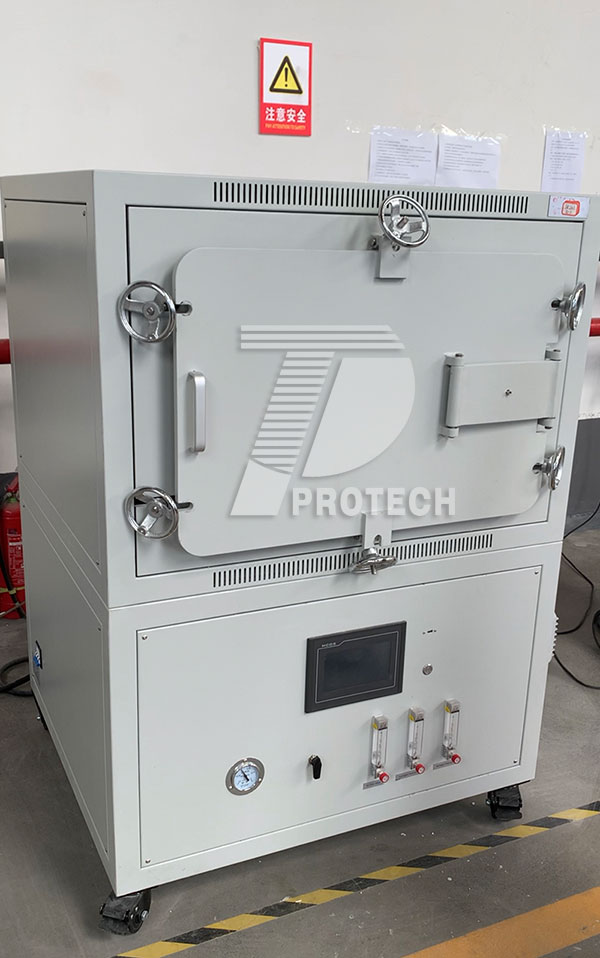

Customized small split type atmosphere muffle furnace (click on the picture to view product details)

Temperature requirements:
Working temperature: Clarify the actual temperature required for use, generally choosing the highest temperature of the muffle furnace 100-200 ℃ higher than the actual operating temperature, which can meet the process requirements and extend the service life of the muffle furnace. For example, if the process requires a temperature of 800 ℃, a muffle furnace with a maximum temperature of 900-1000 ℃ can be selected. The temperature of the nitrogen muffle furnace can reach up to 1700 ℃, and different temperature ranges can be selected according to needs.
Temperature uniformity: For experiments or production processes that require high temperature uniformity, it is necessary to choose a muffle furnace with good temperature uniformity. You can check the product manual or consult the manufacturer to understand its temperature uniformity indicators, such as ± 3 ℃, ± 5 ℃, etc.
Furnace size: Determine the furnace size based on the size, quantity, and shape of the samples to be processed. If multiple larger samples need to be processed simultaneously, a larger furnace should be selected; For elongated samples, it is necessary to consider whether the length of the furnace is sufficient; For a large number of small samples, a furnace with multiple shelves can be chosen to improve space utilization.

Atmosphere control:
Accuracy and stability: Choose a muffle furnace with a high-precision and stable atmosphere control system that can accurately control the flow rate, pressure, and composition of nitrogen to meet different experimental and production requirements. For example, some muffle furnaces use mass flow meters to control gas flow, with an accuracy of ± 1% FS.
Sealing performance: Good sealing performance is the key to ensuring stable atmosphere inside the furnace, which can prevent nitrogen leakage and external air from entering the furnace, affecting the treatment effect. You can view the sealing design and materials of furnace doors, pipeline interfaces, and other parts, such as using high-temperature resistant silicone rubber sealing rings.
Heating element: Select the appropriate heating element according to the required temperature. Generally, resistance wires can be used for temperatures below 1200 ℃, silicon carbon rods are mostly used for temperatures between 1300-1400 ℃, and silicon molybdenum rods are mostly used for temperatures between 1400-1700 ℃. The quality and arrangement of heating elements can affect heating efficiency and temperature uniformity. Therefore, a muffle furnace with evenly distributed heating elements and appropriate power can be selected.

Thermal insulation performance:
Insulation materials: High quality insulation materials can effectively reduce heat loss, lower energy consumption, and improve the efficiency of muffle furnaces. Common insulation materials include aluminum silicate fiber, rock wool, alumina ceramic fiber, etc. You can choose materials with good insulation performance and strong durability.
Furnace structure: Reasonable furnace structure design can also help improve insulation performance, such as using multi-layer insulation structures, sealed furnace doors, etc. You can view the structural design and related insulation performance indicators of the product, such as heat loss rate.

Temperature control system:
Control accuracy: High precision temperature control is crucial for ensuring the accuracy of experimental results and product quality. According to different application requirements, choose a muffle furnace with appropriate temperature control accuracy, such as ± 1 ℃, ± 2 ℃, etc.
Control method: Modern muffle furnaces commonly use intelligent control algorithms and high-precision sensors, such as PID control, adaptive PID control, or fuzzy control, to achieve more stable and accurate temperature control. At the same time, a muffle furnace with multi-stage programming function can be selected, which can preset the heating rate, insulation temperature and time, and achieve a fully automatic temperature control process.

Safety performance: The muffle furnace operates at high temperatures, and safety performance is very important. A muffle furnace with complete safety protection devices, such as over temperature protection, over-current protection, and trip protection, should be selected. In addition, it is necessary to understand the operational safety of the equipment, such as whether it has anti scald design and whether the operating interface is simple and easy to understand.

Brand and after-sales service: Choose well-known brands of muffle furnaces, which usually have good guarantees in product quality, performance, and after-sales service. You can learn about the reputation of different brands by consulting product reviews, peers, or professionals. At the same time, it is necessary to choose a brand with a comprehensive after-sales service network to ensure timely maintenance and technical support in case of equipment failure, and to provide sufficient supply of accessories.

Price and cost-effectiveness: The price of a muffle furnace varies depending on factors such as brand, specifications, and performance. When making a choice, it is important to determine an acceptable price range based on one's own budget. Don't just pursue low prices and ignore the quality and performance of the equipment. Taking into account factors such as equipment performance, quality, after-sales service, and price, evaluate the cost-effectiveness of different brands and models of muffle furnaces, and choose equipment that meets your own needs.

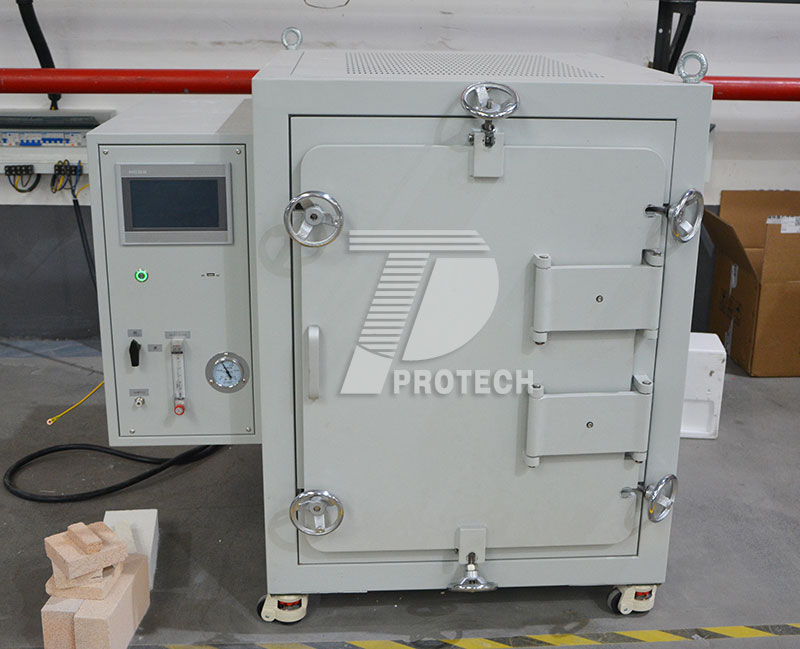

Customized furnace size and atmosphere muffle furnace (click on the picture to view product details)

In general, when choosing a nitrogen muffle furnace, it is important to pay attention to the above aspects. It is recommended to communicate your needs with relevant technical personnel or business managers before selecting, so that you can customize a nitrogen muffle furnace that is suitable for your own production or experiment!Click to learn more Atmosphere Furnaces! Or click on online customer service to learn more about product information!
